Bryozoans from the lower Silurian (Telychian) Hanchiatien Formation from southern Chongqing, South China

Published online by Cambridge University Press:  16 November 2020

Andrej Ernst
Affiliation:
Institut für Geologie, Universität Hamburg, Bundesstrasse 55, D-20146 Hamburg, Germany
Qi-Jian Li
Affiliation:
State Key Laboratory of Palaeobiology and Stratigraphy, Nanjing Institute of Geology and Paleontology, East Beijing Road 39, Nanjing 210008, China Center for Excellence in Life and Paleoenvironment, Chinese Academy of Sciences, East Beijing Road 39, Nanjing 210008, China GeoZentrum Nordbayern, Friedrich-Alexander University Erlangen-Nuremberg, D-91054 Erlangen, Germany
Min Zhang
Affiliation:
School of Earth Sciences, China University of Geosciences, 388 Lumo Road, Wuhan, Hubei 430074, China
Axel Munnecke
Affiliation:
GeoZentrum Nordbayern, Friedrich-Alexander University Erlangen-Nuremberg, D-91054 Erlangen, Germany
Rights & Permissions[Opens in a new window]

Abstract

Eight bryozoan species are described from the Hanchiatien Formation (lower Silurian, Telychian) of southern Chongqing, South China. Four species are new: the trepostomes Asperopora sinensis n. sp., Trematopora jiebeiensis n. sp., and Trematopora tenuis n. sp., and the fenestrate Moorephylloporina parvula n. sp. One species, the cystoporate Hennigopora sp. indet., is described in open nomenclature. Moorephylloporina parvula n. sp. is eurytopic, occurring in all types of facies within the bioherms. Erect Moorephylloporina Bassler, 1952, Trematopora Hall, 1852, and Leioclema Ulrich, 1882 formed pioneering communities on weakly cemented substrata, whereas encrusting Fistulipora M‘Coy, 1849, Hennigopora Bassler, 1952, and Asperopora Owen, 1969 occurred on hardgrounds and formed densely compact framestones. Robust branched Trematopora and Leioclema tend to occur out of the reef core (framework) where they could have formed reef-flank thickets in more agitated conditions. The generic composition of the studied fauna correlates with other localities in South China, and they show general paleobiogeographic relations to Siberia and Indiana, USA.

UUID http://zoobank.org/3326dd2f-7c9e-43bc-9dab-84047b274f89

Type
Articles
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyright
Copyright © The Author(s), 2020. Published by Cambridge University Press on behalf of The Paleontological Society

Introduction

Lower Silurian (Llandovery) marine sediments are distributed along a NNE-SSW trend on the South China plate, which was largely occupied by the Yangtze region in the northwestern sector. During the Llandovery, the Yangtze region has been interpreted to represent a tropical or subtropical ‘epeiric platform’ in western Gondwana (e.g., Rong and Cocks, Reference Rong and Cocks2014). In the earliest Silurian (Rhuddanian stage), black shales with flysch are dominant sediments in the Yangtze region. Due to the rapid rise of sea level, late Aeronian limestone facies became widespread in the epeiric sea of the Yangtze region, however, the early Telychian is dominated by terrigenous sediments with minor calcareous interbeds due to the expansion of the Yangtze Uplift (Rong et al., Reference Rong, Chen, Su, Ni, Zhan, Chen, Fu, Li, Fan, Landing and Johnson2003, Reference Rong, Wang and Zhang2012; Deng et al., Reference Deng, Wang and Li2012). The early Telychian rocks are represented by the Hanchiatien (or Majiaochong) Formation, usually over a kilometer in thickness, spanning from northern Guizhou to southern Sichuan provinces and the southern Chongqing District. Li et al. (Reference Li, Ernst, Munnecke, Yu, Li and Deng2018) provided an in-depth study of the meter-sized, bryozoan-bearing bioherms, described preliminarily earlier in Chinese by Li et al. (Reference Li, Wang, Li, Ma, Zhang, Deng and Cai2012). The bryozoan fauna in those bioherms have not yet been given a systematic treatment. Previous studies of the early Telychian bryozoan fauna of the Yangtze region are scarce (Hu, Reference Hu1982; Xia and Qi, Reference Xia and Qi1989), thus, a detailed description of the Hanchiatien bryozoans can provide valuable insights into the faunal composition in the region.

Telychian bryozoans from South China were previously described in several papers. Hu (Reference Hu1982) identified six bryozoan species from the Cuijiagou Formation (lower Telychian) of Guangyuan, Sichuan: Fistulipora guangyuanensis Hu, Reference Hu1982, Fistuliramus eximius Hu, Reference Hu1982, Hennigopora multilamellosa Hu, Reference Hu1982, Hennigopora sp. indet., Trematopora sinensis Hu, Reference Hu1982, and Trematopora sp. indet. From the upper Telychian Ningqiang Formation of Ningqiang (Shanxi), he identified 14 species (Hu, Reference Hu1982, Reference Hu1990): Calloporella silurica Hu, Reference Hu1982, Cyclotrypa solidoscens Hu, Reference Hu1990, Cyphotrypa undulata Hu, Reference Hu1990, Fistulipora ningqiangensis Hu, Reference Hu1990, Fistuliramus transversus Hu, Reference Hu1982, Hennigopora petaliformis Hu, Reference Hu1982, Hallopora aggregata Hu, Reference Hu1982, Homotrypa ningqiangensis Hu, Reference Hu1990, Leioclema speciosum Hu, Reference Hu1982, Leioclema sp. indet., Monotrypa shaanxiensis Hu, Reference Hu1990, Orbignyella curvata Hu, Reference Hu1982, O. globata Yang, Reference Yang1951, and O. mui Yang, Reference Yang1951.

Xia and Qi (Reference Xia and Qi1989) described four species from the lower Telychian Chenxiacun Formation of Hanshan (Anhui): Hallopora elegantula (Hall, Reference Hall1852), Hallopora hanshanensis Xia and Qi, Reference Xia and Qi1989, Hallopora raritabulata Xia and Qi, Reference Xia and Qi1989, and Trematopora reflua Xia and Qi, Reference Xia and Qi1989.

Geological settings and depositional environment

The Hanchiatien Shale was originally defined by Ting (Reference Ting1930) and was subsequently treated as the Hanchiatien Group (e.g., Yin, Reference Yin1949; Mu, Reference Mu1962). Since 1978, it has been formally named the Hanchiatien Formation (e.g., Southwest Institute of Geologic Sciences, 1978; Rong et al., Reference Rong, Chen, Wang, Geng, Wu, Deng, Chen and Xu1990), characterized by brownish to greenish shales. The shales are usually disconformably underlain by the upper Aeronian Shihniulan Formation and disconformably capped by the lower Permian Liangshan or Tongkuangxi formations (Zhan and Jin, Reference Zhan and Jin2007). In most cases, there is a unit (normally < 10 m thick) of purplish red shales known as the Lower Red Beds at the base of the Hanchiatien Formation. Stratigraphically, the Lower Red Beds are a well-known marker unit in the Yangtze region (Rong et al., Reference Rong, Wang and Zhang2012).

Although the Hanchiatien Formation is poorly fossiliferous, diagnostic chitinozoans and graptolites were reported at the top of the formation in the Northeast Guizhou: Ancyrochitina brevicollis Geng, Reference Geng1986 and Streptograptus plumosus Baily, Reference Baily, Traill and Egan1871 suggest the formation should be correlated to early Telychian (Chen, Reference Chen1986; Geng et al., Reference Geng, Qian, Ding, Wang, Wang and Cai1997). Some carbonate interbeds (or marls) occur in the Hanchiatien Formation in a few localities (e.g., Li et al., Reference Li, Wang, Li, Ma, Zhang, Deng and Cai2012). Macrofossils (e.g., brachiopods, trilobites, echinoderms, bryozoans, and corals) are abundant in some of the carbonate interbeds. To date, no systematic study has been done on the bryozoans from this formation. Here, we provide the first taxonomic description of the bryozoans from the lower Hanchiatien Formation at the border of Guizhou Province.

The Hanchiatien Formation is thought to have been deposited in a subtidal setting, mainly based on the distributional pattern of the brachiopods (Rong et al., Reference Rong, Chen, Su, Ni, Zhan, Chen, Fu, Li, Fan, Landing and Johnson2003). However, different facies of the Hanchiatien Formation display a fluctuation of marine environments (Li et al., Reference Li, Ernst, Munnecke, Yu, Li and Deng2018). The paleogeographical setting of the Hanchiatien Formation indicates a seaward ramp oriented northward. Depositional environments could have varied from place to place in the Yangtze epeiric sea.

The Jiebei section is located at the boundary between Chongqing and Guizhou provinces (Fig. 1). The stratigraphic details were given by Li et al. (Reference Li, Ernst, Munnecke, Yu, Li and Deng2018) who described the lower Hanchiatien Formation as brownish to greenish shales with minor silstones, which cap the Shihniulan Formation disconformably. In this section, there are two bioherms 85–120 m above the base of the Hanchiatien Formation. At the bottom of the second bioherm, there is a layer (~1.7 m thick) of cross-bedded, oolitic grainstone with ripples (Fig. 2). Lacking any photic-related fossils, the bryozoan bioherms demonstrate an unusual heterozoan marine community, mainly produced by internal waves (Li et al., Reference Li, Ernst, Munnecke, Yu, Li and Deng2018). Our interpretation is that the lower Hanchiatien Formation in Jiebei represents mid-outer ramp settings.

Figure 1. Location of the studied section between Chongqing and Guizhou provinces, South China: (1) region between Chongqing and Guizhou provinces; (2) detail of the shaded-box area in (1), showing the study section.

Figure 2. Lithologic column of the Jiebei section (from Li et al., Reference Li, Ernst, Munnecke, Yu, Li and Deng2018). Stratigraphic positions of reefs are indicated. Aer = Aeronian; AL = argillaceous limestone; Bou/Fra = boundstone/framestone; Ep. = epoch; Fm. = formation; Gra = grainstone; Pa/FL = packstone/floatstone; Sh/Slt = shale/siltstone; Shi = Shihniulan Formation; St. = stage.

Material and methods

All bryozoans were collected from the bioherms (Figs. 2, 3) in June 2016 by QJL. Thin sections were made in the laboratory of the GeoZentrum Nordbayern, Friedrich-Alexander University Erlangen-Nuremberg, Germany. Bryozoans were studied in thin sections using a binocular microscope under transmitted light. In total, 42 thin sections were prepared from rock samples. The spacing of structures is measured as the distance between their centers. Statistics were summarized using arithmetic means, sample standard deviations, coefficients of variation, and minimum and maximum values.

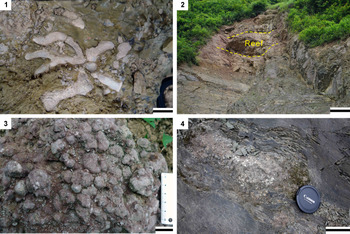

Figure 3. Field aspects of the studied section: (1) the flank facies of the second reef horizon, showing the branched bryozoan Trematopora; (2) the core facies of the second reef horizon; (3) plan view of the framestone, showing bulbous and knobby colonies of the first reef horizon; (4) the flank facies of the first reef horizon. Scale bars = 2 m (2); 8 cm (4); 2 cm (3); 1 cm (1).

Based on the genus-level occurrence databases of Silurian bryozoans (Hu, Reference Hu1982, Reference Hu1990; Xia and Qi, Reference Xia and Qi1989; Anstey et al., Reference Anstey, Pachut and Tuckey2003), pair-group cluster analysis (Euclidean similarity index) and detrended correspondence analysis were implemented with the PAST statistical package (version 2.16; Hammer et al., Reference Hammer, Harper and Ryan2001) to assess the paleobiogeographical relationship of the Telychian bryozoan fauna from the South China Block. Both cluster analysis and detrended correspondence analysis make no assumptions about the data structure, so they were suitable for our large-scale paleobiogeographical studies (Shi, Reference Shi1993). To ensure the robustness of our results, taxa that were potentially poorly known were removed from the published presence-absence dataset (see Appendix).

Repositories and institutional abbreviations

The newly studied material is deposited at the Naturmuseum Senckenberg (SMF), Frankfurt am Main, Germany. Other cited repositories are: NIGP = Nanjing Institute of Geology and Paleontology, China.

Systematic paleontology

Phylum Bryozoa Ehrenberg, Reference Ehrenberg1831
Class Stenolaemata Borg, Reference Borg1926
Superorder Palaeostomata Ma, Buttler, and Taylor, Reference Ma, Buttler, Taylor, Rosso, Wyse Jackson and Porter2014
Order Cystoporata Astrova, Reference Astrova1964
Suborder Fistuliporina Astrova, Reference Astrova1964
Family Fistuliporidae Ulrich, Reference Ulrich1882
Genus Fistulipora M‘Coy, Reference M'Coy1849

Type species

Fistulipora minor M‘Coy, Reference M'Coy1849; Carboniferous, England.

Fistulipora guangyuanensis Hu, Reference Hu1982
Figure 4.14.5; Table 1

Reference Hu1982

Fistulipora guangyuanensis Hu, p. 296, pl. 3, figs. 11, 12.

Figure 4. (1–5) Fistulipora guangyuanensis Hu, Reference Hu1982: (1) longitudinal section of a multilayered encrusting colony, SMF 60526; (2) longitudinal section of an encrusting colony, SMF 60526; (3, 4) tangential section showing autozooecial apertures and vesicles, SMF 60525; (5) tangential section showing autozooecial aperture with lunarium, SMF 60524; (6–10) Hennigopora multilamellosa Hu, Reference Hu1982: (6) longitudinal section, SMF 60570; (7) longitudinal section showing autozooecia and vesicles, SMF 60552; (8–10) tangential sections showing autozooecial apertures, acanthostyles, and vesicles: (8) SMF 60544; (9) SMF 60542; (10) SMF 60554; (11–15) Hennigopora sp. indet., SMF 60577: (11, 12) longitudinal section of an encrusting colony; (13–15) tangential sections showing autozooecial apertures, acanthostyles, and vesicles. Scale bars = 1 mm (2, 6, 11, 13); 0.5 mm (1, 3, 7, 8, 10, 12, 14, 15); 0.2 mm (4, 5, 9).

Table 1. Descriptive statistics of Fistulipora guangyuanensis Hu, Reference Hu1982. CV = coefficient of variation; Max = maximum value; Min = minimum value; N = number of measurements; SD = sample standard deviation; X = mean.

Holotype

NIGP 63771; Cuijiagou Formation, Telychian, Llandovery, lower Silurian; Sichuan Province, China.

Occurrence

Jiebei village, Chongqing, China; lower part of the Hanchiatien Formation, lower Telychian, Llandovery, lower Silurian.

Materials

SMF 60500−60538.

Remarks

Fistulipora guangyuanensis differs from Fistulipora ningqiangensis from the lower Silurian of Ningqiang, China in its smaller apertures (aperture width 0.12–0.18 mm vs. 0.17–0.25 mm [Hu, Reference Hu1990], respectively) and larger lunaria. Fistulipora guangyuanensis differs from Fistulipora ternavensis Astrova, Reference Astrova1965 from the lower−middle Silurian of Russia in its smaller autozooecial apertures (aperture width 0.12–0.18 mm vs. 0.18–0.23 mm [Astrova, Reference Astrova1965], respectively), larger lunaria, and less abundant vesicles (7–9 per autozooecial aperture vs. 8–10 vesicles [Astrova, Reference Astrova1965], respectively).

Family Xenotrypidae Utgaard, Reference Utgaard and Robison1983
Hennigopora Bassler, Reference Bassler1952

Type species

Callopora florida Hall, Reference Hall1852; Niagaran Group, Rochester Shale, Sheinwoodian, Wenlock, Silurian; Lockport, New York, USA.

Hennigopora multilamellosa Hu, Reference Hu1982
Figure 4.64.10; Table 2

Reference Hu1982

Hennigopora multilamellosa Hu, p. 295, pl. 2, figs. 4, 5.

Table 2. Descriptive statistics of Hennigopora multilamellosa Hu, Reference Hu1982. Abbreviations as for Table 1.

Holotype

NIGP 63765; Cuijiagou Formation, Telychian, Llandovery, lower Silurian; Sichuan Province, China.

Occurrence

Jiebei village, Chongqing, China; lower part of the Hanchiatien Formation, lower Telychian, Llandovery, lower Silurian.

Materials

SMF 60539−60576.

Remarks

Hennigopora multilamellosa differs from Hennigopora florida (Hall, Reference Hall1852) from the middle Silurian of New York, USA in its smaller autozooecial apertures (aperture width 0.17−0.28 mm vs. 0.28−0.35 mm [Bassler, Reference Bassler1906], respectively). Hennigopora multilamellosa differs from Hennigopora hunanensis Yang and Xia, Reference Yang and Xia1974 from the lower Silurian of China in having smaller autozooecial apertures (aperture width 0.17−0.28 mm vs. 0.20−0.30 mm [Yang and Xia, Reference Yang and Xia1974], respectively) and in its less abundant vesicles (6−11 per aperture vs. 8−13, respectively). Hennigopora multilamellosa differs from Hennigopora apta Perry and Hattin, Reference Perry and Hattin1960 from the lower Silurian of Indiana, USA in the presence of 4−7 acanthostyles per autozooecial aperture instead of 3−5 (Ernst et al., Reference Ernst, Brett and Wilson2019) in the latter species. Hennigopora multilamellosa differs from Hennigopora petaliformis from the Ningqiang Formation (upper Telychian) of Shanxi in its encrusting instead of branched erect colony and in the presence of 4−7 acanthostyles per autozooecial aperture instead of 2−4 (Hu, Reference Hu1982) in the latter species.

Hennigopora sp. indet.
Figure 4.114.15; Table 3

Occurrence

Jiebei village, Chongqing, China; lower part of the Hanchiatien Formation, lower Telychian, Llandovery, lower Silurian.

Table 3. Descriptive statistics of Hennigopora sp. indet. Abbreviations as for Table 1.

Description

Encrusting colony, 0.40−1.25 mm thick. Autozooecia originating from thin epitheca, bending in the early exozone to the colony surface, with rounded-polygonal, often petaloid, apertures due to indenting acanthostyles. Basal diaphragms rare, straight, thin. Vesicles generally large, separating autozooecia in one or two rows, 8−10 surrounding each autozooecial aperture, with rounded roofs, polygonal in tangential section. Acanthostyles abundant, relatively large, often deeply indenting autozooecial chambers, six or seven surrounding each autozooecial aperture. Autozooecial walls displaying obscure granular microstructure, 0.005−0.010 mm thick. Maculae not observed.

Materials

Single specimen, SMF 60577.

Remarks

Hennigopora sp. indet. differs from Hennigopora multilamellosa in its smaller autozooecial apertures (mean aperture width 0.15 mm vs. 0.22 mm [Table 2], respectively) and more abundant acanthostyles (mean 6.6 acanthostyles per autozooecial aperture vs. 5 [Table 2], respectively). Hennigopora sp. indet. differs from Hennigopora apta from the lower Silurian of Indiana, USA in the presence of six or seven acanthostyles per autozooecial aperture instead of 3−5 (Ernst et al., Reference Ernst, Brett and Wilson2019) in the latter species.

Order Trepostomata Ulrich, Reference Ulrich1882
Suborder Halloporina Astrova, Reference Astrova1965
Family Heterotrypidae Ulrich, Reference Ulrich1890
Genus Leioclema Ulrich, Reference Ulrich1882
[= Lioclema Ulrich, Reference Ulrich1882]

Type species

Callopora punctata Hall, Reference Hall, Hall and Whitney1858; lower Carboniferous, Iowa, USA.

Leioclema speciosum Hu, Reference Hu1982
Figure 5.15.6; Table 4

Reference Hu1982

Leioclema speciosum Hu, p. 295, pl. 2, figs. 9−13.

Reference Hu1990

Leioclema speciosum; Hu, p. 29, pl. 2, figs. 4−6.

Figure 5. (1–6) Leioclema speciosum Hu, Reference Hu1982: (1) longitudinal section of branched colony, SMF 60587; (2) longitudinal section of exozonal part of branched colony, SMF 60587; (3, 4) transverse section of branched colony, SMF 60586; (5, 6) tangential sections showing autozooecial apertures, acanthostyles, and mesozooecia, SMF 60587; (7–11) Asperopora sinensis n. sp.: (7) longitudinal section, holotype, SMF 60599; (8, 9) tangential sections showing autozooecial apertures, acanthostyles, and mesozooecia, holotype, SMF 60599; (10, 11) longitudinal section showing autozooecia and mesozooecia, paratype, SMF 60606; (12–15) Trematopora jiebeiensis n. sp.: (12, 13) branch transverse section, paratype, SMF 60644; (14, 15) branch longitudinal section, paratype, SMF 60643. Scale bars = 2 mm (1, 3, 14); 1 mm (2, 4, 12, 15), 0.5 m (5, 7–10, 13); 0.2 mm (6, 11).

Table 4. Descriptive statistics of Leioclema speciosum Hu, Reference Hu1982. Abbreviations as for Table 1.

Holotype

NIGP 63767; Cuijiagou Formation, Telychian, Llandovery, lower Silurian; Sichuan Province, China.

Occurrence

Jiebei village, Chongqing, China; lower part of the Hanchiatien Formation, lower Telychian, Llandovery, lower Silurian.

Materials

SMF 60578−60598.

Remarks

Leioclema speciosum is similar to Leioclema tuvaensis Astrova, Reference Astrova1959 from the Wenlock of Tuva (Russia), but differs in having smaller colonies and less abundant and smaller acanthostyles (acanthostyle diameter 0.030−0.045 mm vs. 0.01−0.03 mm [Astrova, Reference Astrova1959], respectively). Leioclema speciosum differs from Leioclema densiporum Owen, Reference Owen1965 from the Llandovery of England in having larger autozooecial apertures (aperture width 0.10−0.20 mm vs. 0.10−0.12 mm [Owen, Reference Owen1965], respectively).

Genus Asperopora Owen, Reference Owen1969

Type species

Callopora aspera Hall, Reference Hall1852; Silurian (Wenlock), New York, USA.

Asperopora sinensis new species
Figure 5.75.11; Table 5

Type specimens

Holotype, SMF 60599; paratypes, SMF 60600−60635.

Table 5. Descriptive statistics of Asperopora sinensis n. sp. Abbreviations as for Table 1.

Diagnosis

Thin encrusting colonies; endozones short; autozooecial apertures rounded-polygonal; basal diaphragms few to common in exozone; one or two acanthostyles surrounding each autozooecial aperture; 6−10 mesozooecia surrounding each autozooecial aperture; maculae absent.

Occurrence

Jiebei village, Chongqing, China; lower part of the Hanchiatien Formation, lower Telychian, Llandovery, lower Silurian.

Description

Encrusting colonies, 0.4−1.0 mm thick. Autozooecia budding from a thin epitheca, growing a short distance parallel to the substratum, then bending sharply to the colony surface. Epitheca 0.003−0.005 mm thick. Autozooecial apertures rounded-polygonal. Basal diaphragms common in exozone, thin, slightly deflected orally. Acanthostyles common, one or two surrounding each autozooecial aperture, small, originating in the outer exozone, having distinct calcite cores and dark, laminated sheaths, indenting into autozooecial space. Mesozooecia abundant, 6−10 surrounding each autozooecial aperture, rounded-polygonal in transverse section, originating at the base of exozone, slightly beaded. Autozooecial walls granular, 0.003−0.005 mm thick in endozone, laminated, merged, 0.02−0.03 mm thick in exozone. Maculae not observed.

Etymology

The species is named after its occurrence in China.

Remarks

Asperopora sinensis n. sp. differs from Asperopora bellum (Pushkin, Reference Pushkin, Akimets and Govetskii1976) from the middle Silurian of Belarus and Norway in its slightly smaller autozooecial apertures (mean aperture width 0.11 mm vs. 0.14 mm [Pushkin, Reference Pushkin, Akimets and Govetskii1976], respectively) and in its more abundant mesozooecia (mean 8.12 per aperture vs. 7.4 [Pushkin, Reference Pushkin, Akimets and Govetskii1976], respectively). Asperopora sinensis n. sp. differs from Asperopora aspera (Hall, Reference Hall1852) from the middle Silurian of North America and Europe in its less abundant and larger mesozooecia (mean 8.12 per aperture vs. 10.5 [Ernst et al., Reference Ernst, Munnecke and Oswald2015], respectively), and in having one or two acanthostyles around each autozooecial aperture instead of 1−5 (Ernst et al., Reference Ernst, Munnecke and Oswald2015) in the latter species.

Family Trematoporidae Miller, Reference Miller1889
Genus Trematopora Hall, Reference Hall1852

Type species

Trematopora tuberculosa Hall, Reference Hall1852; lower Silurian (Niagaran), North America.

Trematopora jiebeiensis new species
Figures 5.125.15, 6.16.3; Table 6

Type specimens

Holotype, SMF 60636; paratypes, SMF 60637−60660.

Figure 6. (1–3) Trematopora jiebeiensis n. sp.: (1) branch longitudinal section showing secondary overgrowth, autozooecia, mesozooecia, and acanthostyles, holotype, SMF 60636; (2, 3) tangential sections showing autozooecial apertures, acanthostyles, and mesozooecia, holotype, SMF 60636; (4–9) Trematopora tenuis n. sp., holotype, SMF 60661: (4, 5) oblique section of a branch; (6) branch transverse section; (7, 8) longitudinal section of a branch showing autozooecia and acanthostyles; (9) tangential sections showing autozooecial apertures, acanthostyles, and mesozooecia. Scale bars = 1 mm (1, 4, 6–8); 0.5 mm (2, 3, 5); 0.2 mm (9).

Table 6. Descriptive statistics of Trematopora jiebeiensis n. sp. Abbreviations as for Table 1.

Diagnosis

Branched colonies with distinct exozones; autozooecial apertures rounded to slightly angular; basal diaphragms rare; mesozooecia beaded, 5−8 surrounding each autozooecial aperture; acanthostyles moderately large, 2−6 surrounding each autozooecial aperture, originating in endozone; maculae absent.

Occurrence

Jiebei village, Chongqing, China; lower part of the Hanchiatien Formation, lower Telychian, Llandovery, lower Silurian.

Description

Ramose branched colonies; branch width 2.25−5.20 mm. Exozone distinct, 0.45−1.13 mm wide; endozone 1.35−3.26 mm wide. Secondary overgrowths common. Autozooecia long, polygonal in cross section in endozone, bending sharply in exozone, with rounded to slightly angular apertures. Basal diaphragms rare, thin, concentrated mainly in the transition between exo- and endozones. Mesozooecia abundant, originating at base of exozone, beaded in places of development of diaphragms, 5−8 surrounding each autozooecial aperture. Diaphragms in mesozooecia straight, abundant. Acanthostyles moderately large, prominent, having distinct hyaline cores, 2−6 surrounding each autozooecial aperture, originating in endozone. Autozooecial walls 0.003−0.005 mm thick, granular-prismatic in endozone, showing reversed V-shaped lamination, integrated with locally visible dark border between zooecia, 0.02−0.06 mm thick in exozone. Maculae absent.

Etymology

The species is named after the type locality, the village of Jiebei in China.

Remarks

Trematopora jiebeiensis n. sp. differs from Trematopora sinensis from the lower Silurian (Llandovery) of China in having smaller autozooecial apertures (aperture width 0.07−0.14 mm vs. 0.30−0.36 mm [Hu, Reference Hu1982], respectively). Trematopora jiebeiensis n. sp. differs from Trematopora whitfieldi Ulrich, Reference Ulrich1883 from the Silurian (Wenlock) of North America in its smaller autozooecial apertures (mean aperture width 0.11 mm vs. 0.14 mm [Ulrich, Reference Ulrich1883], respectively).

Trematopora tenuis new species
Figure 6.46.9; Table 7

Type specimens

Holotype, SMF 60661; SMF 60662−60667.

Table 7. Descriptive statistics of Trematopora tenuis n. sp. Abbreviations as for Table 1.

Diagnosis

Thin, branched colonies with distinct exozones; autozooecial apertures rounded to slightly angular; basal diaphragms rare; mesozooecia common, slightly beaded; acanthostyles moderately large, 6−8 surrounding each autozooecial aperture, originating in endozone; maculae absent.

Occurrence

Jiebei village, Chongqing, China; lower part of the Hanchiatien Formation, lower Telychian, Llandovery, lower Silurian.

Description

Ramose branched colonies; branch width 0.72−1.88 mm. Exozone distinct, 0.20−0.38 mm wide; endozone 0.32−1.12 mm wide. Secondary overgrowths not observed. Autozooecia long, polygonal in cross section in endozone, bending sharply in exozone, with rounded to slightly angular apertures. Basal diaphragms rare, thin, concentrated mainly in the transition between exo- and endozones. Mesozooecia common, originating at base of exozone, slightly beaded in places of development of diaphragms. Diaphragms in mesozooecia straight, abundant. Acanthostyles moderately large, prominent, having distinct hyaline cores, 6−8 surrounding each autozooecial aperture, originating at the base of exozone. Autozooecial walls 0.003−0.005 mm thick, granular-prismatic in endozone, showing reversed V-shaped lamination, integrated with locally visible, dark border between zooecia, 0.003−0.005 mm thick in exozone. Maculae absent.

Etymology

The species is named because of its thin branches (Latin tenuis = thin, narrow).

Remarks

Trematopora tenuis n. sp. is similar to Trematopora cristata Kopajevitch, Reference Kopajevitch1984 from the Wenlock of Mongolia, but differs from the latter in having more abundant acanthostyles (6−8 per autozooecial aperture vs. 1−4 [Kopajevitch, Reference Kopajevitch1984], respectively). Trematopora tenuis n. sp. differs from Trematopora minima Ernst in Suttner and Ernst, Reference Suttner and Ernst2007 from the Upper Ordovician of India in its less abundant mesozooecia and more abundant acanthostyles (6−8 per autozooecial aperture vs. four or five [Suttner and Ernst, Reference Suttner and Ernst2007], respectively).

Order Fenestrata Elias and Condra, Reference Elias and Condra1957
Suborder Fenestellina Astrova and Morozova, Reference Astrova and Morozova1956
Family Fenestellidae King, Reference King1849
Genus Moorephylloporina Bassler, Reference Bassler1952

Type species

Moorephylloporina typica Bassler, Reference Bassler1952; Middle Ordovician, Black Riverian, Virginia, USA.

Moorephylloporina parvula new species
Figure 7.17.8; Table 8

Type specimens

Holotype, SMF 60668; paratypes SMF 60669−60710.

Figure 7. Moorephylloporina parvula n. sp.: (1–4) tangential section showing autozooecial apertures and keel nodes, holotype, SMF 60668; (5) midtangential section showing autozooecial chambers, paratype, SMF 60708; (6) tangential section showing autozooecial apertures and nodes, paratype, SMF 60708; (7) transverse section showing autozooecial chamber, paratype, SMF 60682; (8) transverse section showing autozooecial chambers, paratype, SMF 60702. Scale bars = 1 mm (1); 0.5 mm (2–5); 0.2 mm (6–8).

Table 8. Descriptive statistics of Moorephylloporina parvula n. sp. Abbreviations as for Table 1.

Diagnosis

Reticulate colonies with straight branches; dissepiments short, wide; fenestrules small, oval; autozooecial apertures rounded, two or three spaced per fenestrule length; keel wide, low, with high and moderately large nodes; hemisepta lacking; diaphragms present; vesicular skeleton present.

Occurrence

Jiebei village, Chongqing, China; lower part of the Hanchiatien Formation, lower Telychian, Llandovery, lower Silurian.

Description

Reticulate colonies with straight, frequently bifurcating branches, joined by short, wide dissepiments. Autozooecia arranged in two alternating rows on branches, having circular apertures with moderately high peristomes, two or three spaced per length of a fenestrule. Peristomes containing 10−12 nodes. Peristomal nodes 0.015−0.020 mm in diameter. Fenestrules oval. Keels wide, low. Keel nodes high, with moderate diameter and spacing, rounded to oval in their cross sections. Microacanthostyles on the reverse colony surface abundant, regularly spaced in longitudinal rows, 0.010−0.015 mm in diameter.

Interior description.—Autozooecia long, rectangular in the mid-tangential section, with well developed vestibule; axial wall straight; aperture positioned at distal end of chamber. Hemisepta absent. Diaphragms present. Internal granular skeleton thin, continuous, with obverse keel, nodes, peristome, and across dissepiments. Outer lamellar skeleton thin to moderately thick. Vesicular skeleton present.

Etymology

The species name refers to the small size of this species (Latin parvulus = very small).

Remarks

Moorephylloporina parvula n. sp. is similar to Moorephylloporina delicata (Nekhoroshev, Reference Nekhoroshev1961) from the Llandovery of Siberia. The new species differs in its wider branches (branch width 0.19−0.29 mm vs. 0.16−0.19 mm [Nekhoroshev, Reference Nekhoroshev1961], respectively) and smaller fenestrules (fenestrule width 0.16−0.26 mm vs. 0.30−0.40 mm [Nekhoroshev, Reference Nekhoroshev1961], respectively; fenestrule length 0.34−0.46 mm vs. 0.58−0.60 mm [Nekhoroshev, Reference Nekhoroshev1961], respectively).

Discussion

In the Jiebei section, bryozoans occur exclusively in the carbonate interbeds in the lower part of the Hanchiatien Formation (Figs. 2, 3). Characterized by reticular colonies, Moorephylloporina can be found in all types of facies in these meter-scale reefs, indicating its eurytopic nature. However, such distribution could be also explained by taphonomic processes and postmortem transportation of Moorephylloporina fragments from reef areas inhabited by this species within the whole reef. Although the abundance of Moorephylloporina is relatively low in the framestone (Fig. 3.3) of the reefs, these fenestellid bryozoans provide hard substrata for Fistulipora and Asperopora. In contrast, branched Trematopora and Leioclema tend to occur out of the reef core (framework) (Fig. 3.1). Like Champlainopora (Atactotoechus) chazyensis Ross, Reference Ross1963 in some Ordovician reefs (e.g., Cuffey et al., Reference Cuffey, Robison and Mehrtens2002), Trematopora and Leioclema might have formed reef-flank thickets developed under more agitated conditions. Moorephylloporina, Trematopora, and Leioclema represent pioneering bryozoans that were able to grow on weakly lithified substrata. In contrast, encrusting Fistulipora, Hennigopora, and Asperopora relied more on hardgrounds and occupied a large proportion in the reefs, layered on top of one another and so forming densely compact framestones (Li et al., Reference Li, Ernst, Munnecke, Yu, Li and Deng2018) that represent a typical crust-mound stage from an evolutionary ecological perspective (Cuffey, Reference Cuffey2006).

The Telychian of the Upper Yangtze Platform is characterized by terrigenous sediments (e.g., Rong et al., Reference Rong, Wang and Zhang2012), and bryozoans are mostly reported from interbedded argillaceous limestones (or marls) (Hu, Reference Hu1982, Reference Hu1990; Xia and Qi, Reference Xia and Qi1989), probably related to internal-wave deposits (Li et al., Reference Li, Ernst, Munnecke, Yu, Li and Deng2018) in some cases. Systematic studies of Telychian bryozoans are limited compared to other macrofossil groups, e.g., brachiopods, trilobites, and corals. Here, we provide the first detailed comparison of the composition of the bryozoan fauna (Table 9). In the South China block, Asperopora and Moorephylloporina are only reported from the Hanchiatien Formation, whereas Fistulipora and Trematopora are widely distributed across the platform during the early Telychian, recorded in all three studied sections in the literature. Apart from the Jiebei section, Hennigopora and Leioclema have been documented from one other Telychian section, indicating a moderately wide paleogeographic distribution. It is worth noting that bryozoans in some sections are not diverse, or else have been inadequately sampled. Further studies should be carried out to confirm their distributional patterns on the platform.

Table 9. Distribution of bryozoan species in the Telychian localities of South China.

Bryozoans from the Jiebei section belong to genera with predominantly cosmopolitan distributions during the Telychian. Outside of South China, representatives of the genus Fistulipora are known from North America and Siberia. Species of Hennigopora are known from the USA (New York, Indiana) and Siberia. The genus Leioclema is known from North America, Europe (England, Ukraine), and Tuva (Russia). Records of Asperopora are known from North America (New York, Canada), Sweden (Gotland), and Siberia, whereas Trematopora is known from North America and China. The fenestrate genus Moorephylloporina is largely restricted to the Ordovician, except for two species from the lower Silurian (Llandovery) of Siberia, and the new species described here. It disappeared during the lower Silurian.

The early Silurian was a period of exceptional cosmopolitanism for benthic species with dispersive larvae (e.g., Cocks, Reference Cocks2001). Bryozoans, as in other groups of benthic organisms, showed low provinciality (e.g., Tuckey, Reference Tuckey, McKerrow and Scotese1990; Anstey et al., Reference Anstey, Pachut and Tuckey2003; McCoy and Anstey, Reference McCoy and Anstey2010; Buttler et al., Reference Buttler, Wyse Jackson, Ernst, McKinney, Harper and Servais2013). The cluster analysis and detrended correspondence analysis (Fig. 8) reveal distinct clustering of South China with Siberia and Indiana (USA). Bryozoan faunas of Estonia seem to be close to those of New York (USA), whereas Gotland (Sweden) clusters with Anticosti (Canada) and Michigan (USA). These results agree with existing paleogeographical reconstructions for the early Silurian (e.g., Cocks and Torsvik, Reference Cocks and Torsvik2002). However, most existing references for bryozoans in the lower Silurian need critical reassessment, because the descriptions are often far from present-day standards.

Figure 8. Paleobiogeographical affinities of Jiebei bryozoan association and selected Telychian bryozoan faunas (data from Anstey et al., Reference Anstey, Pachut and Tuckey2003, updated 2020): (1) the hierarchical relationship based on pair-group cluster analysis (Euclidean similarity index); (2) detrended correspondence analysis. All analyses performed using PAST (Hammer et al., Reference Hammer, Harper and Ryan2001).

Acknowledgments

This study was supported by the Youth Innovation Promotion Association of the Chinese Academy of Sciences (CAS) no. 2019310, the Natural Science Foundation of China (NSFC) no. 41702003, and CAS no. XDB26000000 and XDA19050101. We are grateful to B. Leipner-Mata (GeoZentrum Nordbayern, Erlangen, Germany) for the preparation of thin sections and to S. Yu (Nanjing Institute of Geology and Palaeontology) for assistance in the field. This study is a contribution to the International Geoscience Projects (IGCP) 653 and 668. QJL is thankful for his invitation as a guest researcher at GeoZentrum Nordbayern. P.D. Taylor (London) and H.A. Nakrem (Oslo) are thanked for their helpful and constructive reviews of the manuscript.

Supplementary material

To view supplementary material for this article, please visit https://doi.org/10.1017/jpa.2020.86

References

Anstey, R.L., Pachut, J.F., and Tuckey, M.E., 2003, Patterns of bryozoan endemism through the Ordovician-Silurian transition: Paleobiology, v. 29, p. 305328. doi:10.1666/0094-8373(2003)029<0305:POBETT>2.0.CO;2.2.0.CO;2>CrossRefGoogle Scholar
Astrova, G.G., 1959, Silurian bryozoans of the central and western Tuva: Trudy Paleontologicheskogo Instituta Akademii Nauk SSSR, v. 79, p. 174. [in Russian]Google Scholar
Astrova, G.G., 1960, Silurian fistuliporids from northern territories of USSR: Trudy Komy Filiala Akademii Nauk SSSR, Syktyvkar, v. 1, 352376. [in Russian]Google Scholar
Astrova, G.G., 1964, A new order of the Paleozoic Bryozoa: Paleontologicheskii Zhurnal, no. 2, p. 2231. [in Russian]Google Scholar
Astrova, G.G., 1965, Morphology, history of development and system of the Ordovician and Silurian Bryozoa: Trudy Paleontologicheskogo Instituta Akademii Nauk SSSR, v. 106, p. 1432. [in Russian]Google Scholar
Astrova, G.G., and Morozova, I.P., 1956, On the systematics of the bryozoans of the order Cryptostomata: Doklady Akademii Nauk SSSR, v. 110, p. 661664. [in Russian]Google Scholar
Baily, W.H., 1871, Palaeontological remarks in Traill, W.A. and Egan, F.W. (eds.), Explanatory Memoir to Accompany Sheets 49, 50 and Part of 61 of the Maps of the Geological Survey of Ireland Including the Country Around Downpatrick, and the Shores of Dundrum Bay and Strangford Lough, County of Down: Dublin, Ireland, Alexander Thom, p. 2223.Google Scholar
Bassler, R.S., 1906, The bryozoan fauna of the Rochester Shale: United States Geological Survey Bulletin, v. 292, p. 1137.Google Scholar
Bassler, R.S., 1911a, Corynotrypa, a new genus of tubuliporoid Bryozoa: Proceedings of the United States National Museum, v. 39, 497527.CrossRefGoogle Scholar
Bassler, R.S., 1911b, The early Paleozoic Bryozoa of the Baltic Provinces: Bulletin of the Smithsonian Institution, United States National Museum, v. 77, p. 1382.Google Scholar
Bassler, R. S., 1936, Nomenclatorial notes on fossil and Recent Bryozoa: Journal of the Washington Academy of Science, v. 26, p. 156162.Google Scholar
Bassler, R.S., 1952, Taxonomic notes on genera of fossil and Recent Bryozoa: Journal of the Washington Academy of Sciences, v. 42, p. 381385.Google Scholar
Borg, F., 1926, Studies on Recent cyclostomatous Bryozoa: Zoologiska Bidrag från Uppsala, v. 10, p. 181507.Google Scholar
Buttler, C.J., Wyse Jackson, P.N., Ernst, A., and McKinney, F.K., 2013, A review of the early Palaeozoic biogeography of bryozoans, in Harper, D., and Servais, T., eds., Early Palaeozoic Palaeobiogeography and Palaeogeography: Geological Society of London, Memoirs, v. 38, p. 145155, doi:10.1144/M38.12.Google Scholar
Chen, X., 1986, On Streptograptus and its paleoautecology, in Palaeontological Society of China, ed., Selected Papers from the 13th and 14th Annual Conventions of the Palaeontological Society of China: Hefei, China, Anhui Science and Technology Publishing House, p. 115137. [in Chinese]Google Scholar
Cocks, L.R.M., 2001, Ordovician and Silurian global geography: Journal of the Geological Society, v. 158, p. 197210.CrossRefGoogle Scholar
Cocks, L.R.M., and Torsvik, T.H., 2002, Earth geography from 500 to 400 million years ago: A faunal and palaeomagnetic review: Journal of the Geological Society, London, v. 159, p. 631644. doi:10.1144/0016-764901-118.CrossRefGoogle Scholar
Cuffey, R.J., 2006, Bryozoan-built reef mounds—The overview from integrating recentstudies with previous investigation: Courier Forschungsinstitut Senckenberg, v. 257, p. 3548.Google Scholar
Cuffey, R.J., Robison, M.R., and Mehrtens, C.J., 2002, Garden Island—The earliest (and first-illustrated) bryozoan reef in North America (basal Chazyan, early Middle Ordovician; Lake Champlain, New York–Vermont): Geological Society of America, Abstracts with Program, v. 34, p. A–72.Google Scholar
Deng, X.J., Wang, G., and Li, Y., 2012, Sedimentary characteristics at the top of the Shihniulan Formation (late Aeronian, Silurian) and their implications for identification of the shore line in Tongzi, northern Guizhou: Journal of Stratigraphy, v. 36, p. 718722 [in Chinese].Google Scholar
Duncan, H., 1939, Trepostomatous Bryozoa from the Traverse Group of Michigan: Contributions from the Museum of Paleontology, University of Michigan, v. 5, 171270.Google Scholar
Dzik, J., 1981, Evolutionary relationships of the early Paleozoic cyclostomatous Bryozoa: Palaeontology, v. 24, p. 827862.Google Scholar
Ehrenberg, C.G., 1831, Symbolae Physicae, seu Icones et Descptiones Corporum Naturalium Novorum aut Minus Cognitorum, quae ex Itineribus per Libyam, Aegiptum, Nubiam, Dongalaam, Syriam, Arabiam et Habessiniam, Studia Annis 1820–25, Redirent, Pars Zoologica, 4, Animalia Evertebrata exclusis Insectis: Berlin, 10 pls.Google Scholar
Eichwald, E., 1855, Beitrag zur geographischen Verbreitung der fossilen Tiere Russlands: Bulletin de la Société des Naturelles de Moscovian, v. 28, p. 433466.Google Scholar
Elias, M.K., and Condra, G.E., 1957, Fenestella from the Permian of West Texas: Memoirs of the Geological Society of America, v. 70, p. 1158.CrossRefGoogle Scholar
Ernst, A., Munnecke, A., and Oswald, I., 2015, Exceptional bryozoan assemblage of a microbial-dominated reef from the early Wenlock of Gotland, Sweden. GFF, v. 137, p. 102–125. doi:10.1080/11035897.2014.997543.CrossRefGoogle Scholar
Ernst, A., Brett, C.E., and Wilson, M.A., 2019, Bryozoan fauna from the Reynales Formation (lower Silurian, Aeronian) of New York, USA: Journal of Paleontology, v. 93, p. 628657. doi:10.1017/jpa.2018.101.CrossRefGoogle Scholar
Foerste, A.F., 1887, The Clinton Group of Ohio, Part 3: Bulletin of the Scientific Laboratories of Denison University, v. 2, 149176.Google Scholar
Foerste, A.F., 1895, Fossils of the Clinton Group of Ohio and Indiana: Report of the Geological Survey of Ohio, v. 7, p. 516601.Google Scholar
Geng, L.Y., 1986, Lower Silurian chitinozoans from Bayu of Daozhen, Guizhou and Dazhongba of Yichang, Hubei: Acta Palaeontologica Sinica, v. 25, p. 117128. [in Chinese with English summary]Google Scholar
Geng, L.Y, Qian, Z.S., Ding, L.S., Wang, Y., Wang, G.X., and Cai, X.Y., 1997, Silurian chitinozoans from the Yangtze Region: Palaeoworld, v. 8, p. 1152.Google Scholar
Hall, J., 1847, Palaeontology of New York. Volume 1, Containing Descriptions of the Organic Remains of the Lower Division of the New-York System: Albany, New York, D. Appleton & Company, 337 p.Google Scholar
Hall, J., 1851, New genera of fossil corals from the report of James Hall, On the Palaeontology of New York: American Journal of Science and Arts, v. 11, p. 398401.Google Scholar
Hall, J., 1852, Palaeontology of New York, Volume 2, Organic Remains of the Lower Middle Division of the New York System: New York Geological Survey, Natural History of New York, v. 6, p. 4052, 144–173.Google Scholar
Hall, J., 1858, Paleontology of Iowa, in Hall, J., and Whitney, J.D., Report of the Geological Survey of the State of Iowa, Embracing the Results of Investigations Made During Portions of the Years 1855, 56 & 57: Palaeontology, Volume 1, Part 2: Des Moines, Legislature of Iowa, p. 473724.Google Scholar
Hall, J., 1885, On the mode of growth and relations of the Fenestellidae: Report of the State Geologist of New York for the Year 1884, p. 35–45.Google Scholar
Hall, J., 1886, Bryozoa of the Upper Helderberg Group; plates and explanations: State Geologist of New York, Annual Report for 1885, p. 25–53.Google Scholar
Hammer, Ø., Harper, D.A.T., and Ryan, P.D., 2001, PAST: Paleontological statistics software package for education and data analysis: Palaeontologia Electronica, v. 4, p. 19.Google Scholar
Hu, Z.X., 1982, Silurian Bryozoa from northern Sichuan and southern Shaanxi: Acta Palaeontologica Sinica, v. 21, p. 290301. [in Chinese]Google Scholar
Hu, Z.X., 1990, Telychian (Silurian) Bryozoa from Ningqiang, S. Shaanxi: Acta Palaeontologica Sinica, v. 29, p. 600611. [in Chinese]Google Scholar
King, W., 1849, On some families and genera of corals: Annals and Magazine of Natural History, v. 2, p. 388390.CrossRefGoogle Scholar
Kopajevich, G.V., 1975, Silurian Bryozoa of Estonia and Podolia (Cryptostomata and Rhabdomesonata): Trudy Paleontologischeskogo Instituta Akademiya Nauk SSSR, v. 151, p. 5153. [in Russian]Google Scholar
Kopajevitch, G.V., 1984, Atlas of Bryozoa from the Ordovician, Silurian and Devonian of Mongolia: Trudy Sovmestnoi Sovetsko-Mongolsoi Paleontologischeskoi Ekspeditsii, v. 22, p. 1164. [in Russian]Google Scholar
Li, Q.J., Wang, Y.Y., Li, Y., Ma, J.Y., Zhang, Y.Y., Deng, X.J., and Cai, X.Y., 2012, Muddy sediments constrain reef-bank growth in the Hanjiadian Formation, Tongzi, northern Guizhou, SW China: Acta Palaeontologica Sinica, v. 51, p. 127136. [in Chinese]Google Scholar
Li, Q.J., Ernst, A., Munnecke, A., Yu, S., Li, Y., and Deng, X.J., 2018, Early Silurian (Telychian) bryozoan reefs in the epeiric sea of South China: Are heterotroph metazoan buildups promoted by internal waves?: Sedimentary Geology, v. 376, p. 5059. doi:10.1016/j.sedgeo.2018.07.008.CrossRefGoogle Scholar
Lonsdale, W., 1839, Corals, in Murchison, R.I., ed., The Silurian System, Part 2, Organic Remains: London, John Murray, p. 675694.Google Scholar
Ma, J.-Y., Buttler, C.J., and Taylor, P.D., 2014, Cladistic analysis of the ‘trepostome’ suborder Esthonioporina and the systematics of Palaeozoic bryozoans, in Rosso, A., Wyse Jackson, P.N., and Porter, J.S., eds., Bryozoan Studies 2013: Studi Trentini di Scienze Naturali, v. 94, p. 153161.Google Scholar
McCoy, V.E., and Anstey, R.L., 2010, Biogeographic associations of Silurian bryozoan genera in North America, Baltica and Siberia: Palaeogeography, Palaeoclimatology, Palaeoecology, v. 297, p. 420427. doi:10.1016/j.palaeo.2010.08.025.CrossRefGoogle Scholar
M'Coy, F., 1849, On some new genera and species of Palaeozoic corals and Foraminifera: Annals and Magazine of Natural History, v. 2, p. 119136.CrossRefGoogle Scholar
Miller, S.A., 1889, North American Geology and Paleontology for the Use of Amateurs, Students and Scientists: Cincinnati, Ohio, Western Methodist Book Concern, 664 p.CrossRefGoogle Scholar
Miller, T.G., 1962, Some Wenlockian fenestrate Bryozoa: Palaeontology, v. 5, p. 540549.Google Scholar
Mu, E.Z., 1962, Silurian System of China: Beijing, Science Press, 95 p. [in Chinese]Google Scholar
Nekhoroshev, V.P., 1956, Class Bryozoa: Trudy VSEGEI, n. ser., v. 12, p. 4249. [in Russian]Google Scholar
Nekhoroshev, V.P., 1961, Ordovician and Silurian bryozoans of the Siberian Plate: Trudy VSEGEI, new ser., v. 41, p. 1246. [in Russian]Google Scholar
Nicholson, H.A., 1879, On the Structure and Affinities of the ‘Tabulate Corals’ of the Paleozoic Period, with Critical Descriptions of Illustrative Species: Edinburgh, William Blackwood and Sons, 342 p.Google Scholar
Orbigny, A. d’, 1849, Description des quelques genres nouveaux de mollusques bryozoaires: Revue et Magazine de Zoologie Pure et Appliquée, v. (2) 1, p. 499504.Google Scholar
Owen, D.E., 1965, Silurian Polyzoa from Benthall Edge, Shropshire: Bulletin of the British Museum (Natural History), Geology, v. 10, p. 95117.Google Scholar
Owen, D.E., 1969, Wenlockian Bryozoa from Dudley, Niagara, and Gotland and their palaeogeographic implications: Palaeontology, v. 12, p. 621636.Google Scholar
Perry, T.G., and Hattin, D.E., 1960, Osgood (Niagaran) bryozoans from the type area [Indiana]: Journal of Paleontology, v. 34, p. 695710.Google Scholar
Prout, H. A., 1859, Third series of descriptions of Bryozoa from the Palaeozoic rocks of the western states and territories: Transactions of the St. Louis Academy of Science, v. 1, p. 443452.Google Scholar
Pushkin, V.I., 1976, New species of Ordovician and Silurian Bryozoa of the Brest Depression, in Akimets, V.S., and Govetskii, G.I., eds., New Species of the Fossil Plants and Animals of Belarus: Minsk, Belarus, Nauka i Tekhnika, p. 340. [in Russian]Google Scholar
Pushkin, V. I., 1977, New genus of Ordovician bryozoan: Paleontologicheskii Zhurnal, 1977, no. 4, p. 6772. [in Russian]Google Scholar
Rong, J.Y., and Cocks, L.R.M., 2014, Global diversity and endemism in early Silurian (Aeronian) brachiopods: Lethaia, v. 47, p. 77106. doi:10.1111/let.12042.CrossRefGoogle Scholar
Rong, J.Y., Chen, X., Wang, C.Y., Geng, L.Y., Wu, H.J., Deng, Z.Q., Chen, T.E., and Xu, J.T., 1990, Some problems concerning the correlation of the Silurian rocks in South China: Journal of Stratigraphy, v. 14, p. 161177. [in Chinese]Google Scholar
Rong, J.Y., Chen, X., Su, Y.Z., Ni, Y.N., Zhan, R.B., Chen, T.E., Fu, L.P., Li, R.Y., and Fan, J.X., 2003, Silurian paleogeography of China: in Landing, E., and Johnson, M.E., eds., Silurian Lands and Seas: Paleogeography Outside of Laurentia: New York, New York State Museum, p. 243298.Google Scholar
Rong, J.Y., Wang, Y., and Zhang, X.L., 2012, Tracking shallow marine red beds through geological time as exemplified by the lower Telychian (Silurian) in the Upper Yangtze Region, South China: Science China Earth Sciences, v. 55, p. 699713. doi:10.1007/s11430-012-4376-5.CrossRefGoogle Scholar
Ross, J.R.P., 1963, Chazyan (Ordovician) leptotrypellid and atactotoechid Bryozoa: Palaeontology, v. 5, p. 727739.Google Scholar
Shi, G.R., 1993, Multivariate data analysis in paleoecology and paleobiogeography—A review: Palaeogeography, Palaeoclimatology, Palaeoecology, v. 105, p. 199234.CrossRefGoogle Scholar
Shrubsole, G.W., and Vine, G.R., 1882, The Silurian species of Glauconome and a suggested classification of the Palaeozoic Polyzoa: Geological Magazine, v. 9, p. 381382.Google Scholar
Siegfried, P., 1963, Bryozoen in Steinkernerhaltung aus ordovizischen Geschieben: Paläontologische Zeitschrift, v. 37, 135146.CrossRefGoogle Scholar
Silliman, B., Silliman, B. Jr., and Dana, J.D., 1851, New genera of fossil corals from the report of James Hall, On the Palaeontology of New York: American Journal of Sciences and Arts, v. 2, p. 398401.Google Scholar
Southwest Institute of Geologic Sciences, 1978, Palaeontological Atlas of Southwest China, Sichuan Volume (1) Sinian-Devonian: Beijing, Geological Publishing House, 617 p. [in Chinese]Google Scholar
Suttner, T., and Ernst, A., 2007, Upper Ordovician Bryozoa of the Pin Formation (Spiti Valley, northern India): Palaeontology, v. 50, p. 14851518. doi:10.1111/j.1475-4983.2007.00726.x.CrossRefGoogle Scholar
Ting, W.J., 1930, The Fengninian Series in Kueichow: Bulletin of the Geological Society of China, v. 9, p. 9596.Google Scholar
Tuckey, M.E., 1990, Distributions and extinctions of Silurian Bryozoa, in McKerrow, W.S., and Scotese, C.R., eds., Palaeozoic Palaeogeography and Biogeography: Geological Society of London, Memoirs, v. 12, p. 197206.Google Scholar
Ulrich, E.O., 1882, American Paleozoic Bryozoa: The Journal of the Cincinnati Society of Natural History, v. 5, p. 121175, 233–257.Google Scholar
Ulrich, E.O., 1883, American Palaeozoic Bryozoa: The Journal of the Cincinnati Society of Natural History, v. 6, p. 245279.Google Scholar
Ulrich, E.O., 1884, American Palaeozoic Bryozoa: The Journal of the Cincinnati Society of Natural History, v. 8, p. 2451.Google Scholar
Ulrich, E.O., 1888, A list of the Bryozoa of the Waverly Group in Ohio; with descriptions of new species: Denison University, Bulletin of Scientific Laboratories, v 4, p. 6296.Google Scholar
Ulrich, E.O., 1890, Palaeozoic Bryozoa, III: Report of the Geological Survey of Illinois, v. 8, p. 283688.Google Scholar
Ulrich, E.O., 1893, On lower Silurian Bryozoa of Minnesota: The Geological and Natural History Survey of Minnesota, Final Report, v. 3, p. 96332.Google Scholar
Ulrich, E.O., 1896, Bryozoa, in Eastman, C., ed., Zittel's Textbook of Palaeontology, Volume 1: London, Macmillan, p. 25291.Google Scholar
Ulrich, E.O., and Bassler, R.S., 1904, A revision of Palaeozoic Bryozoa: Smithsonian Miscellaneous Collections, v. 45, p. 256294.Google Scholar
Utgaard, J., 1983, Systematic descriptions for the order Cystoporata, in Robison, R.A., ed., Treatise on Invertebrate Paleontology, Part G, Bryozoa 1 (revised): Boulder, Colorado, and Lawrence, Kansas, Geological Society of America (and University of Kansas Press), p. G357G439.Google Scholar
Vinassa de Regny, P. E., 1915, Fossili Ordoviciani del Capolago (Seekopf) presso il Passo di Volaia (Alpi Carniche): Palaeontographia Italica, v. 21, p. 97115.Google Scholar
Xia, F.S., and Qi, D.L., 1989, Trepostomatous bryozoans from the Chenxiacun Formation (late early Silurian) of Hanshan, Anhui: Acta Micropalaeontologica Sinica, v. 6, p. 7590. [in Chinese]Google Scholar
Yang, J., 1951, Two new species of Bryozoa from the middle Silurian of Kuanguan, Szechuan: Bulletin of the Geological Society of China, v. 31, p. 8588.CrossRefGoogle Scholar
Yang, J., and Xia, F.-S., 1974, Bryozoans, in A Handbook of the Stratigraphy and Palaeontology of Southwest China: Beijing, Science Press, p. 195, 240, 275, 308. [in Chinese]Google Scholar
Yin, T.H., 1949, Subdivision and correlation of Silurian rocks in South China: Bulletin of the Geological Society of China, v. 29, p. 161. [in Chinese]Google Scholar
Zhan, R.B., and Jin, J.S., 2007, Ordovician-Early Silurian (Llandovery) Stratigraphy and Palaeontology of the Upper Yangtze Platform, South China: Beijing, Science Press, 169 p.Google Scholar
Figure 0

Figure 1. Location of the studied section between Chongqing and Guizhou provinces, South China: (1) region between Chongqing and Guizhou provinces; (2) detail of the shaded-box area in (1), showing the study section.

Figure 1

Figure 2. Lithologic column of the Jiebei section (from Li et al., 2018). Stratigraphic positions of reefs are indicated. Aer = Aeronian; AL = argillaceous limestone; Bou/Fra = boundstone/framestone; Ep. = epoch; Fm. = formation; Gra = grainstone; Pa/FL = packstone/floatstone; Sh/Slt = shale/siltstone; Shi = Shihniulan Formation; St. = stage.

Figure 2

Figure 3. Field aspects of the studied section: (1) the flank facies of the second reef horizon, showing the branched bryozoan Trematopora; (2) the core facies of the second reef horizon; (3) plan view of the framestone, showing bulbous and knobby colonies of the first reef horizon; (4) the flank facies of the first reef horizon. Scale bars = 2 m (2); 8 cm (4); 2 cm (3); 1 cm (1).

Figure 3

Figure 4. (1–5) Fistulipora guangyuanensis Hu, 1982: (1) longitudinal section of a multilayered encrusting colony, SMF 60526; (2) longitudinal section of an encrusting colony, SMF 60526; (3, 4) tangential section showing autozooecial apertures and vesicles, SMF 60525; (5) tangential section showing autozooecial aperture with lunarium, SMF 60524; (6–10) Hennigopora multilamellosa Hu, 1982: (6) longitudinal section, SMF 60570; (7) longitudinal section showing autozooecia and vesicles, SMF 60552; (8–10) tangential sections showing autozooecial apertures, acanthostyles, and vesicles: (8) SMF 60544; (9) SMF 60542; (10) SMF 60554; (11–15) Hennigopora sp. indet., SMF 60577: (11, 12) longitudinal section of an encrusting colony; (13–15) tangential sections showing autozooecial apertures, acanthostyles, and vesicles. Scale bars = 1 mm (2, 6, 11, 13); 0.5 mm (1, 3, 7, 8, 10, 12, 14, 15); 0.2 mm (4, 5, 9).

Figure 4

Table 1. Descriptive statistics of Fistulipora guangyuanensis Hu, 1982. CV = coefficient of variation; Max = maximum value; Min = minimum value; N = number of measurements; SD = sample standard deviation; X = mean.

Figure 5

Table 2. Descriptive statistics of Hennigopora multilamellosa Hu, 1982. Abbreviations as for Table 1.

Figure 6

Table 3. Descriptive statistics of Hennigopora sp. indet. Abbreviations as for Table 1.

Figure 7

Figure 5. (1–6) Leioclema speciosum Hu, 1982: (1) longitudinal section of branched colony, SMF 60587; (2) longitudinal section of exozonal part of branched colony, SMF 60587; (3, 4) transverse section of branched colony, SMF 60586; (5, 6) tangential sections showing autozooecial apertures, acanthostyles, and mesozooecia, SMF 60587; (7–11) Asperopora sinensis n. sp.: (7) longitudinal section, holotype, SMF 60599; (8, 9) tangential sections showing autozooecial apertures, acanthostyles, and mesozooecia, holotype, SMF 60599; (10, 11) longitudinal section showing autozooecia and mesozooecia, paratype, SMF 60606; (12–15) Trematopora jiebeiensis n. sp.: (12, 13) branch transverse section, paratype, SMF 60644; (14, 15) branch longitudinal section, paratype, SMF 60643. Scale bars = 2 mm (1, 3, 14); 1 mm (2, 4, 12, 15), 0.5 m (5, 7–10, 13); 0.2 mm (6, 11).

Figure 8

Table 4. Descriptive statistics of Leioclema speciosum Hu, 1982. Abbreviations as for Table 1.

Figure 9

Table 5. Descriptive statistics of Asperopora sinensis n. sp. Abbreviations as for Table 1.

Figure 10

Figure 6. (1–3) Trematopora jiebeiensis n. sp.: (1) branch longitudinal section showing secondary overgrowth, autozooecia, mesozooecia, and acanthostyles, holotype, SMF 60636; (2, 3) tangential sections showing autozooecial apertures, acanthostyles, and mesozooecia, holotype, SMF 60636; (4–9) Trematopora tenuis n. sp., holotype, SMF 60661: (4, 5) oblique section of a branch; (6) branch transverse section; (7, 8) longitudinal section of a branch showing autozooecia and acanthostyles; (9) tangential sections showing autozooecial apertures, acanthostyles, and mesozooecia. Scale bars = 1 mm (1, 4, 6–8); 0.5 mm (2, 3, 5); 0.2 mm (9).

Figure 11

Table 6. Descriptive statistics of Trematopora jiebeiensis n. sp. Abbreviations as for Table 1.

Figure 12

Table 7. Descriptive statistics of Trematopora tenuis n. sp. Abbreviations as for Table 1.

Figure 13

Figure 7. Moorephylloporina parvula n. sp.: (1–4) tangential section showing autozooecial apertures and keel nodes, holotype, SMF 60668; (5) midtangential section showing autozooecial chambers, paratype, SMF 60708; (6) tangential section showing autozooecial apertures and nodes, paratype, SMF 60708; (7) transverse section showing autozooecial chamber, paratype, SMF 60682; (8) transverse section showing autozooecial chambers, paratype, SMF 60702. Scale bars = 1 mm (1); 0.5 mm (2–5); 0.2 mm (6–8).

Figure 14

Table 8. Descriptive statistics of Moorephylloporina parvula n. sp. Abbreviations as for Table 1.

Figure 15

Table 9. Distribution of bryozoan species in the Telychian localities of South China.

Figure 16

Figure 8. Paleobiogeographical affinities of Jiebei bryozoan association and selected Telychian bryozoan faunas (data from Anstey et al., 2003, updated 2020): (1) the hierarchical relationship based on pair-group cluster analysis (Euclidean similarity index); (2) detrended correspondence analysis. All analyses performed using PAST (Hammer et al., 2001).

Supplementary material: File

Ernst et al. supplementary material

Ernst et al. supplementary material

Download Ernst et al. supplementary material(File)
File 117 KB
You have Access
Open access

Send article to Kindle

To send this article to your Kindle, first ensure no-reply@cambridge.org is added to your Approved Personal Document E-mail List under your Personal Document Settings on the Manage Your Content and Devices page of your Amazon account. Then enter the ‘name’ part of your Kindle email address below. Find out more about sending to your Kindle. Find out more about sending to your Kindle.

Note you can select to send to either the @free.kindle.com or @kindle.com variations. ‘@free.kindle.com’ emails are free but can only be sent to your device when it is connected to wi-fi. ‘@kindle.com’ emails can be delivered even when you are not connected to wi-fi, but note that service fees apply.

Find out more about the Kindle Personal Document Service.

Bryozoans from the lower Silurian (Telychian) Hanchiatien Formation from southern Chongqing, South China
Available formats
×

Send article to Dropbox

To send this article to your Dropbox account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Dropbox.

Bryozoans from the lower Silurian (Telychian) Hanchiatien Formation from southern Chongqing, South China
Available formats
×

Send article to Google Drive

To send this article to your Google Drive account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Google Drive.

Bryozoans from the lower Silurian (Telychian) Hanchiatien Formation from southern Chongqing, South China
Available formats
×
×

Reply to: Submit a response

Please enter your response.

Your details

Please enter a valid email address.

Conflicting interests

Do you have any conflicting interests? *
