Within a decade or so insufficient fish oil (FO) will be available to meet the requirements for aquaculture growth. Consequently, alternative sources are being investigated to reduce reliance on wild fish as a source of FO. Vegetable oils (VO) are a feasible alternative to FO. However, it is important to establish that alternative dietary lipids are not only supplied in the correct quantities and balance for optimal growth, but can maintain immune function and prevent infection, since it is known that the nutritional state of the fish can influence their immune function and disease resistance. A way of maintaining immune function, while replacing dietary FO, is by using a blend of VO rather than a single oil. In this study, juvenile European sea bass (Dicentrarchus labrax) were fed diets with a 60 % substitution of FO with a blend of rapeseed, linseed and palm oils. Two oil blends were used to achieve a fatty acid composition similar to FO, in terms of energy content, and provide a similar balance of SFA, MUFA and PUFA. Fish were fed the diets for 64 weeks, after which time growth and fatty acid compositions of liver and blood leucocytes were monitored. The impact of the dietary blends on selected innate immune responses and histopathology were also assessed, together with levels of plasma prostaglandin E2. The results suggest that potential exists for replacing FO with a VO blend in farmed sea bass feeds without compromising growth, non-specific immune function or histology.

Global catches from the feed-grade fisheries that provide fish oil (FO) and fish meal for aquafeed formulations have reached their sustainable limits1 and it is likely that within a decade or so there may be insufficient FO to meet the quantities required for current aquaculture growth2. Consequently, there has been considerable interest in introducing sustainable alternatives to fish meal and FO that reduce reliance on marine raw materials3, 4. A number of recent studies suggest that dietary vegetable oil (VO) inclusion does not result in reduced growth performance or feed conversion in Atlantic salmon (Salmo salar)5, 6, rainbow trout (Oncorhynchus mykiss)7, gilthead sea bream (Sparus aurata)8 or European sea bass (Dicentrarchus labrax)9. However, at levels above 50 % VO inclusion, significant accumulation of fatty acids derived from VO, especially 18 : 2n-6, and reduction of EPA (20 : 5n-3) and DHA (22 : 6n-3) occurs in fish tissues5, 6, 8, 9.

The nutritional status of an organism, including fish, is known to influence immune functions10 and the overall resistance of an organism to disease is therefore dependent on their nutritional status. The first review suggesting that fatty acids might be important in immune function was by Meade & Mertin11 and more recent reviews have confirmed the importance of PUFA, of both the n-6 and n-3 series, as modulators of immune function12, 13. Fatty acids are incorporated into the plasma membrane from dietary lipids, so that the fatty acid composition of cellular membranes reflects the composition of dietary lipids14. In fish, dietary fatty acids and tissue fatty acid compositions are closely correlated15 and changes in the dietary n-3/n-6 ratio can influence the compositions of fish immune cells, including blood leucocytes1618.

Fatty acids have diverse roles in all cells. They are important as a source of energy, as structural components of cell membranes and as signalling molecules. In mammalian studies, dietary fatty acids may be able to modulate the immune system through several mechanisms including reduction of lymphocyte proliferation, cytokine synthesis and phagocytic activity, and also by modification of natural killer cell activity19. The main event in the modulation of immune function may be associated with changes in the cell membrane due to dietary fatty acid manipulation. It is likely that modulation of the overall immune system occurs as a result of alterations in membrane fluidity, lipid peroxidation, eicosanoid production or regulation of gene expression20.

In the present study, triplicate groups of juvenile European sea bass were fed diets that were based on 60 % substitution of FO with a blend of rapeseed (RO), linseed (LO) and palm oils (PO). The level of 60 % substitution was chosen as this was the maximum level of VO inclusion that could be tolerated in marine fish without loss of growth performance8, 9. The oils were blended in two different formulations to achieve a fatty acid composition as similar to anchovy oil as possible, in terms of energy content, and provide a similar balance of SFA, MUFA and PUFA to that found in FO, but without highly unsaturated fatty acids. The fish were fed the diets for 64 weeks starting at an initial weight of approximately 5 g. Growth parameters and the fatty acid compositions of liver and peripheral blood leucocytes (PBL) were monitored after 64 weeks. The impact of the dietary blends on selected aspects of the innate immune response (haematological parameters, serum lysozyme activity and macrophage respiratory burst activity) and histopathology were also assessed in the experimental fish at this time, together with levels of plasma prostaglandin E2 (PGE2).

Materials and methods

Experimental fish and diets

European sea bass (Dicentrarchus labrax L.), 7·9 (sd 0·5) cm in length and 5·2 (sd 1·0) g in weight, were purchased from MARESA (Huelva, Spain) and transported to the marine aquarium facility at the University of Cádiz, Faculty of Marine and Environmental Sciences, Puerto Real (Cádiz). On arrival the fish were placed in nine 5000-litre rectangular tanks at 600 fish per tank (approximately 0·6 kg/m3), with salinity of 39‰, temperature of 20°C and saturated with oxygen. Following 2 weeks acclimation (July 2002), triplicate groups of fish were fed to satiation, using mechanical belt automatic feeders with three isoenergetic and isonitrogenous experimental diets formulated to provide a constant lipid content of approximately 22 % (Nutreco ARC, Stavanger, Norway). The diets contained approximately 47 % protein, primarily provided by fish meal, and 21·4, 24·1 and 21·5 % lipid for diets of pellet size 2, 3 and 5 mm, respectively. Two experimental diets contained 60 % of three VO, LO, PO and RO, blended to provide a balance of SFA, MUFA and PUFA similar to that found in FO, but without highly unsaturated fatty acids. The control diet contained anchovy oil and the added oil combinations for the three experimental diets were: Diet A: 100 % anchovy oil (control); Diet B: 40 % anchovy oil, 35 % LO, 15 % PO and 10 % RO; Diet C: 40 % anchovy oil, 24 % LO, 12 % PO and 24 % RO. The formulation and proximate compositions of the experimental diets are shown in Table 1, while diet total lipid content and fatty acid compositions are shown in Table 2.

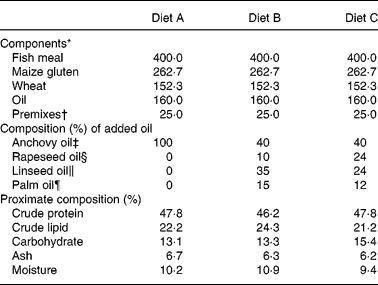

Table 1 Formulation and proximate composition of experimental diets (5 mm pellet size; g/kg feed)

* Fish meal from Scandinavian LT-fish meal (Nordsildmel, Norway); maize gluten from Cargill (Staley, NC, USA); wheat from Statkorn (Oslo, Norway).

Vitamin and mineral premix added exceed National Research Council (1993) recommendations.

Anchovy oil (Denofa, Fredrikstad, Norway) supplemented with 200 ppm butylated hydroxytoluene.

§ Crude rapeseed oil (Oelmühle, Hamburg, Germany), no antioxidant added.

Crude E.C.C. linseed oil (N.V. Oliefabriek, Lictervelde, Belgium) supplemented with 500 ppm Ronoxan A (Roche, Basel, Switzerland).

Crude palm oil (Denofa, Norway).

Table 2 Total lipid content (% of dry mass) and fatty acid composition (weight % of total fatty acids) of the experimental diets (5 mm pellet size) (Mean values and standard deviations for three determinations)

a,b,c Mean values within a row with unlike superscript letters were significantly different (P < 0·05).

* Standard deviation of 0·0 implies sd < 0·05.

Includes 20: 0 and 22: 0.

Includes 18 : 1n-11, 20 : 1n-11, 20 : 1n-7 22 : 1n-9 and 24 : 1.

§ Includes 16 : 2, 16 : 3, 16 : 4, 20 : 2n-6, 20 : 3n-6 and 22 : 5n-6.

Sample collection and biometric measurements

After feeding the experimental diets for 64 weeks, thirty fish per tank (i.e. ninety fish per replicate) were sampled for length and live mass, and Fulton's condition factor (K) and specific growth rates were recorded. Ten fish per replicate (i.e. thirty fish per dietary treatment) were sampled and liver (live and dry mass), hepatosomatic index and flesh (live and dry mass) were recorded. Liver samples for fatty acid analyses were dissected from four fish per replicate (i.e. twelve fish per dietary treatment) and immediately frozen in liquid nitrogen and stored at − 80°C until analysed. Blood for eicosanoid analysis (2 ml) was collected in heparinised syringes from six fish per dietary treatment, and centrifuged at 12 000 g for 2 min. The plasma was collected and acidified by the addition of 2 m-formic acid (50 μl/ml) and immediately frozen in liquid nitrogen for eicosanoid analysis. Heparinised blood samples were also used for haematological analyses. Live mass of the liver was determined by blotting the tissue on filter paper before weighing, and dry mass was determined after heating to 60°C for 24 h and cooling under vacuum before weighing. Hepatosomatic index was calculated as liver live mass × 100/fish live mass. Fulton's condition factor (K) = (W/L 3) × 100, where W is the fish weight (g) and L is the total length (cm). Specific growth rate was calculated as % weight gain/d21. Non-specific mortality was measured at the end of the experiment and expressed as a percentage of surviving fish.

Proximate analysis of diets

Moisture content was determined by thermal drying to constant weight in an oven at 110°C for 24 h. For the total protein content, the micro-Kjeldahl analysis method was followed, using a Digestion system 40-1006 Heating Unit (Foss, Warrington, UK) and a Kjeltec Auto 1030 Analyzer (Foss). To convert total nitrogen to total protein content, as a percentage of dry weight, the factor 6·25 (100/16) was used. Crude fat was determined by acid hydrolysis with a Soxtec System 1047 Hydrolyzing Unit, followed by Soxhlet extraction using a Soxtec System HT6 (Foss). Ash content as a percentage of dry weight was determined by dry ashing in porcelain crucibles in a muffle furnace, at 600°C overnight22.

Lipid analysis

Total lipid in samples was extracted after homogenisation, using an Ultraturrax tissue disrupter (Fisher Scientific, Loughborough, UK), in ten volumes of chloroform–methanol (2:1, v/v) containing 0·01 % butylated hydroxytoluene as antioxidant, basically according to Folch et al. 23 and essentially as described by Christie24.

Fatty acid methyl esters were prepared from aliquots of total lipids by acid-catalysed transmethylation for 16 h at 50°C, using tricosanoic acid (23 : 0) as internal standard24. Fatty acid methyl esters were extracted and purified as described previously25 and were separated using a Hewlett-Packard 5890A Series II gas chromatograph (Hewlett-Packard, Barcelona, Spain) equipped with a chemically bonded (PEG) Supelcowax-10 fused silica wall coated capillary column (30 m × 0·32 mm i.d.; Supelco Inc., Bellefonte, PA, USA), using an ‘on column’ injection system and flame ionisation detection. Hydrogen was used as the carrier gas with an oven thermal gradient from an initial 50°C to 180°C at 25°C/min and then to a final temperature of 235°C at 3°C/min, with the final temperature maintained for 10 min. Individual fatty acid methyl esters were identified by comparison with known standards and quantified by means of a direct-linked PC and Hewlett-Packard ChemStation software.

Extraction and measurement of prostaglandin E2 concentrations in plasma

The frozen acidified plasma samples were thawed and centrifuged at 12 000 g for 2 min to remove any precipitate. The supernatants were extracted using octadecyl silyl (C18) ‘Sep-Pak’ mini-columns (Millipore) as described in detail by Bell et al. 26. C18 ‘Sep-Pak’ mini columns were pre-washed with 5 ml methanol and 10 ml distilled water, plasma samples were charged on the mini-column, washed with a further 10 ml distilled water and the eicosanoids eluted in 5 ml ethyl acetate. Samples were dried under nitrogen and redissolved in immunoassay buffer. Quantification of PGE was performed using enzyme immunoassay kits, according to the manufacturers protocol (SPI-Bio, Massy, France).

Measurement of cellular immune parameters

Eight fish per dietary treatment were sampled after 64 weeks of feeding the experimental diets. Fish were anaesthetised with a lethal dose of tricaine methanesulphonate (MS-222, Sigma, Poole, UK). Blood samples were collected in heparinised vacuum tubes (vacutainer; Becton Dickinson Vacutainer System, Oxford, UK) from the caudal vein.

Preparation of peripheral blood leucocytes

PBL were isolated from blood from three fish per dietary treatment using the lymphocyte separation medium, Histopaque® (Sigma) and density gradient centrifugation. Blood (1 ml) was diluted with L-15 medium (4 ml) and 3 ml of the diluted blood was layered on to 4 ml Histopaque® and centrifuged at 400 g for 45 min. The leucocyte band was collected using a Pasteur pipette and stored in 1 ml chloroform–methanol (2:1, v/v) at − 20°C until required for lipid extraction. If erythrocyte contamination of PBL was considered to be excessive (>2 %) then the PBL fraction was centrifuged again on 4 ml fresh Histopaque®.


Blood was used immediately for haematological studies. Haematocrit values were obtained using heparinised micro-haematocrit tubes and centrifuging at 12 000 g for 4 min (Microcentrifuge MH2; Sarstedt Ltd, Leicester, UK). Total erythrocyte and total leucocyte counts (including thrombocytes) were made using PBS for dilution and an improved Neubauer haemocytometer (Hawksley, Lancing, UK).

Serum lysozyme activity

An aliquot of blood was allowed to clot at 4°C overnight. Serum was separated by centrifugation at 4000 g for 15 min and stored at − 20°C until analysis. Serum lysozyme activity was assayed by a turbidimetric assay which measures the lytic activity of the sea bass serum against Microccocus lysodeikticus. 27, 28 A suspension of 190 μl of bacteria (Micrococcus lysodeikticus; Sigma) and 10 μl of serum sample was measured spectrophotometrically at 540 nm in five replicate wells per serum sample after 1 and 5 min at 25°C, using a Dynatech MRX 1·2 ELISA reader (Dynatech Laboratories Ltd, Billingshurst, West Sussex, UK). The bacterial suspension (0·2 mg/ml) was prepared in sodium phosphate buffer (0·04 m, pH 5·8). The results are given as units (U)/ml per min (1 U = the amount of sample causing a decrease in absorbance of 0·001 per min).

Macrophage respiratory burst activity

The reduction of nitroblue tetrazolium salt to formazan by oxygen radicals produced by head kidney macrophages during respiratory burst activity was measured spectrophotometrically as described by Chung & Secombes29. Isolation and culture of head kidney macrophages were performed as described by Secombes30, however, instead of placing the cell suspensions on Percoll to isolate the macrophages, 200 μl of each kidney suspension were added directly to four replicate wells of a ninety-six-well microtitre plate. Plates were sealed and incubated for 3 h before washing them gently three times to remove non-adherent cells. L-15 (200 μl) containing 10 % foetal bovine serum was added to all wells and cultures were incubated at 18°C for 2–3 d, after which the respiratory burst activity of the macrophages was determined by incubating the cells with 100 μl nitroblue tetrazolium salt (1 mg/ml)–phorbol myristate acetate (1 μg/ml). This was added to three of the four wells and incubated at 18–20°C for 40 min. The assay was developed as described by the authors using a microplate reader as described earlier to read the absorbance at 620 nm. The remaining well was used to determine the numbers of macrophages attached to the plate for individual kidney samples30. The results were expressed as ‘macrophage activity’ by calculating the mean optical density for each of the triplicate cultures and dividing the mean optical density by the number of cells per well to obtain an optical density per 105 cells and multiplying by 100.

Histological examination of fish tissues

Samples were collected at 64 weeks to identify any effects of dietary treatment on the histology of the heart, liver or intestine. Samples of proximal, mid and distal intestine were collected from six fish from each dietary treatment, in addition to the heart and liver, for histopathological examination. Sections were fixed in 10 % buffered formalin at the time of dissection, embedded in paraffin wax and 5 μm sections were cut and stained with haematoxylin and eosin. Processed sections were examined ‘blind’ to eliminate bias in interpretation. Stained sections of heart were assessed for signs of endocarditis and pericarditis. Liver sections were assessed on fat content, any indication of inflammation in the tissue, the degree of peri-vascular cuffing and finally the presence of single cell necrosis. Intestinal sections were examined on the integrity of the intestinal mucosa, the appearance of the submucosa and lamina propria, and the presence of any inflammatory response.

Statistical analysis

Results are reported as means and standard deviations (n 3) unless otherwise stated. All statistical analyses were performed using the statistical computer package Prism 4·0 (GraphPad Software Inc., San Diego, CA, USA). The significance of treatment effects on biometry and growth rates, liver and leucocyte fatty acid compositions, haematology, serum lysozyme activity and macrophage respiratory burst activity were determined by one-way ANOVA followed by Tukey's multiple comparison test where appropriate. Percentage data and data which were identified as non-homogeneous (Bartlett's test) were subjected to either arcsine, square root or log transformation before analysis. Differences were reported as significant at P < 0·0531. Immune parameter results are reported as means and standard deviations (n 8).


There were no significant differences in the total length of fish between dietary treatments, but fish fed Diet B showed significantly lower values for total live mass and liver mass than fish fed Diets A (control) and C. Fish fed Diets A (control) and B presented significantly lower values for flesh dry mass (%) at the end of the 64-week feeding trial (Table 3).

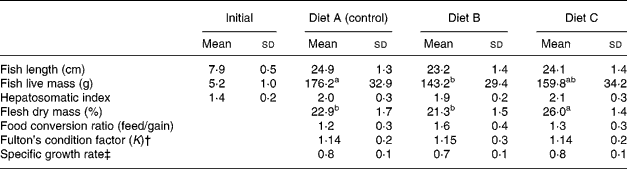

Table 3 Effect of partial replacement (60 %) of dietary fish oil with vegetable oils (rapeseed, linseed and palm oils) on growth and performance of European sea bass fed experimental diets for 64 weeks* (Mean values and standard deviations)

a,b Mean values within a row with unlike superscript letters were significantly different (P < 0·05).

* See Tables 1 and 2 for details of diets. For fish length and weight, n 90; for liver mass, hepatosomatic index and flesh mass, n 30.

K = (W/L 3) × 100, where W is the weight (g) and L is the total length (cm).

Specific growth rate = (LnW 1 − LnW 0) × 100/t, where W is the weight (g), L is the length (cm), W 0 is the initial weight (g), W 1 is the final weight (g), t is the time (d).

The total lipid fatty acid compositions of livers from sea bass following 64 weeks of feeding the experimental diets are shown in Table 4. Total SFA (primarily 16 : 0) were identical in all treatments. Total MUFA, primarily oleic acid (OA), were significantly higher in liver total lipids from fish fed Diet C, followed by fish fed Diets B and A (control) due to the higher inclusion of OA in the VO blends. The proportion of linoleic acid (18 : 2n-6) in total lipid from liver was highest in fish fed the VO diets, due to the high inclusion of linoleic acid in RO, LO and PO, and was about 50 % lower in liver of fish fed Diet A (control). However, total n-6 PUFA values were not significantly different for all treatments. In contrast, arachidonic acid (ARA; 20 : 4n-6) was highest in liver of control fish (Diet A) and fish fed Diet B, followed by fish fed Diet C. Total n-6 highly unsaturated fatty acid, primarily ARA, was highest in liver from fish that had been fed Diet A (control) followed by fish from treatments B and C that showed identical values. The percentage of linolenic acid (18 : 3n-3) in liver total lipids was highest in fish fed Diets B and C (which contained the highest proportions of LO and, in consequence, the highest level of linolenic acid), followed by fish fed Diet A (control). Liver total lipid percentages of EPA, DHA and total n-3 PUFA were highest in fish fed Diet A (control) due to the highest content of these fatty acids in FO. The level of total PUFA was not significantly different in liver total lipids from all treatments (Table 4).

Table 4 Total lipid content (% of dry mass) and total lipid fatty acid composition (weight % of total fatty acids) of liver from European sea bass fed the experimental diets for 64 weeks* (Mean values and standard deviations for three determinations)

a,b Mean values within a row with unlike superscript letters were significantly different (P < 0·05).

* See Tables 1 and 2 for details of diets.

Standard deviation of 0.0 implies sd < 0·05.

Inclusion of VO in the diets of sea bass modified the fatty acid composition of their PBL. The fatty acid compositions of PBL from VO-fed fish were different from the corresponding PBL of fish fed FO, with the latter having more MUFA and higher n-6 PUFA. PBL of sea bass maintained on Diets B and C had significantly increased levels of 18: 0, OA, linoleic acid, 20 : 2n-6 and linolenic acid, and significantly reduced amounts of n-3 PUFA, ARA, EPA, DHA and others (Table 5). The overall ratio of n-3/n-6 was significantly reduced in sea bass fed the VO diets.

Table 5 Total lipid fatty acid composition (weight % of total fatty acids) of peripheral blood leucocytes from European sea bass fed the experimental diets for 64 weeks* (Mean values and standard deviations for three determinations)

a,b,c Mean values within a row with unlike superscript letters were significantly different (P < 0·05).

* See Tables 1 and 2 for details of diets.

Standard deviation of 0.0 implies sd < 0·05.

The effect of partial replacement of dietary FO with VO blends on the concentration of plasma PGE2 in European sea bass after 64 weeks of feeding the diets is shown in Fig. 1(a). The highest values were found in plasma of fish fed the control (FO) diet and Diet C, with significantly lower values seen in fish fed Diet B (46 % less). The source of dietary lipid did not affect any of the haematological parameters measured. No significant differences were found in haematocrit values (Fig. 1(b)) or the total number of leucocytes (Fig. 1(c)) and erythrocytes (Fig. 1(d)) between groups. The production of superoxide anion by head kidney macrophages, measured by the reduction of nitroblue tetrazolium salt, is presented in Fig. 1(e). It appears that following phorbol myristate acetate triggering, the respiratory burst activity was significantly reduced in fish fed the VO-based diets. Whether or not this change affects the innate immune response of the fish needs further investigation. It could be that the respiratory burst event takes place earlier or later than seen with macrophages from fish fed the FO diet and that this activity has not been measured at the optimal time for fish fed the VO diets. No effect of dietary VO was observed on sea bass serum lysozyme activity (Fig. 1(f)). Fish fed the FO diet showed the highest (1452·5 U/ml per min; but not significantly different) value of lysozyme activity in serum compared to 1351·1 U/ml per min found for fish fed Diet B and 1171·1 U/ml per min for Diet C.

Fig. 1 Effects of feeding diets containing fish oil (Diet A), or two 60 % vegetable oil blends (Diets B and C) on plasma prostaglandin E2 (PGE2) concentration (a); % haematocrit (b); total circulating leucocytes (c); total circulating erythrocytes (d); head kidney macrophage activity (nitroblue tetrazolium salt reduction, measured as absorbance at 620 nm/105 cells × 100) (e); serum lysozyme activity (f). Values are means with their standard errors depicted by vertical bars (n 9). a,b Mean values with unlike letters were significantly different (P < 0·05).

Hearts examined from all three dietary groups showed no signs of pathological change. In livers, fat vacuoles were variable in size in many sections with some very large vacuoles present within some hepatocytes and relatively smaller vacuoles in other hepatocytes. Due to the level of vacuolation in some hepatocytes, there was some distortion of the cellular architecture and occasional breakdown of cells. Again, there were no differences between the three dietary groups. Small foci of inflammation were seen in some sections in all three groups, with a slightly higher incidence in sections from the Diet C group. Peri-vascular cuffing was not a feature in any of the dietary groups examined. With regard to the intestinal sections, mucus levels appeared very similar in all segments and in all dietary groups. Absorptive vacuoles were small and multiple in all sections. In the FO diet these were at relatively low levels in the proximal and mid-segments and higher in the distal segments. In fish fed Diet B or Diet C, vacuolation in the proximal segments appeared to be much more pronounced, interestingly less so than in the mid-sections. Some cellular infiltration was seen in the lamina propria of one fish in the FO diet group (Fig. 2(a)) and two fish on Diet C (Fig. 2(b)). Sloughing of the mucosal membrane was not a feature in any of the sections examined. The major difference seen between these groups was the level of absorptive vacuolation in the proximal segment of fish fed Diet B or Diet C, compared with the FO diet.

Fig. 2 Histopathology of sea bass fed fish oil (Diet A), distal intestine showing slight cellular infiltration in the lamina propria and high levels of absorptive vacuoles ( × 175) (a); 60 % vegetable oil blend (Diet C), distal intestine showing cellular infiltration but no sloughing of the mucosal folds ( × 430) (b).


Considerable data have been accumulated on the effects of different dietary lipids on tissue fatty acid compositions of both mammals and fish, although the effects of dietary lipids on fish health and immune function are less well documented. Changes in dietary fatty acid composition have been shown to affect both innate3235 and adaptive immunity16, 34, 3638, as well as the resistance to infectious diseases16, 3639. However, the role of n-3 and n-6 fatty acids in fish immune response is unclear, and reports are not conclusive and are often contradictory.

The modulatory process is likely to occur at different cellular levels with the most obvious being a change in cell membrane phospholipid fatty acid composition, affecting the activity of membrane-bound enzymes, receptors and ion channels40. In addition, eicosanoids, a group of bioactive derivatives of ARA, EPA and dihomo-γ-linolenic acid (20 : 3n-6), which include PG, thromboxanes, leukotrienes and lipoxins, act to regulate the immune response13, 41. Other immune modulatory processes involving fatty acids include changes in intracellular signalling pathways42 and direct interactions between fatty acids and nuclear transcription factors in cells of the immune system, such as PPAR, that act to regulate immune cell function20.

Fish tissues and cell membranes, including phagocytic cells (macrophages, neutrophils), contain relatively high concentrations of n-3 PUFA, and their compositions can be altered by changes in dietary lipid18. Specific macrophage functions may also be altered by lipids, mainly due to changes in membrane fluidity. If fluidity is altered by fatty acid composition, then potentially several aspects of phagocyte function may be affected including phagocytosis and eicosanoid production. Calder et al. 43 reported that unsaturated fatty acid incorporation is associated with an increase in the phagocytosis of zymosan particles.

Reduction in head kidney macrophage respiratory burst activity has been observed in sea bass and gilthead sea bream fed VO9, 44. Sea bass fed 60 % RO, LO and olive oil had significantly reduced phagocytic capacity of head kidney macrophage to engulf yeast particles9 while Montero et al. 44 found reduced macrophage activity in sea bream fed 60 % RO. In addition, Sheldon & Blazer32 found that channel catfish macrophage killing activity was positively correlated to the dietary content of n-3 PUFA. They found phagocytosis of live Edwardsiella ictaluri by catfish head kidney macrophages was not significantly affected by feeding soyabean oil compared to fish fed menhaden oil or beef tallow. However, feeding soyabean oil significantly reduced the ability of macrophages to kill engulfed bacteria compared to macrophages from those fed menhaden oil. Macrophages from the latter group also had a significantly higher killing index than macrophages from fish fed soyabean oil. Waagbø et al. 34 showed that Atlantic salmon fed diets rich in n-3 PUFA significantly reduced the bacterial killing ability of macrophages at 12°C but not at 18°C, indicating that temperature, perhaps related to membrane fluidity, also influences the activity of macrophages. In contrast, Thompson et al. 16 found no differences in phagocytosis and bactericidal activities of head kidney macrophages from Atlantic salmon fed diets enriched with either n-3 or n-6 PUFA.

In the present study, the concentration of circulating PGE2 in plasma of sea bass fed the 60 % VO blend (Diet B) was significantly lower than in fish fed FO. In addition, the fish fed 60 % VO (Diets B and C) also showed significantly reduced respiratory burst activity which coincided with a reduction in plasma PGE2 levels. Since the production of PGE2 was reduced in fish fed VO diets, it may be that the activity or expression of the cyclo-oxygenase enzymes is inhibited by dietary lipid. It is also possible that feeding VO for a long period may reduce the levels of ARA in plasma membranes and, thereby, compromise immune function. In support of the present study, a number of studies also showed a reduction in production of PGE2 and leukotriene B4 by stimulated head kidney macrophages from salmon fed a diet containing LO compared to those fed diets containing sunflower oil or FO17, 18, 45, 46. However, no differences in serum lysozyme activity were found in the present study, which was also reported in other studies with fish fed VO18, 44.

Montero et al. 44 found that seabream fed a FO diet had higher numbers of circulating erythrocytes compared to fish fed 60 % LO or soyabean oil diets, which may be related to a higher oxygen requirement due to higher peroxisomal β-oxidation activity induced by the VO diets37. Leray et al. 47 found that the fatty acid composition of erythrocyte membrane phospholipids from trout can be profoundly altered by dietary oils. Trout fed highly saturated coconut oil showed increased n-9 fatty acids in their phospholipids, and, consequently, their erythrocytes had a more shrunken appearance than fish fed FO. Perhaps the high levels of saturates in the diets caused reduced haematocrit levels, linked to a shrunken erythrocyte morphology causing a lower packed erythrocyte volume.

The lipid composition of monocytes, macrophages, lymphocytes and polymorphonuclear cells reflect the fatty acid composition of dietary lipids in mammals11, 48. Studies by Waagbbø et al. 35, Farndale et al. 49 and Montero et al. 44 reported that dietary oil determines the fatty acid profile of macrophages and immune cells in cod, sea bass and sea bream. Montero et al. 44 reported selective incorporation of certain fatty acids into head kidney macrophages of sea bream. DHA was found to be preferentially incorporated and retained in this cell type. Generally, fish fed with a VO-containing diet had increased levels of oleic acid, linoleic acid, linolenic acid and total n-6 PUFA in both their liver and their PBL, and decreased levels of EPA, DHA, total n-3 PUFA and a lower n-3/n-6 ratio than fish fed a FO diet. Fish fed a FO diet showed the highest n-3 highly unsaturated fatty acids in immune cells in the present study and in previous studies35, 44, 49. Evidence suggests that changing the fatty acid composition of immune cells can influence immune function by changing the physiology of the cell membrane but perhaps more importantly by influencing the production of modulatory PG and leukotrienes20. The production of eicosanoids is influenced, in part, by the availability of precursor fatty acids and, in particular, the EPA/ARA ratio. In a previous study with Atlantic salmon fed a single VO, 3-fold differences in the EPA/ARA ratio of immune cells were recorded18, while in the present study with VO blends the difference in the EPA/ARA ratio, between the three dietary treatments, was only 13 %. Perhaps the minor changes to the EPA/ARA ratio in the present study can partly explain the lack of effect observed in innate immune function.

The overall histological appearance of sea bass sampled from all of the dietary treatments was normal with very few differences observed between the groups. The only difference was in the levels of absorptive vacuoles present in the proximal intestine. Sea bass fed the VO diets showed elevated numbers of absorptive vacuoles compared to fish fed the FO diet. The presence of increased absorptive vacuoles tends to suggest an ‘active’ mucosa, however, with increased mucosal vacuolation this could, in turn, leave the intestinal mucosal membrane more vulnerable to sloughing and breakdown. However, the vacuolisation was minor and was still regarded as being within normal ranges for Atlantic salmon.

Results of the present study suggest that potential exists for replacing FO with a blend of VO in the feeds of farmed sea bass without compromising growth, non-specific immune function and overall histological appearance. It is important to establish that alternative dietary lipids to FO are not only supplied in the correct quantities and balance for optimal growth and feed conversion, but can maintain optimal immune function and not increase susceptibility to infectious pathogens. The present study suggests that normal immune function can be more successfully attained if dietary FO is replaced by a blend of VO that provides a more physiologically balanced fatty acid composition, in comparison to replacement with a single VO9, 17, 18, 44.


This work was supported by contract no. QLRT-2000-30 058 of the project ‘Researching alternatives to fish oils in aquaculture, RAFOA’ of the European Commission, Directorate General Fisheries as part of the Fifth Framework Programme ‘Quality of Life & Management of Living Resources’. Joanne Good was supported in her doctoral studies by Ewos Innovation AS, Norway.


Pike, IH & Barlow, SM (2002) Impact of fish farming on fish stocks. Aquaculture and Environment Symposium, 7th Bordeaux Aquaculture, Bordeaux Exhibition Centre, France. Book of Abstracts, pp. 67.
Tacon, AGJ (2004) Use of fish meal and fish oil in aquaculture: a global perspective. Aquat Res Cult Dev 1, 314.
Kaushik, SJ, Coves, D, Dutto, G & Blanc, D (2004) Almost total replacement of fish meal by plant protein sources in the diet of a marine teleost, the European sea bass, Dicentrarchus labrax. Aquaculture 230, 391404.
Tacon, AGJ (2005) Salmon aquaculture dialogue: status of information on salmon aquaculture feed and the environment. Int Aquafeed 8, 2237.
Bell, JG, Henderson, RJ, Tocher, DR & Sargent, JR (2004) Replacement of dietary fish oil with increasing levels of linseed oil: modification of flesh fatty acid compositions in Atlantic Salmon (Salmo salar) using a fish oil finishing diet. Lipids 39, 223232.
Torstensen, BE, Bell, JG, Sargent, JR, Rosenlund, G, Henderson, RJ, Graff, IE, Lie, Ø & Tocher, DR (2005) Tailoring of Atlantic salmon (Salmo salar L.) flesh lipid composition and sensory quality by replacing fish oil with a vegetable oil blend. J Agric Food Chem 53, 1016610178.
Caballero, MJ, Obach, A, Rosenlund, G, Montero, D, Gisvold, M & Izquierdo, MS (2002) Impact of different dietary lipid sources on growth, lipid digestibility, tissue fatty acid composition and histology of rainbow trout, Oncorhynchus mykiss. Aquaculture 214, 253271.
Izquierdo, MS, Obach, A, Arantzamendi, L, Montero, D, Robaina, L & Rosenlund, G (2003) Dietary lipid sources for seabream and sea bass: growth performance, tissue composition and flesh quality. Aquacult Nutr 9, 397407.
Mourente, G, Good, JE & Bell, JG (2005) Partial substitution of fish oil with rapeseed, linseed and olive oils in diets for European sea bass (Dicentrarchus labrax L.): effects on flesh fatty acid composition, plasma prostaglandins E2 and F, immune function and effectiveness of a fish oil finishing diet. Aquacult Nutr 11, 2540.
Blazer, VS (1992) Nutrition and disease resistance in fish. Annu Rev Fish Dis 2, 309323.
Meade, CJ & Mertin, J (1978) Fatty acids and immunity. Adv Lipid Res 16, 127165.
Calder, PC (2001) Polyunsaturated fatty acids, inflammation and immunity. Lipids 36, 10071024.
Yaqoob, P (2004) Fatty acids and the immune system: from basic science to clinical applications. Proc Nutr Soc 63, 89104.
Clamp, AG, Ladha, S, Clark, DC, Grimble, RF & Lund, EK (1997) The influence of dietary lipids on the composition and membrane fluidity of rat hepatocyte plasma membrane. Lipids 32, 179184.
Sargent, JR, Tocher, DR & Bell, JG (2002) The lipids. In Fish Nutrition, 3rd ed., pp. 181257 [Halver, JE and Hardy, RW, editors]. San Diego, CA: Academic Press.
Thompson, KD, Henderson, RJ & Tatner, MF (1995) A comparison of the lipid composition of peripheral blood cells and head kidney leucocytes of Atlantic salmon (Salmo salar L.). Comp Biochem Physiol B Biochem Mol Biol 112, 8392.
Bell, JG, Dick, JR, McVicar, AH, Sargent, JR & Thompson, KD (1993) Dietary sunflower, linseed and fish oils affect phospholipid fatty acid composition, development of cardiac lesions, phospholipase activity and eicosanoid production in Atlantic salmon (Salmo salar). Prostaglandins Leukot Essent Fatty Acids 49, 665673.
Bell, JG, Ashton, I, Secombes, CJ, Weitzel, BR, Dick, JR & Sargent, JR (1996) Dietary lipid affects phospholipid fatty acid compositions, eicosanoid production and immune function in Atlantic Salmon (Salmo salar). Prostagandins Leukot Essent Fatty Acids 54, 173182.
De Pablo, MA & De Cienfuegos, GA (2000) Modulatory effects of dietary lipids on immune system functions. Immunol Cell Biol 78, 3139.
Calder, PC (2006) n-3 polyunsaturated fatty acids, inflammation, and inflammatory diseases. Am J Clin Nutr 83, 1505S15019S.
Wootten, RJ (1990) Ecology of Teleost Fishes. Fish and Fisheries Series 1. Ashburton: Chapman and Hall.
Woyewoda, AD, Shaw, SJ, Ke, PJ & Burns, BG (1986) Recommended Laboratory Methods for Assessment of Fish Quality. Canadian Technical Report of Fisheries and Aquatic Sciences no. 1448. Ottawa, Canada: NRC Research Press.
Folch, J, Lees, LM & Sloane-Stanley, GH (1957) A simple method for isolation and purification of total lipids from animal tissues. J Biol Chem 226, 497509.
Christie, WW (1982) Lipid Analyses, 2nd ed. Oxford: Pergamon Press.
Mourente, G & Tocher, DR (1994) In vivo metabolism of [1-14C] linolenic acid [18:3(n-3)] and [1-14C] eicosapentaenoic acid [20:5(n-3)] in a marine fish: time course of the desaturation/elongation pathway. Biochim Biophys Acta 1212, 109118.
Bell, JG, Tocher, DR, Macdonald, FM & Sargent, JR (1994) Effects of diets rich in linoleic (18:2n-6) and α-linolenic (18:3n-3) acids on the growth, lipid class and fatty acid compositions and eicosanoid production in juvenile turbot (Scophthalmus maximus L). Fish Physiol Biochem 13, 105118.
Anderson, DP & Siwicki, AK (1994) Simplified assays for measuring non-specific defense mechanisms in fish. Am Fish Soc (Fish Health Sect) 12, 2635.
Rungruangsak-Torrissen, K, Wergeland, HI, Glette, J & Waagbø, R (1999) Disease resistance and immune parameters in Atlantic salmon (Salmo salar L.) with genetically different trypsin isozymes. Fish Shellfish Immunol 9, 557568.
Chung, S & Secombes, CJ (1988) Analysis of events occurring within teleost macrophages during the respiratory burst. Comp Biochem Physiol B Biochem Mol Biol 89, 539544.
Secombes, CJ (1990) Isolation of salmonid macrophages and analysis of their killing activity. In Techniques in Fish Immunology, pp. 137154 [Stolen, JS, Fletcher, TC, Anderson, DP, Robertson, BS and van Muiswinkel, WB, editors]. Trenton, New Jersey: SOS Publications.
Zar, JH (1984) Biostatistical Analysis, 2nd ed. Englewood Cliffs, NJ: Prentice-Hall.
Sheldon, WM & Blazer, VS (1991) Influence of dietary lipid and temperature on bactericidal activity of channel catfish macrophages. J Aquat Anim Health 3, 8793.
Obach, A, Quentel, C & Laurencin, FB (1993) Effects of α-tocopherol and dietary oxidized fish oil on the immune response of sea bass Dicentrarchus labrax. Dis Aquat Org 15, 175185.
Waagbø, R, Sandnes, K, Joergensen, J, Engstad, R, Glette, J & Lie, Ø (1993) Health aspects of dietary lipid sources and vitamin E in Atlantic salmon (Salmo salar): 2 – spleen and erythrocyte phospholipid fatty acid composition, nonspecific immunity and disease resistance. Fiskeridir Skr (Ernaering) 6, 6380.
Waagbø, R, Hemre, GI, Holm, JC & Lie, Ø (1995) Tissue fatty acid composition, haematology and immunity in adult cod, Gadus morhua L., fed three dietary lipid sources. J Fish Dis 18, 615622.
Erdal, JI, Evensen, O, Kaurstad, OK, Lillehaug, A, Solbakken, R & Thorud, K (1991) Relationship between diet and immune response in Atlantic salmon (Salmo salar L) after feeding various levels of ascorbic acid and omega-3 fatty acids. Aquaculture 98, 363379.
Waagbø, R, Sandnes, K, Lie, Ø & Nilsen, ER (1993) Health aspects of dietary lipid sources and vitamin E in Atlantic Salmon (Salmo salar): 1 – erythrocyte total lipid fatty acid composition, haematology and humoral immune response. Fiskeridir Skr (Ernaering) 6, 4762.
Fracolossi, DM & Lovell, RT (1994) Dietary lipid sources influence responses of channel catfish (Ictalarus punctatus) to challenge with the pathogen Edwardsiella ictaluri. Aquaculture 119, 287298.
Salte, R, Thomassen, MS & Wold, K (1988) Do high levels of dietary polyunsaturated fatty acids (EPA/DHA) prevent disease associated with membrane degeneration in farmed Atlantic salmon at low water temperatures? Bull Eur Assoc Fish Path 8, 6365.
Theis, F, Miles, EA, Nebe-von-Caron, G, Powell, JR, Hurst, TL, Newsholme, EA & Calder, PC (2001) Influence of dietary supplementation with long-chain n-3 or n-6 polyunsaturated fatty acids on blood inflammatory cell populations and functions and on plasma soluble adhesion molecules in healthy adults. Lipids 36, 11831193.
Hwang, D (1989) Essential fatty acids and immune response. FASEB J 3, 20522061.
Khan, WA, Blobe, GC & Hannun, YA (1995) Arachidonic acid and free fatty acids as second messengers and the role of protein kinase C. Cell Signal 7, 171184.
Calder, PC, Bond, JA, Harvey, DJ, Gordon, S & Newsholme, EA (1990) Uptake and incorporation of saturated and unsaturated fatty acids into macrophage lipids and their effect upon macrophage adhesion and phagocytosis. Biochem J 269, 807814.
Montero, D, Kalinowski, T, Obach, A, Robaina, A, Tort, L, Caballero, MJ & Izquierdo, MS (2003) Vegetable lipid sources for gilthead sea bream (Sparus aurata): effects on fish health. Aquaculture 225, 353370.
Bell, JG, Dick, JR & Sargent, JR (1993) Effect of diets rich in linoleic or α-linolenic acid on phospholipid fatty acid composition and eicosanoid production in Atlantic salmon (Salmo salar). Lipids 28, 819826.
Bell, JG, Farndale, BM, Dick, JR & Sargent, JR (1996) Modification of membrane fatty acid composition, eicosanoid production, and phospholipase A activity in Atlantic salmon (Salmo salar) gill and kidney by dietary lipid. Lipids 31, 11631171.
Leray, C, Nonnotte, G & Nonnotte, L (1986) The effect of dietary lipids on the trout erythrocyte membrane. Fish Physiol Biochem 1, 2735.
Johnston, DV & Marshall, LA (1984) Dietary fat, prostaglandins and the immune response. Prog Food Nutr Sci 8, 325.
Farndale, BM, Bell, JG, Bruce, MP, Bromage, NR, Oyen, F, Zanuy, S & Sargent, JR (1999) Dietary lipid composition affects blood leucocyte fatty acid compositions and plasma eicosanoid concentrations in European sea bass (Dicentrarchus labrax). Aquaculture 179, 335350.
