Transcatheter closure of muscular ventricular septal defects using the Cardi-O-Fix plug

Published online by Cambridge University Press:  22 February 2021

Zhisong Chen
Affiliation:
Department of Cardiology, The First Affiliated Hospital of Kunming Medical University, Kunming, China
Zhuo Yu
Affiliation:
Department of Cardiology, The First Affiliated Hospital of Kunming Medical University, Kunming, China
Li Su
Affiliation:
Department of Cardiology, The First Affiliated Hospital of Kunming Medical University, Kunming, China
Huasheng Zhang
Affiliation:
Department of Cardiology, The First Affiliated Hospital of Kunming Medical University, Kunming, China
Wei Hu*
Affiliation:
Department of Cardiology, The First Affiliated Hospital of Kunming Medical University, Kunming, China
*
Author for correspondence: Prof. W. Hu, PhD, Kunming Medical University First Affilliated Hospital, Department of Cardiology, 295 Xichang Road, Kunming, Yunnan Province 650032, China. Tel/Fax: +86-0871-65336015. E-mail: 2205577459@qq.com
Rights & Permissions[Opens in a new window]

Abstract

Objective:

The aim of this study was to evaluate the safety and efficacy of the Cardi-O-Fix plug used for the treatment of muscular ventricular septal defects.

Methods:

We retrospectively reviewed the medical records of five patients with muscular ventricular septal defects who underwent transcatheter closure using the Cardi-O-Fix Plug, from November 2017 to August 2019. The median age was 5.1 years (range: 3.2–6.5). Their median body weight was 18.1 kg (range: 13.4–21.8). All the patients underwent detailed two-dimensional Doppler and colour flow imaging by transthoracic echocardiography. The left ventricular median defect size of the muscular ventricular septal defects was 5.6 mm (range: 5.3–7.0). The right ventricular median defect size of the muscular ventricular septal defects was 3.9 mm (range: 3.3–4.7). All the procedures were performed on beating hearts.

Results:

All the patients underwent successful device implantation with no displacement or detachment, they have complete echocardiographic closure at the 1-year follow-up. There were no occluder-related arrhythmia, chordae tendineae rupture, tricuspid insufficiency, aortic regurgitation, haemolysis, or embolisation.

Conclusions:

Application of the Cardi-O-Fix plug appears to be a feasible, safe, and effective treatment option for patients with muscular ventricular septal defects. Longer follow-up periods are warranted to prove the conclusion for long-term outcomes.

Type
Original Article
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyright
© The Author(s), 2021. Published by Cambridge University Press

Muscular ventricular septal defects account for 10–15% of congenital ventricular septal defect,Reference Fu1 the frequency of which is 5.7% in pre-term infants and 1.1–5.3% in term infants.Reference Miyake2 Muscular ventricular septal defects were classified by geographic location as apical, inlet, outlet, and trabecular muscular defects.Reference Lopez, Houyel and Colan3 Currently, transcatheter muscular ventricular septal defects closure is a viable alternative to surgical intervention.Reference Rahmath, Numan and Dilawar4 However, the management of muscular ventricular septal defects often remains a challenge to cardiologists since the defect may be multiple and of varying size and shape. The Cardi-O-Fix plug of Starway Medical Technology Inc. is a permanent implantable device for percutaneous transcatheter closure of abnormal vascular access.Reference Sudhakar, Jose and George5 In this article, we describe our experience for transcatheter closure of muscular ventricular septal defects in five patients using Cardi-O-Fix plug.

Material and methods

Between November 2017 and August 2019, five patients (one male, four females) with muscular ventricular septal defects were selected for transcatheter closure. Two-dimensional echocardiography showed defects in five patients. This study was approved by our local Institutional Review Board. Informed consent was obtained from the parents.

Device

The Cardi-O-Fix plug (Starway Medical Technology Inc., Beijing, China) is constructed from 0.004 in. (0.01 cm) Nitinol wire, with a 5-mm connecting waist approximately as large as the defect to be closed. Polyethylene terephthalate non-woven fabrics are sewn into both retention discs and the waist. Both the left ventricle retention skirt and the right ventricle retention disc are 2 mm larger than the waist. The delivery sheath has a working length of 100 cm, and the leading tip of it is soft and has no an angle (Fig 1).

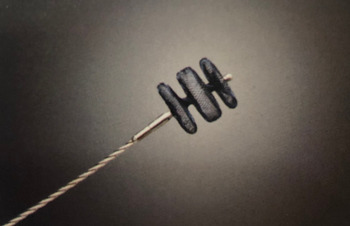

Figure 1. Cardi-O-Fix plug.

Procedure

The procedures were performed under general anaesthesia with transthoracic echocardiography and fluoroscopic guidance. Heparin (100 U/kg) and prophylactic antibiotics (Cefazolin) were administered intravenously during the procedure. The maximum size of the defect was determined by either transthoracic echocardiography (Fig 2a and b) or left ventriculogram (Fig 3).

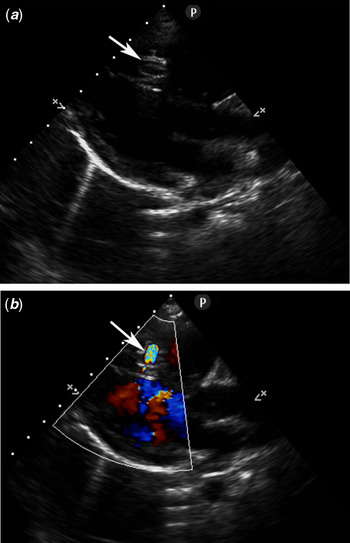

Figure 2. Parasternal long-axis view without (a) and with (b) colour Doppler demonstrating the MVSD (arrow). MVSD, muscular ventricular septal defect.

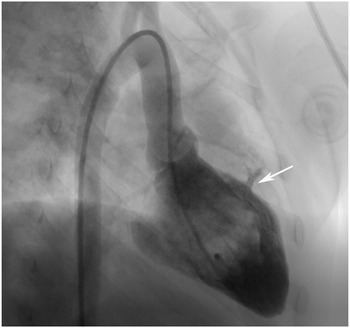

Figure 3. LV angiogram showing the MVSD (arrow) in RAO view. LV, left ventricle; MVSD, muscular ventricular septal defect; RAO, right anterior oblique.

A Terumo wire was threaded through the femoral artery into the left ventricle and across the defect into the right ventricle using 5 F Judkin’s right coronary catheter. A basket net wire was advanced into the right side of the heart from the femoral vein through the MPA2 right side of the heart catheter. Subsequently, the Terumo wire was snared by the basket net wire in the pulmonary artery or superior vena cava and gently pulled out through the femoral vein (Fig 4). After an arterio-venous guidewire circuit was established, a 5 F delivery sheath (Starway Medical Technology Inc.) was passed over the guide wire from the femoral vein and across the defect into the left ventricle. The wire was then removed. Subsequently, the Cardi-O-Fix plug (10–12 mm) screwed onto the delivery cable was pushed into the delivery sheath and advanced into the left ventricle. The distal disc was gently deployed. The delivery cable was then withdrawn together with the long sheath until resistance is felt and the proximal disc was released. The position of the device and residual shunt was evaluated by the transesophageal echocardiogram and left ventriculogram. Once the position was corrected, the Cardi-O-Fix plug was released by rotating the delivery cable in a counter-clockwise direction (Fig 5a and b).

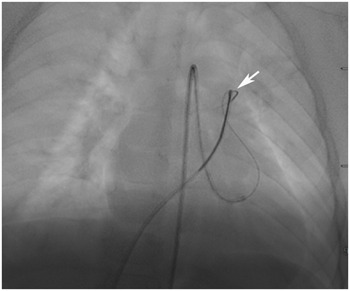

Figure 4. Anterio-posterior view showing the exchange wire snared in the pulmonary artery (arrow).

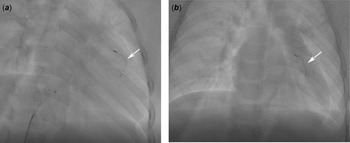

Figure 5. Deployment of the RV disc (arrow) (a) and final cine image showing final device position after deployment (b) RV, right ventricle.

Oral aspirin 3 mg/kg daily was recommended for at least 6 months. Electrocardiography, echocardiography, and chest radiography were performed at 24 hours (Fig 6a and b), 6 weeks, 6 months, and 1 year following the procedure.

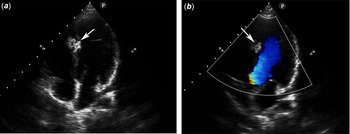

Figure 6. Four-chamber view without (a) and with (b) colour Doppler showing the closure device (arrow).

Results

The baseline characteristics are shown in Table 1. Transcatheter closure of muscular ventricular septal defects was successful in all five cases after deployment of the device using the Cardi-O-Fix plug (10–12 mm). The size of the left ventricular median defect on left ventricular angiography was 5.6 mm (range: 5.3–7.0). The size of the right ventricular median defect on left ventricular angiography was 3.9 mm (range: 3.3–4.7). The QP/QS ratio was 0.8:1.1. The pulmonary artery pressure was 25–35 mmHg. All the patients underwent successful device implantation with no displacement or detachment. No residual shunt was detected on angiography immediately after the procedure and by colour flow imaging after 24 hours (Fig 3). The cardiac catheterisation data for the five patients are shown in Table 2.

Table 1. Baseline characteristics

Abbreviations: F: female; LV: left ventricle; M: male; MVSDs: muscular ventricular septal defects; RV: right ventricle

Table 2. Catheterisation details

Abbreviations: PA: pulmonary artery; Qp: pulmonary blood flow; Qs: systemic blood flow

Follow-up

Patients have complete echocardiographic closure at the 1-year follow-up. There were no occluder-related arrhythmia, chordae tendineae rupture, tricuspid insufficiency, aortic regurgitation, haemolysis, or embolisation.

Discussion

Muscular ventricular septal defects are often located within the trabecular muscle of the right ventricle,Reference Lopez, Houyel and Colan3 which is difficult for surgical closure resulting from technical difficulties in target localisation. In recent years, percutaneous transcatheter closure was introduced as an alternative to surgery since it has the advantages of minimal trauma in surgery and reliable satisfactory outcome. Transcatheter closure of muscular ventricular septal defects was carried out for the first time by Lock et alReference Lock, Block, McKay, Baim and Keane6 using a Rashkind double umbrella. However, transcatheter closure of muscular ventricular septal defects is still challenging because of the complexity and abnormity of anatomical structures. In an original article published in 2006 by Mulyadi et alReference Djer, Haifa Abdul, Mazeni, Hasri and Kandavello7 where seven patients were catheterised with the Amplatzer muscular ventricular septal defects Occluder, all patients had successful transcatheter closure of muscular ventricular septal defects except one who failed due to the acute angulation course of the defect. In another study, Peter et alReference Peter, Claus, Jan-Christian, Viktor and Martin8 performed transcatheter closure of muscular ventricular septal defects in 17 patients; however, they had to abandon implantation in a small patient because the device did not follow the sharp bending of the delivery sheath. Therefore, an effective and feasible technique and device should be considered carefully by the operator.

The Cardi-O-Fix plug (Starway Medical Technology Inc., Beijing, China) is a cylindrical, self-expandable implantable device made from a nitinol wire mesh. The disc and connecting waist are filled with polyethylene terephthalate non-woven fabric which is sewn securely into the cylinder to increase the thrombogenicity of the device. The utility device is characterised in that the torsion angle of double discs can be adjusted within a certain range, and the connecting waist has a good stretching and bending performance. In this series, the Cardi-O-Fix plug was used to close muscular ventricular septal defects in five patients. We demonstrated that Cardi-O-Fix plug can be effectively utilised to close muscular ventricular septal defects in these children.

With the improvement of devices technology, second generation of Amplatzer occluders has many merits, such as softness, low profile, fabric patch-free, easy to be used in cases of ventricular septal defect. GhoshReference Ghosh, Sridhar, Solomon and Sivaprakasham9 et al used Amplatzer Duct occlude II device for closure of ventricular septal defect in aortic valve prolapse and aortic regurgitation. As in another study, Amplatzer vascular plug II was applied in 12 patients and ADO II in 51 patients for transcatheter perimembranous ventricular septal defects closure.Reference Mijangos-Vázquez, El-Sisi and Sandoval Jones10 HuaReference Hua, Aquino and Owada11 et al successfully completed the transcatheter closure in 16 patients with perimembranous ventricular septal defect by using Amplatzer vascular plug II. These results may be suggested that the new generation of Amplatzer occluders is suitable for the treatment of muscular ventricular septal defect. However, the conclusion still needs to be further verified and confirmed by the clinical application. The purpose of this study was to describe our experience with muscular ventricular septal defect patients who underwent transcatheter closure using the Cardi-O-Fix plug due to its excellent curve-passing performance.

Conclusions

In conclusion, transcatheter closure using Cardi-O-Fix plug is safe and effective in patients with muscular ventricular septal defects. A longer follow-up with a larger number of patients is required to determine the clinical and application values of the procedure in this group of patients.

Acknowledgements

We acknowledge past and present members and our colleagues in the department of Cardiology at the First Affiliated Hospital of Kunming Medical University.

Financial support

This wok was financially supported by the Scientific Research Fund Project of Yunnan Provincial Education Department (2020J0169).

Conflict of interest

None.

Ethical standards

This study was approved by the Institutional Research Ethics Committee of Kunming Medical University and followed the guidelines of the Declaration of Helsinki. All study participants signed informed consent forms.

References

Fu, YC. Transcatheter device closure of muscular ventricular septal defect. Pediatr Neonatol 2011; 52: 34.CrossRefGoogle ScholarPubMed
Miyake, T. A review of isolated muscular ventricular septal defect. World J Pediatr 2020; 16: 120128.CrossRefGoogle ScholarPubMed
Lopez, L, Houyel, L, Colan, SD, et al. Classification of ventricular septal defects for the eleventh iteration of the international classification of diseases-striving for consensus: a report from the international society for nomenclature of paediatric and congenital heart disease. Ann Thorac Surg 2018; 106: 15781589.CrossRefGoogle ScholarPubMed
Rahmath, MR, Numan, M, Dilawar, M. Medium to long-term echo follow-up after ventricular septal defect device closure. Asian Cardiovasc Thorac Ann 2016; 24: 422427.CrossRefGoogle ScholarPubMed
Sudhakar, P, Jose, J, George, OK. Contemporary outcomes of percutaneous closure of patent ductus arteriosus in adolescents and adults. Indian Heart J 2018; 70: 308315.Google Scholar
Lock, JE, Block, PC, McKay, RG, Baim, DS, Keane, JF. Transcatheter closure of ventricular septal defects. Circulation 1988; 78: 361368.CrossRefGoogle ScholarPubMed
Djer, MM, Haifa Abdul, L, Mazeni, A, Hasri, S, Kandavello, G. Transcatheter closure of muscular ventricular septal defect using the Amplatzer devices. Heart Lung Circ 2006; 15: 1217.CrossRefGoogle ScholarPubMed
Peter, Z, Claus, C, Jan-Christian, S, Viktor, H, Martin, BES. Transvascular closure of single and multiple muscular ventricular septal defects in neonates and infants < 20 kg. Catheter Cardiovasc Interv 2014; 83: 564570.Google Scholar
Ghosh, S, Sridhar, A, Solomon, N, Sivaprakasham, M. Transcatheter closure of ventricular septal defect in aortic valve prolapse and aortic regurgitation. Indian Heart J 2018; 70: 528532.CrossRefGoogle ScholarPubMed
Mijangos-Vázquez, R, El-Sisi, A, Sandoval Jones, JP, et al. Transcatheter closure of perimembranous ventricular septal defects using different generations of Amplatzer devices: multicenter experience. J Interv Cardiol 2020; 2020: 8948249.CrossRefGoogle ScholarPubMed
Hua, N, Aquino, P, Owada, CY. Transcatheter closure of perimembranous ventricular septal defects with the Amplatzer Vascular Plug-II. Cardiol Young 2016; 26: 11941201.CrossRefGoogle ScholarPubMed
