Introduction

Flow in the interior of ice sheets is dominated by internal deformation, during which dislocation glide occurs between the basal planes of the ice crystal. Deformation parallel to the basal plane is at least an order of magnitude easier to achieve than perpendicular to it (Reference HobbsHobbs, 1974). This dependence of viscosity on orientation leads to the evolution of crystal-orientation fabrics (COFs) with deformation, and makes knowledge of COF important for our understanding of ice-sheet dynamics. The distribution of direct observations of COF in polar regions is biased towards the ice-sheet interiors and ice divides, where measurements are routinely made during ice-core studies (e.g. Reference Gow and WilliamsonGow and Williamson, 1976; Reference GowGow and others, 1997; Reference Thorsteinsson, Kipfstuhl and MillerThorsteinsson and others, 1997; Reference Gow and MeeseGow and Meese, 2007b). Typically, ice-divide observations show nearly randomly distributed c-axis orientations in the near surface. (Crystal orientations are commonly referenced to the c-axis, which is perpendicular to the basal plane, or the distribution of c-axes on a lower-hemisphere Schmidt projection.) With increasing depth, the c-axes rotate towards the vertical due to vertical compression or simple shear. At even greater depths, and if conditions favor recrystallization, newly formed crystals may result in the return of a dispersed distribution. There are fewer direct COF observations away from the main ice divides of the large ice sheets; however, those that do exist (e.g. Law Dome, East Antarctica (Reference Russell-Head and BuddRussell-Head and Budd, 1979; Reference Budd and JackaBudd and Jacka, 1989); Barnes Ice Cap, Baffin Island, Canada (Reference HookeHooke, 1973)) show COF profiles generally similar to those observed at divides, but with some evidence for fabric evolution along flow. (For a comprehensive review see Reference Budd and JackaBudd and Jacka, 1989, and references therein.) Laboratory studies confirm that COF evolves during deformation (e.g. Reference RigsbyRigsby, 1958; Reference Budd and JackaBudd and Jacka, 1989; Reference Wilson, Russell-Head and SimWilson and others, 2003). For example, Reference Budd and JackaBudd and Jacka (1989), starting with isotropic ice, applied different stress regimes to reproduce COF distributions observed in the field, demonstrating that unconfined vertical compressive stress results in c-axis orientations that are distributed about the vertical in either a girdled or distributed cone. Confined compression resulted in a two-maxima fabric, while simple shear results in a strong single-maximum fabric. These findings generally agree with theoretical simulations (Reference AlleyAlley, 1988; Reference Van der Veen and WhillansVan der Veen and Whillans, 1994).

Geophysical methods for measuring COF in ice include radio-echo sounding, direct ultrasonic methods and surface-based active-source seismology. In East Antarctica, Reference FujitaFujita and others (1999) used the different frequency responses of radar reflectivity to contrasts in dielectric permittivity and electrical conductivity in a study between Dome Fuji and the East Antarctic coast. Using a dual-frequency radar, they were able to distinguish between permittivity-induced COF reflectivity and reflectivity due to acidity-induced conductivity changes. Reference MatsuokaMatsuoka and others (2003) combined dual-frequency and multipolarization radar techniques to infer layered single-pole and vertical-girdle COFs in a similar transect from Dome Fuji towards the Antarctic coast. Also in East Antarctica, Reference Eisen, Hamann, Kipfstuhl, Steinhage and WilhelmsEisen and others (2007) correlate an airborne radio-echo sounding return with an abrupt change in COF observed in the EPICA (European Project for Ice Coring in Antarctica) core. In contrast, ultrasonic borehole, core and surface seismic methods utilize the seismic anisotropy of ice, whereby sound waves travel faster along the c-axis than perpendicular to it (Reference BennettBennett, 1968; Reference RöthlisbergerRöthlisberger, 1972). Ultrasonic methods have been used to determine COF in boreholes and ice cores. Reference Bentley, Clough and AdieBentley and Clough (1972) logged the first 1550 m of the 2164 m Byrd Station borehole and showed good correlation with measured compressional wave velocity, V _p, and velocities calculated from direct COF observations from the core. Similarly, Herron and others (1982) measured vertical and horizontal V _p on samples from Greenland’s Dye-3 ice core, and showed a quantitative correlation between the c-axis distribution and the difference between the vertical and horizontal V _p. (Notably, Reference Herron, Langway and BruggerHerron and others (1985) also observed a vertical V _p increase of 167 m s⁻¹ over a 10 m interval ∼200 m above the base of the ice sheet.) Reference Anandakrishnan, Fitzpatrick, Alley, Gow and MeeseAnandakrishnan and others (1994) expanded on the ultrasonic method by using shear waves as well as compressional waves in a study of COF of the GISP2 (Greenland Ice Sheet Project 2) core. By combining these two wave types, they were able to calculate a degree of obliquity of the COF cone.

Surface-based seismic methods, while having the advantage of not requiring a core or borehole, suffer from reduced resolution and lack associated measurements for comparison. Reference Bentley and CraryBentley (1971a) used seismic reflection data, and the azimuthal dependence of velocity from refraction data, to estimate the degree and orientation of anisotropy in West Antarctica. He noted that away from divides COFs were often aligned in the direction of flow and suggested a proportionality between the inclination of COF cones and the longitudinal strain rate. Reference Blankenship and BentleyBlankenship and Bentley (1987) used travel times from intersecting wide-angle seismic profiles near Dome C to infer a vertical anisotropic axis of symmetry resulting from a range of possible c-axis distributions with depth. In Greenland, Reference HorganHorgan and others (2008) reported englacial seismic reflectivity from upstream on Jakobshavn Isbræ, where the englacial reflectivity was attributed to contrasts in COF. The most extensive dataset of englacial seismic reflectivity to date was acquired in the Antarctic during the late 1950s and early 1960s. Researchers using seismic methods for depth sounding noted the persistent presence of a weak englacial reflection (e.g. Reference Bentley and OstensoBentley and Ostenso, 1961). The englacial reflection, R _E, commonly occurred a few hundred meters above the bed and had an amplitude approximately a tenth the strength of the bed reflection (Reference Bentley and CraryBentley, 1971b). Reference Bentley and CraryBentley (1971b) compiled observations of englacial reflectivity in West Antarctica (Fig. 1), and using amplitude analysis and observations of return characteristics argued that the cause of the reflection was entrained morainal material. He eliminated a COF explanation based on the reverberatory nature of the return and insufficient impedance contrast from anisotropy-generated velocity contrasts. Subsequent seismic studies in polar regions have attributed englacial reflectivity to either entrained basal material (Reference SmithSmith, 1996), or contrasts in c-axis orientation (Reference AnandakrishnanAnandakrishnan, 1996; Reference SmithSmith, 1996; Reference HorganHorgan and others, 2008).

Fig. 1. (a) Location map showing study locations in West Antarctica. The grayscale filled circles denote percentage thicknesses for the englacial reflectivity, R _E, reported by Bentley (1971 b). Coastline and grounding line from the Moderate Resolution Imaging Spectroradiometer (MODIS) Mosaic of Antarctica (MOA; T. Haran and others, http://nsidc.org/data/nsidc-0280.html), 2005. Inverted triangles (b–e) denote the seismic reflection profiles reported in this study, all of which have corresponding maps on the right. The empty triangle denotes the deep ice core at Byrd Camp. (b) WAIS Divide profile location. Triangle labeled WSD denotes the location of the WAIS Divide deep ice core. Velocities in this area are <10 m a⁻¹ (Reference Conway and RasmussenConway and Rasmussen, 2009). (c) Up-Thwaites profile locations. (d) Down-Thwaites profile location. (e) Onset-D profile locations. Contours in (c–e) show ice velocities in m a⁻¹ (personal communication from I. Joughin, 2008). Note the difference in scales and contour intervals.

Here we present high-resolution active-source seismic observations from West Antarctica. These data are significant in two respects. Firstly, they provide high-resolution images of englacial structures deep within polar ice, where radio-echo sounding techniques often see only the bed. Secondly, the seismic reflection is directly and simply related to the difference in acoustic properties occurring across the reflection horizon, making the origin and importance of the observations tractable. We show that the structures imaged here most likely result from contrasts in COF, and discuss the importance of these observations for ice-sheet dynamics. Our methods are akin to those used by Reference SmithSmith (1996) and are the modern equivalent of the methods of Reference Bentley and CraryBentley (1971b). As such, they are distinct from ultrasonic studies (e.g. Bentley and Clough, 1972; Reference Herron, Langway and BruggerHerron and others, 1985) and the refraction seismic techniques used by Reference Bentley and CraryBentley (1971a), which all measure velocity. As the seismic reflection technique used here images contrasts in acoustic properties, it is sensitive to contrasts in COF, as opposed to the fabric strength. Our findings, therefore, pertain more to the degree of changes in the fabric pattern in ice sheets than the fabric strength itself.

Data Acquisition and Processing

Oversnow active-source seismic surveying uses land-based techniques, with modifications to suit the environment. (Reviews of active-source seismic methods for glaciological applications are given by Reference RöthlisbergerRöthlisberger (1972), Reference SmithSmith (2007) and Reference Holland and AnandakrishnanHolland and Anandakrishnan (2009).) While the acquisition parameters varied between the surveys reported here (Table 1), the principles were common to all datasets. Seismic profiles were surveyed using kinematic GPS, traditional surveying and electronic distance measuring. The source consisted of an explosive composed mainly of PETN (pentaerythritol tetranitrate) detonated at depth. The shot depth was ideally determined by the density profile but was sometimes limited by drilling capabilities. The receivers were single-component vertical geophones with natural frequencies of 28, 40 or 100 Hz. The geophones were buried at shallow depths of up to 0.5 m to reduce wind noise. Synchronization between the seismic digitizer and the shot triggering was achieved by GPS time signals. Data sampling rates met or exceeded 1000 Hz. Our resolution is determined by the wavelength of our data. At the upper limit, frequencies of 200 Hz result in vertical resolutions of ∼5 m, and horizontal resolutions at 2 km depth of ∼280 m. Depth uncertainties, which are largely composed of uncertainties in the velocity model and picking errors, are approximately ±30 m at the glacier bed.

Data processing followed land-based techniques, with special attention paid to processes that provide improvements to oversnow data, such as deconvolution and static corrections. Two processing routines were used. The first was intended to maximize imaging potential, while the second preserved true amplitudes for subsequent analysis. Processing can be divided into pre-stack and post-stack steps. Pre-stack processing began with the editing of noisy or otherwise bad traces, data despiking and frontal muting of direct arrivals (Reference YilmazYilmaz, 1987). Shot data were then bandpass- and frequency/wavenumber-filtered. Static corrections were applied using surface elevations and a stack-power algorithm (Reference Ronen and ClaerboutRonen and Claerbout, 1985). A two-step deconvolution technique was used to first compress the source wavelet and then to suppress the ghost arrival resulting from the burial of the shot beneath the surface. Prior to stacking, shot data were sorted into common depth point gathers and a normal moveout correction was applied using velocities estimated from constant velocity stacks with a firn velocity model applied. Stacked data were migrated and a post-stack deconvolution applied. The second processing routine preserved true amplitudes and consisted only of noise editing, static corrections and frequency filtering. After horizon digitizing, root-mean-square (rms) window amplitudes were calculated for subsequent analysis.

Profile Data

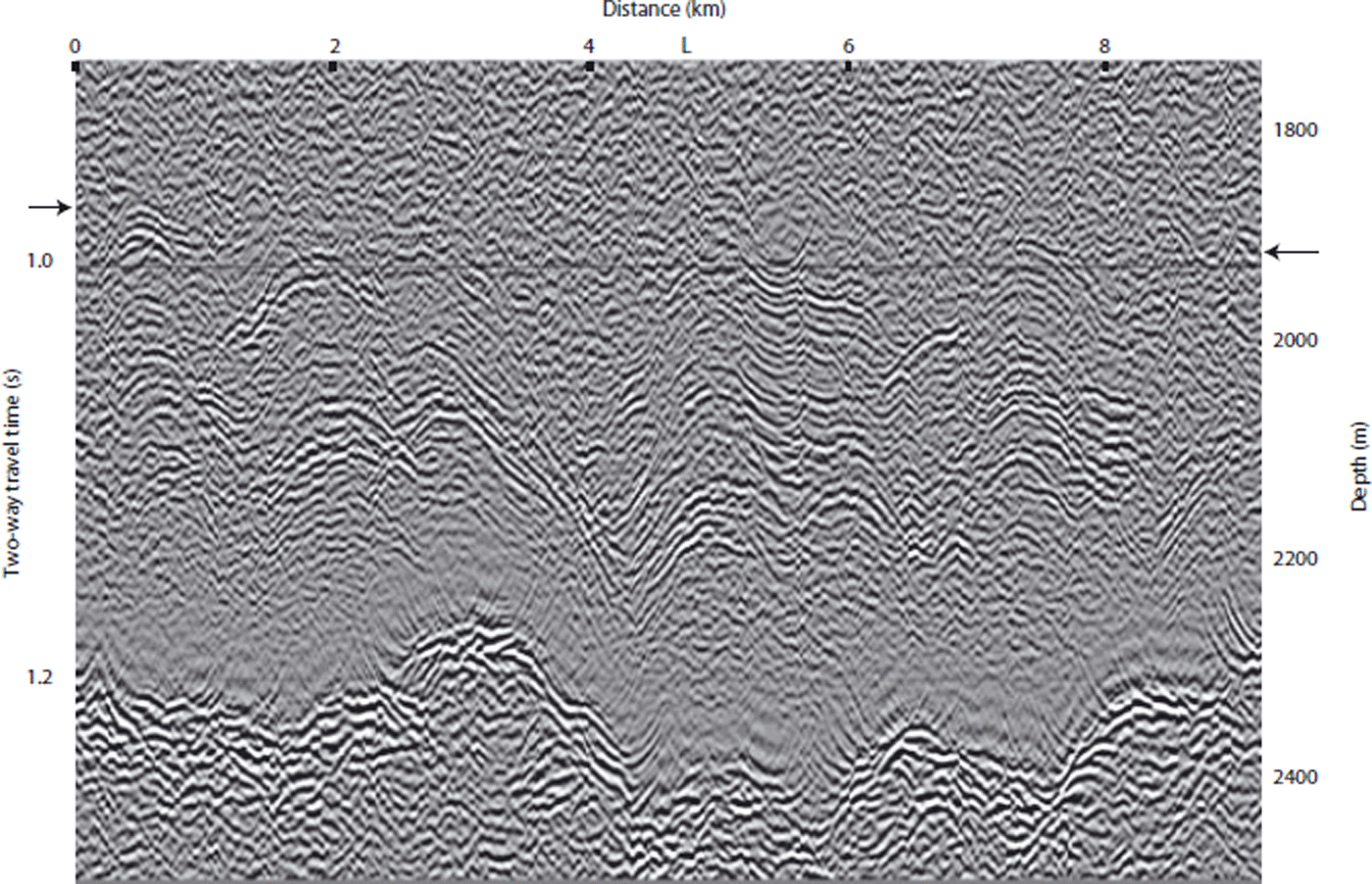

Englacial reflectivity is high frequency (>150–200 Hz), continuous along profiles and traceable between intersecting profiles. The reflectivity is largely bed-conformable; long spatial wavelengths are observed along flow, and shorter spatial wavelengths are observed perpendicular to flow. After deconvolution to remove shot-signature effects, englacial reflectivity varies between a sharp onset single-pulse wavelet and a ringing wave packet. It is common to observe more than one englacial reflection event, and crosscutting structures are also observed. However, it is not possible to ascertain whether the cross-cutting events are caused by out-of-plane features or are representative of actual structure.

The Origin of Englacial Reflectivity

The origin of englacial reflectivity is best examined by considering the seismic reflection coefficient, R. For two layers, layer 1 overlying layer 2, R at normal incidence is determined by

where Z_i = ρ_iV_i is the acoustic impedance of each layer, with density ρ_i and velocity V_i (i = 1, 2). We consider the two cases discussed by Reference Bentley and CraryBentley (1971b) and Reference BurkettBurkett (2000), pure ice and impure ice.

Amplitude Analysis

Seismic amplitude analysis can be used to estimate the contrast in acoustic properties at a reflection interface, thus constraining the types of material occurring at depth. The seismogram records seismic energy, which originates from the source, spreads and attenuates, and reflects off contrasts in acoustic properties at depth. The reflected portion of seismic energy continues to spread and attenuate as it propagates back to the surface. To estimate the contrast in acoustic properties occurring at the englacial reflection horizon we follow the methodology outlined by Reference RöthlisbergerRöthlisberger (1972), Reference Holland and AnandakrishnanHolland and Anandakrishnan (2009) and Reference PetersPeters (2009). Data suitable for our form of amplitude analysis contain an englacial reflector with amplitude A _F, a bed return, A ₁, and a long-path multiple of the bed return, A ₂. These data must be uncontaminated by shot-generated or other noise and must be from a region of relatively flat topography. Suitable data are available at down-Thwaites, up-Thwaites and at the onset of Bindschadler Ice Stream. For an attenuation estimate we use the direct arrival energy, B_i , of Reference Holland and AnandakrishnanHolland and Anandakrishnan (2009):

where subscript i denotes the receiver index, γ the path amplitude factor, α the attenuation factor and s the path length. Rearranging Equation (1), an estimate of attenuation, α, can be obtained from the slope of a linear regression of s_i against ln(B _i /γ_i ). This method requires that the data included in the regression are from sufficiently high offsets that the main difference in the paths is the additional travel path within the ice rather than in the firn. Path lengths, s_i , and path amplitude factors, γ_i , were calculated using ray-tracing through one-dimensional velocity models. The velocity models were estimated using Herglotz–Weichert inversion (e.g. Reference ShearerShearer, 2009) of shallow refraction data acquired at each study location. Path amplitude factors for the direct arrivals used a simplified 1/s_i approximation due to the complexity of the direct-path γ. All other path amplitude factor estimates were calculated using an energy-conservation ray-tube approach (e.g. Reference Medwin and ClayMedwin and Clay, 1977). Our attenuation estimate of α = 0.27 km⁻¹ is in keeping with those of previous studies (Reference Bentley and KohnenBentley and Kohnen, 1976), although we note that this is likely our main source of uncertainty.

The seismic shot size, A ₀, was estimated using the primary and first long-path multiple bed return (A ₁ and A ₂, respectively). Following Reference Holland and AnandakrishnanHolland and Anandakrishnan (2009) we estimate the source magnitude using angles within 10° of normal incidence using

where d ₁ and d ₂ denote the path length of the primary bed reflection and long-path bed multiple, respectively. After calculation of the source amplitude, the englacial reflection coefficient, R _E, and its variation with angle of incidence, Θ, is calculated using:

We first estimate the englacial reflection coefficient for a long-offset profile acquired during the down-Thwaites 2007/08 survey. At down-Thwaites, long-offset surveying targeted a 480 m long section of the bed. During surveying, the source and receivers remained symmetrical about the center of the survey regardless of their separation offset. Englacial reflectivity was traced out to offsets of ∼40° before becoming masked by source-related linear noise. The variation of amplitude with angle of incidence due to a contrast in acoustic properties is described by the Zoeppritz equations (e.g. Reference Aki and RichardsAki and Richards, 1980). We calculate the contrast in properties across the englacial reflection horizon using an optimization search of the Zoeppritz-equation approximations of Reference Aki and RichardsAki and Richards (1980). We assume the impedance contrast is due to a contrast in velocity alone (see previous section for discussion) and that the shear-wave velocity is half the P-wave velocity (equivalent to a Poisson’s ratio = 1/3). As amplitude information is non-uniquely related to velocity, we are unable to constrain the absolute velocities but are able to constrain the velocity contrast. Additional uncertainty is introduced by the assumption of isotropy in the Zoeppritz equations. The presence of anisotropy in the ice sheet will cause the variation of amplitude with angle to differ from that of an isotropic medium (Reference RügerRüger, 1997); however, the relatively weak elastic anisotropy of ice (Reference ThomsenThomsen, 1986) results in only slight differences between anisotropic and isotropic treatments at the incidence angles we report here.

We determine the velocity contrast occurring across the englacial reflection horizon at down-Thwaites to be 110 ± 40 m s⁻¹ (Table 3). We perform the same amplitude analysis on a much shorter profile at our upstream Thwaites camp. At this location the velocity contrast is constrained to be 200 ± 170 m s⁻¹. At the onset region of Bindschadler Ice Stream we calculate the amplitude of the englacial reflector for 26 different shots. Combining these amplitude picks in a single optimization search results in an estimate of velocity contrast for the onset region of 140 ± 50 m s⁻¹. We estimate our uncertainties using a range of attenuation estimates between α = 0.2 and 0.4 km⁻¹. Cone angle combinations capable of causing these velocity contrasts are shown in Figure 10. Our amplitude analysis uses rms amplitudes, so we lose polarity information. However, observations of raw data show that the englacial reflection horizons used in our amplitude analysis have a negative polarity, indicating a downward transition from a faster to a slower velocity. We pick only the most prominent englacial reflector, so the possibility that changes from slower to faster velocities occur remains.

Fig. 10. Cone angle combinations resulting in the velocity contrasts given in Table 3.

Discussion

Observations of englacial reflectivity are widespread in West Antarctica and most likely result from abrupt changes in COF. This is supported by the following. Firstly, observations of englacial reflectivity are consistent with current knowledge of COF development in ice sheets. Secondly, englacial reflectivity caused by COF contrasts requires the simplest genesis, especially at ice divides. Lastly, amplitude analysis shows that observations of englacial reflectivity can be explained by COF changes alone. We begin this discussion by expanding upon these points.

At and near ice divides, direct observations show relatively simple COF structures resulting primarily from the gradual burial and strain of ice. Ice-divide crystal development can be loosely split into three depth zones (e.g. Reference AlleyAlley, 1992; Reference Thorsteinsson, Kipfstuhl and MillerThorsteinsson and others, 1997). In the uppermost zone, grain size increases linearly and COF cone angles gradually tighten from an approximately random distribution to a vertically oriented cone distribution. Below some intermediate depth, polygonization balances crystal growth, resulting in a relatively constant texture (Reference AlleyAlley, 1992), while c-axes continue to rotate under vertical compression and bed-parallel simple shear, leading to a progressive tightening of the vertically oriented COF (Reference AlleyAlley, 1988). This vertical clustering hardens the ice against vertical compression but softens it for simple shear (Reference Budd and JackaBudd and Jacka, 1989). In the lowermost zone, the upper depth of which seems largely temperature-dependent (e.g. Reference Gow and WilliamsonGow and Williamson, 1976; Reference Thorsteinsson, Kipfstuhl and MillerThorsteinsson and others, 1997), dynamic recrystallization fabrics and textures dominate as new fast-growing crystals are formed with c-axes at high angles to the vertical. Some complexity is observed in ice-core measurements. For example, at GISP2, located 28 km west of Greenland’s summit, Reference Alley, Gow, Meese, Fitzpatrick, Waddington and BolzanAlley and others (1997) report folding and overturning beginning at a depth of 70% of the ice-sheet thickness. Reference Alley, Gow, Meese, Fitzpatrick, Waddington and BolzanAlley and others (1997) also report planes of grains cross-cutting the core. These ‘stripes’ consist of c-axes largely parallel to the stripe plane for those within ∼50° of the vertical (Reference Alley, Gow, Meese, Fitzpatrick, Waddington and BolzanAlley and others, 1997). (We note that these stripes are below the resolution of our seismic methods.) In West Antarctica, at Siple Dome, Reference Gow and MeeseGow and Meese (2007a) report the occurrence of a thick zone of tightly clustered and vertically oriented c-axis orientations associated with an abundance of tephra particles at ∼70–80% of the ice thickness. Within this zone, Reference Gow and MeeseGow and Meese (2007b) also note the presence of alternating bands of contrasting COFs.

When comparing our seismic observations with current knowledge of COF, the most obvious association is the onset of recrystallization, which is likely responsible for a single prominent and continuous reflection horizon observed proximal to the bed. A corollary of this, if one takes into account the conditions conducive to recrystallization (Reference Gow and WilliamsonGow and Williamson, 1976; Reference DiPrinzio, Wilen, Alley, Fitzpatrick, Spencer and GowDiPrinzio and others, 2005), is that our seismic observations contain information on the temperature structure and strain history of the ice sheet. Complex COF structures observed in ice cores (e.g. Reference Alley, Gow, Meese, Fitzpatrick, Waddington and BolzanAlley and others, 1997) go some way towards explaining the complicated and often cross-cutting patterns we observe in our seismic data. The existence of complex COF structures is also supported by studies showing the development of COF with strain (Reference AlleyAlley, 1988; Reference Budd and JackaBudd and Jacka, 1989; Reference Wilson, Russell-Head and SimWilson and others, 2003). Observations of abrupt changes in COF associated with impurities (Reference Gow and MeeseGow and Meese, 2007b) may also be responsible for some of the numerous, and relatively continuous, reflection horizons we observe.

A proposed alternate means of generating englacial reflectivity within ice sheets requires large-scale mass transport of basal material (Reference Bentley and CraryBentley, 1971a). While basal material is certainly eroded (Reference Hallet, Hunter and BogenHallet and others, 1996), and basal accretion can lead to such material being incorporated into an ice sheet, we consider these processes unlikely to produce the distinct and continuous reflectivity observed high above the ice-sheet base. (Consider the end-member example of an ice divide, where the flow direction is predominantly vertical and down, and yet englacial reflectivity is observed (Fig. 2)). Additionally, the unusual englacial reflection patterns observed upstream of bed features (Fig. 3) do not support entrainment as an explanation. A bedrock obstacle causes enhanced strain up-glacier of it, and this may cause a change in COF; however, a bedrock obstacle cannot serve as a source for morainal material in ice that is well up-glacier of the obstacle. The possibility remains that some entrainment of englacial materials occurs and is seismically resolvable, but we consider this to be a much rarer phenomenon than COF contrasts.

Amplitude analysis of seismic data is consistent with a COF origin for englacial reflectivity (Table 3; Figs 9 and 10); however, more conclusive evidence might be provided by a targeted study of englacial reflectivity using three-component sensors and recently proposed acquisition methodologies (Reference Holland and AnandakrishnanHolland and Anandakrishnan, 2009). Ultimately, direct sampling of a zone of englacial reflectivity by way of coring and thin-section analysis will provide the necessary ground truth of the COF-contrast origin of englacial seismic reflectivity. We do, however, note that the measurement of englacial reflectivity requires good signal-to-noise ratios. (The englacial reflection coefficient is approximately an order of magnitude less than the bed return.) The absence of englacial reflectivity in a seismic section should therefore not be taken as conclusive proof of the absence of abrupt changes in COF. This is especially the case at ice divides, which commonly correspond to locations of deep firn/ice transitions, resulting in shots being placed at shallower relative depths in the density/depth profile compared with off-divide sites. This placement results in relatively poorer shot coupling, and more energy is trapped within the lower-density firn layer, resulting in stronger linear (coherent) noise.

Our observations add an extra dimension to the current view of COF in ice sheets. As ice flows towards the coast, COF structures increase in complexity. Englacial COF structures generally mimic bed topography, with long-spatial-wavelength features in the direction of flow, and short-wavelength features perpendicular to flow. It is also common to observe more than one reflection horizon, and cross-cutting structures are evident (Figs 3–8). Englacial COF structures are well developed by the time ice has flowed to the onset region of the Bindschadler Ice Stream, and display increasing complexity with downstream distance on Thwaites Glacier. The high frequency of the reflections (∼150–200 Hz) indicates that the transition between different fabric patterns occurs over a few tens of meters at most. The presence of several reflection horizons indicates either that a stepwise change in COF occurs, or that COF alternates between different states (e.g. narrow cone to distributed cone and back again). This latter case was proposed by Reference MatsuokaMatsuoka and others (2003) to explain their multipolarization radar observations from East Antarctica. Stepwise varying or alternating fabrics are most easily explained by invoking variable levels of impurity loading and subsequent differences in fabric development. Variable impurity levels lead to variable COFs, as dissolved impurities impinge grain-boundary migration (Reference Alley, Perepezko and BentleyAlley and others, 1986a,Reference Alley, Perepezko and Bentleyb). For example, Reference Gow and MeeseGow and Meese (2007b) observe fine-grained impure ice with a strong vertical fabric orientation subjacent to coarse-grained pure ice with a distributed fabric. The influence of impurities on the creep of ice and grain-boundary migration is not straightforward, with dependencies on particle size and concentrations (Reference Song, Cole and BakerSong and others, 2005). However, variations in impurity content, which may not be realized as COF variations at an ice divide, may lead to seismically resolvable COF contrasts, due to different responses to strain.

The link between COF and viscosity makes these observations important for ice dynamics. Typically, in the absence of sliding, the shape of the velocity/depth function in a glacier is smoothly varying with a fairly constant velocity in the upper glacier and an increasing velocity/depth gradient as the bed is approached. Contrasts in COF will promote steps in the velocity/depth function as zones less prone to shearing are juxtaposed with zones more favorably oriented. COF contrasts within the ice are also likely to focus deformation resulting in behavior such as the deep thrusting events observed in tiltmeter data on Jakobshavn Isbræ (Reference Lüthi, Funk and IkenLüthi and others, 2003). At Law Dome, East Antarctica, Reference Budd and JackaBudd and Jacka (1989) found that the majority of shearing is accommodated in the third deepest quarter of the ice sheet. Typically, this zone exhibits strong clustering of COF c-axes about the vertical axis. In the bottom quarter of the ice sheet, where we image most englacial reflectivity, Reference Budd and JackaBudd and Jacka (1989) noted that the basal ice exhibits variable strain due to its interaction with subglacial topography. Such interaction with subglacial topography is evident in our data (e.g. Fig. 3), as it is in the findings of Reference FujitaFujita and others (1999). In Figure 3, each major bed feature has a corresponding englacial reflector, originating from upstream, and finishing near the bed feature. Upstream of bedrock features, longitudinally compressive stresses are added to the stress tensor, while downstream of such features longitudinal extension occurs. These variations in the stress regime, all of which are occurring in relatively warm, recrystallizing ice, may be manifesting themselves in COF structures.

Summary and Conclusions

Active-source seismic imaging provides insight into the deformation of ice sheets. Seismic imaging of contrasts in COF offers us an extra dimension in which to investigate the role of crystal fabric in the flow of ice sheets over scales of tens to hundreds of kilometers. The major findings and conclusions of this study can be summarized as follows:

• Englacial seismic reflectivity observed throughout West Antarctica is due to changes in the COF of ice. A COF origin for englacial reflectivity is consistent with current knowledge of COF from ice cores and laboratory studies. A COF origin is also supported by arguments regarding the mechanism of generation of englacial seismic reflectivity and amplitude analysis of seismic reflection data.

• COF patterns within the ice sheet change abruptly and often. These changes are mostly observed in the bottom quarter of the ice sheet. Large-scale COF structures are associated with bed topography, but not always in a straightforward manner. COF structures increase in complexity with distance from ice divides. Because of this, the role and complexity of COF within ice sheets is likely to be greater than that implied by ice cores obtained at or near ice divides.

• COF contrasts are likely caused by the combined effects of strain, impurities and temperature, all of which play a role in the recrystallization of ice. Seismic imaging of englacial COF structures may offer additional insights into the interaction between ice sheets and the substrate over which they flow.

• Knowledge of COF has direct implications for the predictive modeling of polar ice sheets. The role of COF in ice dynamics is likely most important in regions where englacial deformation dominates, and is likely less important once the ice transitions into a regime where sliding or subglacial deformation dominates.

These observations await ground truthing. Ground truthing should combine active-source seismology with ice coring, borehole logging and thin-section analysis. Such a study should occur in an area known to exhibit abundant englacial reflectivity. Once ground truthed, active-source seismic observations will allow the extrapolation of borehole observations over large distances and contribute to our understanding of how ice sheets deform and interact with the underlying bed.
