Composition dependence of hardness and elastic modulus of the cubic and hexagonal NbCo2 Laves phase polytypes studied by nanoindentation

Published online by Cambridge University Press:  28 January 2020

Wei Luo*
Affiliation:
Max-Planck-Institut für Eisenforschung GmbH, Department of Structure and Nano-/Micromechanics of Materials, D-40237 Düsseldorf, Germany
Christoph Kirchlechner
Affiliation:
Max-Planck-Institut für Eisenforschung GmbH, Department of Structure and Nano-/Micromechanics of Materials, D-40237 Düsseldorf, Germany
Juan Li
Affiliation:
Max-Planck-Institut für Eisenforschung GmbH, Department of Structure and Nano-/Micromechanics of Materials, D-40237 Düsseldorf, Germany
Gerhard Dehm
Affiliation:
Max-Planck-Institut für Eisenforschung GmbH, Department of Structure and Nano-/Micromechanics of Materials, D-40237 Düsseldorf, Germany
Frank Stein*
Affiliation:
Max-Planck-Institut für Eisenforschung GmbH, Department of Structure and Nano-/Micromechanics of Materials, D-40237 Düsseldorf, Germany
*
a)Address all correspondence to these authors. e-mail: weiluomse@hotmail.com, w.luo@mpie.de
b)e-mail: stein@mpie.de

Abstract

Regarding the effect of composition on the mechanical properties of intermetallic phases such as Laves phases, there is conflicting information in the literature. Some authors observed defect hardening when deviating from stoichiometric Laves phase composition, whereas others find defect softening. Here, we present a systematic investigation of the defect state, hardness, and elastic modulus of cubic and hexagonal NbCo2 Laves phases as a function of crystal structure and composition. For this purpose, diffusion couples were prepared which exhibit diffusion layers of the cubic C15 and hexagonal C14 and C36 NbCo2 Laves phases, with concentration gradients covering their entire homogeneity ranges from 24 to 37 at.% Nb. Direct observations of dislocations and stacking faults in the diffusion layers as a function of composition were performed by electron channeling contrast imaging, and the hardness and elastic modulus were probed in the diffusion layers along the concentration gradients by nanoindentation.

Type
Article
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyright
Copyright © Materials Research Society 2020

Introduction

Laves phases constitute one of the largest classes of intermetallic phases, and some of them are promising candidates for high-temperature applications because of their high melting points combined with high strength and good creep resistance [Reference Livingston1]. However, the knowledge of their mechanical properties is still limited, and the effect of composition and crystal structure on their mechanical properties is not understood yet. A particularly well-suited Laves phase to study this issue is NbCo2 as it exists as a stable phase in a wide composition range between 24 and 37 at.% Nb, where its crystal structure type changes with increasing Nb content from hexagonal C36 to cubic C15 above 25 at.% Nb and finally to the hexagonal C14 variant existing between 35.5 and 37 at.% Nb [Reference Stein, Jiang, Palm, Sauthoff, Grüner and Kreiner2]. Regarding the effect of composition on the hardness of NbCo2, there is a strong controversy in the literature. Liu and Zhu et al. [Reference Liu, Zhu, Brady, Mckamey and Pike3, Reference Zhu, Pike, Liu and Liaw4] report that the Vickers hardness of NbCr2, NbFe2, and NbCo2 increases as the composition deviates from the stoichiometric value. They proposed that the increase in hardness on both sides of the stoichiometric composition is because of the hardening effect of antisite defects existing at off-stoichiometric compositions. On the contrary, Voß et al. [Reference Voß, Stein, Palm, Grüner, Kreiner, Frommeyer and Raabe5] report that the Vickers hardness of the NbFe2 and NbCo2 Laves phase has a maximum at the stoichiometric composition and decreases as the composition deviates from the stoichiometric composition, indicating defect softening. A big issue that might explain the different findings is the difficulty of producing bulk, single-phase Laves phase alloys. Although a dedicated method described by Voß et al. [Reference Voß, Stein, Palm and Raabe6] was used to produce Laves phase alloys, there are still certain amounts of second phases, impurities, pores, and microcracks inside the alloys. These factors may lead to large scatter in the Vickers hardness and make it difficult to judge about the real compositional trend of the hardness. Voß [Reference Voß7] also studied the composition dependence of elastic properties of Laves phases. He reports that Young’s modulus of the NbFe2 and NbCo2 Laves phases decreases as the composition deviates from the stoichiometric composition, which is consistent with the results for HfCo2 reported by Chen et al. [Reference Chen, Chu, Kotula and Thoma8].

To circumvent difficulties in preparing a series of flawless bulk Laves phase alloys and systematically study the influence of composition and crystal structure on the hardness and elastic modulus of the NbCo2 Laves phase, we follow a different strategy in the present work. It has been demonstrated that the combination of diffusion couples and microscale property measurements is a powerful tool to efficiently map composition–structure–property data [Reference Zhao9]. Here, the diffusion couple technique is used to grow diffusion layers of the C14, C15, and C36 NbCo2 Laves phases. With this method, the same heat treatment and preparation procedures can be maintained for all the Laves phases. As there are continuous concentration gradients in the diffusion layers, the hardness and the elastic modulus as a function of composition can be probed in the diffusion layers along the concentration gradients by nanoindentation. In addition, the electron channeling contrast imaging (ECCI) technique, which is a powerful tool for detecting crystal defects [Reference Zaefferer and Elhami10], was used for the direct observation of dislocations and stacking faults in the diffusion layers of the cubic and hexagonal NbCo2 Laves phases as a function of composition.

Experimental results

Microstructures and concentration profiles of the diffusion couples

Figures 1(a) and 1(b) show the microstructures of the Co/Co–30Nb diffusion couple after annealing at 1200 °C for 96 h and Nb/Co–30Nb diffusion couple after annealing at 1350 °C for 24 h, respectively. To identify the diffusion zones of different types of NbCo2 Laves phase, the diffusion couples were analyzed by electron backscatter diffraction (EBSD). Figures 1(c) and 1(d) show the color-coded EBSD orientation maps of the diffusion zones of the cubic and hexagonal NbCo2 Laves phases. The corresponding concentration profiles are given in Figs. 1(e) and 1(f), respectively.

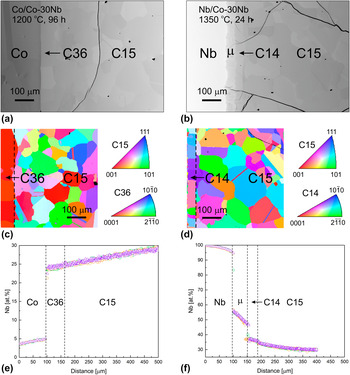

Figure 1: Microstructures of the (a) Co/Co–30Nb and (b) Nb/Co–30Nb diffusion couples, color-coded EBSD mapping of crystallographic orientations of the cubic and hexagonal NbCo2 Laves phases in the (c) Co/Co–30Nb and (d) Nb/Co–30Nb diffusion couple and concentration profiles of the (e) Co/Co–30Nb and (f) Nb/Co–30Nb diffusion couples. The concentration profiles were measured perpendicular to the interfaces of the diffusion layers by EPMA scans. Three EPMA scans were measured for each diffusion couple. The differently colored and shaped symbols in the concentration profiles represent data obtained from different EPMA scans.

Co/Co–30Nb diffusion couple exhibits a diffusion layer of C36 NbCo2 with a thickness of about 70 µm and an extended diffusion zone of C15 NbCo2 with a thickness of 400 µm. Nb/Co–30Nb diffusion couple contains a diffusion layer of C14 NbCo2 and an extended diffusion zone of C15 NbCo2 with thicknesses of 40 and 200 µm, respectively. Grain sizes in the three Laves phase layers are in the 100 µm range. The homogeneity ranges of C36 and C14 NbCo2 obtained from the diffusion couples are approximately 24.0 ± 0.5 to 25.0 ± 0.5 at.% Nb and 35.5 ± 0.5 to 37.0 ± 0.5 at.% Nb, respectively. Although the two hexagonal NbCo2 Laves phases exist in a narrow composition range, the cubic C15 NbCo2 Laves phase is stable in a wide composition range from 25.0 ± 0.5 to 34.3 ± 0.5 at.%. The error bars of the composition values are maximum errors determined from the concentration profiles. The existence of the three structure types of the NbCo2 Laves phase and their measured homogeneity ranges are in agreement with Stein et al. [Reference Stein, Jiang, Palm, Sauthoff, Grüner and Kreiner2].

ECCI observation of defects

The C15 NbCo2 Laves phase in the Co/Co–30Nb diffusion couple reveals only a few dislocations in ECCI images at positions far away from the interface between C15 and C36 NbCo2 [see Fig. 2(a)]. The composition measured in this area by electron probe microanalysis (EPMA) is about 30 at.% Nb. On average, the dislocation density in the C15 NbCo2 Laves phase at 30 at.% Nb is measured to be 6 ± 3 × 1011 m−2. The dislocation density was measured from 5 different grains. The error bar represents the standard deviation.

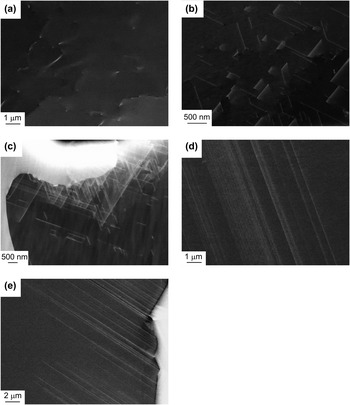

Figure 2: ECC images of (a) C15 NbCo2 at 30 at.% Nb, (b) C15 NbCo2 at 25 at.% Nb (Co-rich phase boundary), (c) C15 NbCo2 at 34.3 at.% Nb (Nb-rich phase boundary), (d) C36 NbCo2 at 24.5 at.% Nb, and (e) C14 NbCo2 at 36 at.% Nb taken from the diffusion couples.

ECCI was performed in different areas of the diffusion couples along the concentration gradient. The C15 NbCo2 Laves phase in a composition range from about 26 to 34 at.% shows individual dislocations, and the dislocation density remains on an approximately constant level. However, a high density of widely extended stacking faults occur in C15 NbCo2 close to the Co-rich phase boundary [Fig. 2(b)], where the composition is about 25 at.% Nb. The width of the stacking faults can be as large as several micrometers, and they are lying on crystallographic {111} planes. The dislocation density of C15 NbCo2 at the Co-rich phase boundary is estimated to be 4 ± 2 × 1012 m−2. Similarly, a high density of extended stacking faults were also observed in C15 NbCo2 close to the Nb-rich phase boundary [Fig. 2(c)], where the composition is about 34.3 at.% Nb. Here, the average dislocation density of C15 NbCo2 is determined to be 5 ± 2 × 1012 m−2. Generally, while C15 NbCo2 reveals only few dislocations (in the order of 1011 m−2) in a composition range from 26 to 34 at.% Nb, the dislocation density of C15 NbCo2 at the Co- and Nb-rich phase boundaries is about one order of magnitude higher. The occurrence of widely extended stacking faults at the Co- and Nb-rich phase boundaries of C15 NbCo2 indicates the stacking fault energy (SFE) of C15 NbCo2 decreases significantly at the boundaries of its homogeneity range. As shown in Figs. 2(d) and 2(e), stacking faults with tens of micrometers in width were observed in the diffusion layers of the C36 and C14 NbCo2 Laves phases.

In the NbCo2 alloy with 25.6 at.% Nb [Fig. 3(a)], C15 NbCo2 exhibits wide stacking faults lying on {111} planes, whereas the C15 NbCo2 alloy with 30 at.% Nb [Fig. 3(b)] shows only a few dislocations and low-angle grain boundaries. High densities of planar defects on the basal plane extending across the whole grains were observed in the alloys of C36 [Fig. 3(c)] and C14 NbCo2 [Fig. 3(d)]. These observations are in agreement with the findings from the diffusion couples.

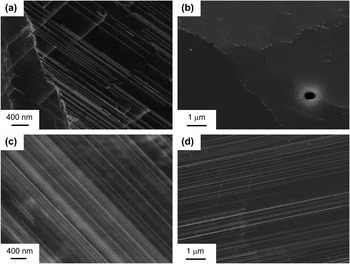

Figure 3: ECC images of (a) C15 NbCo2 at 25.6 at.% Nb, (b) C15 NbCo2 at 30 at.% Nb, (c) C36 NbCo2 at 25.1 at.% Nb, and (d) C14 NbCo2 at 36 at.% Nb taken from the NbCo2 alloys.

Hardness and elastic modulus measured by nanoindentation

As shown in Figs. 4(a) and 4(b), a series of nanoindentation tests were performed in diffusion zones of the cubic and hexagonal NbCo2 Laves phases in the Co/Co–30Nb and Nb/Co–30Nb diffusion couples. No cracks were observed originating from the indents. The hardness and elastic modulus of the cubic and hexagonal NbCo2 Laves phases as a function of the composition are shown in Figs. 5(a) and 5(b), respectively. The hardness of C15 NbCo2 at the stoichiometric composition is 14.7 ± 0.3 GPa and remains unchanged between 28 and 34 at.% Nb within the given accuracy. As the composition approaches the Co-rich phase boundary, the hardness of C15 NbCo2 decreases from 14.5 ± 0.2 GPa at 28 at.% Nb to 13.7 ± 0.4 GPa at 25 at.% Nb. The hardness of the C36 NbCo2 phase at 24.5 at.% Nb is 13.4 ± 0.3 GPa, and the average hardness of C14 NbCo2 at 36 at.% Nb is 14.3 ± 0.3 GPa. The compositional dependency of the elastic modulus is similar to that of the hardness. The elastic modulus of C15 NbCo2 at the stoichiometric composition is 290 ± 8 GPa and remains nearly constant between 26 and 34 at.% Nb. At 25 at.% Nb, the elastic modulus of C15 NbCo2 decreases to 281 ± 9 GPa. The respective values of the elastic modulus of C36 NbCo2 at 24.5 at.% Nb and C14 NbCo2 at 36 at.% Nb are 273 ± 4 and 261 ± 8 GPa. These values are about 6% and 10% lower than for C15 NbCo2 at the stoichiometric composition, respectively.

Figure 4: SEM images showing the indents in the diffusion zones of the cubic and hexagonal NbCo2 Laves phases in the diffusion couples (a) Co/Co–30Nb and (b) Nb/Co–30Nb.

Figure 5: (a) Hardness and (b) elastic modulus of the cubic and hexagonal NbCo2 Laves phases measured from the diffusion couples as a function of composition. At least 15 indents were made for each composition. The error bars of the hardness and elastic modulus represent the standard deviations of the measured data. The compositions of the indents are determined according to their distances to the interface and the concentration profiles of the two diffusion couples [see Figs. 1(e) and 1(f)]. The error bars of the compositions represent the maximum and minimum composition values at the corresponding positions determined from the concentration profiles.

In Fig. 6, the hardness values of the cubic C15 and hexagonal C14 and C36 NbCo2 Laves phase alloys measured in various orientations are shown in the inverse pole figures. It can be seen that the hardness values of the C15 NbCo2 alloys with 25.6 at.% [Fig. 6(b)] and 33 at.% Nb [Fig. 6(c)] are independent of orientation within the given accuracy. The hardness of C36 NbCo2 [Fig. 6(a)] also appears to be independent of the orientation, whereas for the C14 NbCo2 Laves phase [Fig. 6(d)], the hardness measured perpendicular to the basal plane is slightly higher (in the order of 5%) than in the other orientations. In accordance with the results from the diffusion couples, the hardness of C36 NbCo2 at 25 at.% Nb and C14 NbCo2 at 36 at.% is lower than that of C15 NbCo2 and the hardness of C15 NbCo2 decreases as the composition approaches the Co-rich phase boundary.

Figure 6: Hardness of (a) C36 NbCo2 at 25.1 at.% Nb, (b) C15 NbCo2 at 25.6 at.% Nb, (c) C15 NbCo2 at 33 at.% Nb, and (d) C14 NbCo2 at 36 at.% Nb measured from the NbCo2 alloys in various orientations.

Discussion

Effect of composition on the defect state

The dislocation density in Laves phases in the as-cast state is known to be generally very low compared with other metallic alloys. The average dislocation density of as-cast NbCr2 and MgZn2 was reported to be about 5 × 105 m−2 [Reference Kazantzis, Aindow, Jones, Triantafyllidis and De Hosson11] and 1011 m−2 [Reference Kubsch, Paufler and Schulze12], respectively. However, in cases such as NbCo2 where a change in chemical composition can lead to a phase transformation between different structure types, a change in the defect state and density could occur as the composition approaches the phase boundaries between the different structure types. Takata et al. [Reference Takata, Ghassemi-Armaki, Takeyama and Kumar13] reported that whereas the binary C14 Fe–27Nb (at.% Nb) Laves phases exhibit only few dislocations, a high density of widely extended planar defects occur in the ternary C14 Fe–26Nb–33Ni (at.% Nb) Laves phase, which is close to the Ni-rich boundary probably because of a decrease in the stability of the C14 structure toward other hexagonal polytypes such as 4H and 6H structures [Reference Takata, Ghassemi-Armaki, Takeyama and Kumar13]. Another example is the Hf–V–Nb system [Reference Luzzi, Rao, Dobbins and Pope14], where the C14 and C15 Laves phases exist as stable phases in two adjacent phase fields. Luzzi et al. [Reference Luzzi, Rao, Dobbins and Pope14] reported that an increase of stacking fault density was observed in the C15 Hf–V–Nb Laves phase as the composition approaches the homogeneity range of the adjacent C14 polytype. The occurrence of the stacking faults in the C15 Hf–V–Nb Laves phase indicates a decrease in the SFE of the C15 Hf–V–Nb Laves phase at the phase boundary close to the C14 variant. It has been confirmed by high resolution transition electron microscopy that the stacking faults observed at the phase boundaries of the C15 Hf–V–Nb Laves phase are of intrinsic character and the stacking sequence is similar to that of the C14 structure [Reference Luzzi, Rao, Dobbins and Pope14].

As described earlier, the present ECCI observations reveal that the C15 NbCo2 Laves phase exhibits only a few individual dislocations in the composition range from 26 to 34 at.% Nb, whereas at the boundaries close to the hexagonal variants, that is, at about 25.0 at.% Nb and 34.3 at.% Nb, a high density of stacking faults are present in C15 NbCo2. These findings are consistent with the results reported for other Laves phases [Reference Takata, Ghassemi-Armaki, Takeyama and Kumar13, Reference Luzzi, Rao, Dobbins and Pope14].

The crystal structures of Laves phases are usually described as a certain stacking sequence of a fundamental, 4-layered structural unit (X, Y, and Z) which is composed of a single layer of small atoms (A, B, and C) and a sandwiched triple layer (αcβ, βaγ, and γbα) containing two layers of large atoms separated by a layer of small atoms [Reference Hazzledine, Kumar, Miracle and Jackson15]. The X′, Y′, and Z′ quadruple layers are twin-related to the respective X, Y, and Z counterparts. Similar to the formation of stacking faults in the C14 Laves phase [Reference Ma, Fan, Tang, Peng and Ding16], intrinsic and extrinsic stacking faults in the C15 structure can also form through the synchroshear mechanism. As shown in Fig. 7, the stacking sequence of the C15 structure is XYZ. A synchro-Shockley partial dislocation glides through a Z layer and changes the Z layer to Z′. The local stacking sequence becomes XYZ′YZ, and an intrinsic stacking fault is formed as indicated by the “missing” X layer. As the YZ′ stacking is identical to the stacking of the C14 structure, the intrinsic stacking fault can also be seen as a layer of the C14 structure resulting from phase transformation of the C15 structure. If another synchro-Shockley partial dislocation on the adjacent plane glides through the Y layer above the Z′ layer, the Y layer becomes Y′ and the local stacking sequence is XYZ′Y′, which is identical to the stacking sequence of the C36 structure. An additional layer of Y′ is inserted between the Z′ layer and X layer, indicating an extrinsic stacking fault. An intrinsic stacking fault and an extrinsic stacking fault in the C15 structure can be considered as a thin layer of the C14 and C36 Laves phases, respectively. Therefore, the SFE of the intrinsic and extrinsic stacking faults can be estimated from the energy difference between C15 and C14 and between C15 and C36, respectively. Chu et al. [Reference Chu, Ormeci, Mitchell, Wills, Thoma, Albers and Chen17] proposed an equation to estimate the intrinsic SFE:

(1)$$\gamma _{{\rm{ISF}}} = {{24\Delta \varepsilon _{{\rm{C}}15 - {\rm{C}}14} } \over {3^{1{\rm{/}}2} a^2 }}\quad ,$$

where γISF is the intrinsic SFE, ΔεC15–C14 is the energy difference between the C15 and C14 structure, a is the lattice parameter of the C15 Laves phase. Similarly, Sun and Jiang [Reference Sun and Jiang18] reported an equation to calculate the extrinsic SFE:

(2)$$\gamma _{{\rm{ESF}}} = {{48\Delta \varepsilon _{{\rm{C}}15 - {\rm{C}}36} } \over {3^{1{\rm{/}}2} a^2 }}\quad ,$$

where γESF is the extrinsic SFE, ΔεC15–C36 is the energy difference between the C15 and C36 structure, and a is the lattice parameter of the C15 Laves phase.

Figure 7: Schematic illustration of the formation of an intrinsic and an extrinsic stacking fault in the C15 structure. X, Y, and Z represent the quadruple layers in Laves phases, and X′, Y′, and Z′ are the respective twin-related quadruple layers [Reference Hazzledine, Kumar, Miracle and Jackson15]. The stacking faults are marked in red. Similar to the formation of stacking faults in the C14 Laves phase [Reference Ma, Fan, Tang, Peng and Ding16], intrinsic and extrinsic stacking faults in the C15 structure can also be formed through the synchroshear mechanism. As the YZ′ stacking is identical to the stacking of the C14 structure, an intrinsic stacking fault can be seen as a layer of the C14 structure, resulting from phase transformation of the C15 structure. Similarly, as the XYZ′Y′ stacking is identical to that of the C36 structure, an extrinsic stacking fault can be seen as a layer of the C36 structure.

The energy differences between the Laves phases can be calculated from the Gibbs energy functions of the C14, C15, and C36 NbCo2 Laves phases, which are available from He et al. [Reference He, Stein and Palm19]. They performed thermodynamic modeling of the Co–Nb system on the basis of data from experimental phase diagram studies and ab initio calculations. Based on the thermodynamic parameters provided by He et al. [Reference He, Stein and Palm19], the intrinsic and extrinsic SFE for the C15 NbCo2 Laves phase as a function of composition at 1200 °C [Fig. 8(a)] and 1350 °C [Fig. 8(b)] was obtained. These temperatures were chosen as the Co/Co–30Nb and Nb/Co–30Nb diffusion couples were heat treated at 1200 and 1350 °C, respectively. The extrinsic and intrinsic SFE of C15 NbCo2 is relatively low, which is consistent with the very small differences in the total energy of the three NbCo2 Laves phase polytypes [Reference Grüner, Stein, Palm, Konrad, Ormeci, Schnelle, Grin and Kreiner20]. In the composition range between about 24 and 30 at.% Nb, the extrinsic SFE is lower than the intrinsic SFE, which indicates the formation of extrinsic (i.e., C36-like) stacking faults in C15 NbCo2 is energetically more favorable on the Co-rich side. In Fig. 8(a), at 1200 °C, the extrinsic SFE decreases as the Nb content decreases and becomes 0 at 25 at.% Nb, which is the Co-rich boundary of the homogeneity range of C15 NbCo2. This suggests that at 25 at.% Nb, extrinsic stacking faults with extremely large width, that is, C36-like ordered layer stacks, can be readily formed. By contrast, the intrinsic SFE is lower than the extrinsic SFE in the Nb-rich composition range between about 30 and 37 at.% Nb, indicating that stacking faults in Nb-rich C15 NbCo2 can be expected to be of intrinsic (i.e., C14-like) character. Figure 8(b) shows that at 1350 °C, the intrinsic SFE decreases as the Nb content increases. At 34.3 at.% Nb, the calculated intrinsic SFE is already very low (4 mJ/m2), explaining the occurrence of stacking faults in C15 NbCo2 near its Nb-rich phase boundary in the Nb/Co–30Nb diffusion couple.

Figure 8: Calculated intrinsic (i.e., C14-like) and extrinsic (i.e., C36-like) SFE of the C15 NbCo2 Laves phase at (a) 1200 °C and (b) 1350 °C as a function of composition.

Effect of composition on the hardness and elastic modulus

Chen et al. [Reference Chen, Sun, Duan, Huang and Peng21] calculated the elastic properties of a series of transition metal Laves phases with the C15 structure by first-principles calculations. They reported that the calculated Young’s modulus of C15 NbCo2 is 293.4 GPa, which is in reasonable agreement with the present results ranging from 281 to 290 GPa depending on the composition. In the present work, the elastic modulus of C15 NbCo2 is nearly constant from 26 to 34 at.% Nb. However, at 25 at.% Nb, where the SFE decreases and a high density of stacking faults occur, the elastic modulus of C15 NbCo2 decreases. This decrease in modulus of C15 NbCo2 at the Co-rich phase boundary could be related to the reduced thermodynamic phase stability of the C15 structure.

The hardness of C15 NbCo2 is constant from 28 to 34 at.% Nb and decreases as the composition approaches the Co-rich phase boundary. Takata et al. [Reference Takata, Ghassemi-Armaki, Takeyama and Kumar13] reported a similar behavior in the NbFe2-based ternary Laves phase. They found that although the hardness of binary Fe–27Nb (at.% Nb) and the ternary Fe–27Nb–18Ni (at.% Nb) Laves phase is almost identical and independent of orientation, the hardness of ternary Fe–26Nb–33Ni (at.% Nb) Laves phase, which is located close to the Ni-rich phase boundary, is lower and exhibits anisotropic behavior.

Softening of Laves phases with deviation from the stoichiometric composition was reported by several authors [Reference Voß, Stein, Palm, Grüner, Kreiner, Frommeyer and Raabe5, Reference Chen, Chu, Kotula and Thoma8, Reference Müller and Paufler22], but the underlying mechanism is not clear yet. An example is the MgZn2 Laves phase. As the composition deviates from the stoichiometric composition, a decrease in hardness and yield strength was observed accompanied by a reduction in the initial dislocation density [Reference Müller and Paufler22, Reference Paufler23]. The softening effect is attributed to the decrease in the initial dislocation density at off-stoichiometric compositions [Reference Paufler23]. The constitutional defects in Laves phases at off-stoichiometric compositions might also aid the deformation process and contribute to the softening effect [Reference Chen, Chu, Kotula and Thoma8, Reference Takasugi, Yoshida and Hanada24, Reference Nakagawa, Ohta, Kaneno, Inoue and Takasugi25]. Moreover, the softening of the Laves phase is also associated with the decrease in shear modulus at off-stoichiometric compositions [Reference Chen, Chu, Kotula and Thoma8]. However, the present results show that the hardness and elastic modulus of the NbCo2 Laves phase are largely independent of the chemical composition, unless the composition approaches the Co-rich and Nb-rich phase boundaries, where C15 NbCo2 transforms to C36 and C14 NbCo2, respectively. This behavior cannot be well explained by the previous assumptions.

Because of the self-pinning character of synchro-Shockley dislocations in the Laves phases [Reference Kazantzis, Aindow, Triantafyllidis and De Hosson26], the dislocation motion via the synchroshear mechanism [Reference Hazzledine and Pirouz27] in Laves phases is hindered at low temperature, resulting in high Peierls stress of Laves phases [Reference Livingston1]. According to Qiu et al. [Reference Qiu, Huang, Nix, Hwang and Gao28], the indentation hardness of materials with high Peierls stress is given by adding the contribution of the friction stress to that of dislocation hardening:

(3)$$H = H_{{\rm{fric}}} + MC\alpha \mu b\sqrt {\rho _{\rm{s}} \left( {\varepsilon _{{\rm{rep}}} } \right) + \rho _{{\rm{GND}}} \left( h \right)} \quad,$$
(4)$$H_{{\rm{fric}}} = MC\tau _{\rm{p}}\quad ,$$

where H is the indentation hardness at a certain indentation depth h, H fric is the contribution of the friction stress, M is the Taylor factor which relates the shear stress to the normal stress, C is the Tabor factor which converts the equivalent flow stress to hardness, α is a constant taken to be 0.5 in the calculations, τp is the Peierls stress, ρsrep) is the density of statistically stored dislocations (SSDs) at a certain representative strain, ρGND(h) is the density of geometrically necessary dislocations (GNDs) at the corresponding indentation depth h, µ is the shear modulus, and b is the magnitude of the Burgers vector of a perfect dislocation. According to Durst et al. [Reference Durst, Backes, Franke and Göken29], by considering the plastically deformed volume underneath the indenter and introducing a factor f, the density of GNDs is calculated as:

(5)$$\rho _{{\rm{GND}}} \left( h \right) = {{3\tan ^2 \;\theta } \over {2f^3 bh}}\quad ,$$

where θ is the angle between the surface and the indenter, and f is a factor which relates the contact radius and the radius of the plastic zone. A Berkovich diamond indenter (tan θ = 0.358 [Reference Nix and Gao30]) was used, and the indentation depth is about 400 nm for all the indents. The Burgers vector of a perfect dislocation in C15 NbCo2 has a length of 0.4778 nm, and the constant f is assumed to be 2.2 for a Berkovich indenter [Reference Durst, Backes, Franke and Göken29]. According to Eq. (5), the density of GNDs is calculated to be 9.4 × 1013 m−2. In the present work, the initial SSD density of the C15 NbCo2 Laves phase in the bulk and close to the phase boundaries is in the order of 1011 and 1012 m−2, respectively, which is significantly lower than the density of GNDs. Therefore, for the indentation depth of 400 nm, GNDs likely dominate the dislocation density. Assuming a Taylor factor M = 3 and a Tabor factor C = 3 [Reference Durst, Backes, Franke and Göken29], the contribution of dislocation hardening in hardness is about 2.4 GPa according to Eq. (3). The contribution of dislocation hardening is less than one-fifth of the total hardness of the cubic and hexagonal NbCo2 Laves phases. This suggests that the hardness of the NbCo2 Laves phase is mainly dominated by the high Peierls stress.

At the stoichiometric composition, the hardness of C15 NbCo2 measured from nanoindentation is 14.7 GPa. The contribution of the Peierls stress to the hardness is estimated to be 12.3 GPa by subtracting the contribution of dislocation hardening from the measured hardness value. Thus, according to Eq. (4), the Peierls stress τp is calculated to be 1.4 GPa assuming M = 3 and C = 3. The Peierls stress of the ${1 \over 6}\left\langle {11\overline 2 } \right\rangle$-type partial dislocation of C15 NbCr2 [Reference Liu, Shen, Wu, Wang, Li and Liu31] obtained by ab initio calculations ranges from 0.4 to 7.2 GPa, depending on the character of dislocation. The respective value for C15 HfCr2 [Reference Liu, Shen, Wu, Wang, Li and Liu31] ranges from 0.7 to 5.6 GPa. The estimated Peierls stress for C15 NbCo2 of 1.4 GPa is in reasonable agreement with these reported values for C15 NbCr2 and C15 HfCr2.

According to Wang [Reference Wang32], the Peierls stress for edge and screw dislocation is $\tau _{{\rm{edge}}} = {\mu \over {1 - \nu }}\exp \left( { - {{4\pi \varsigma } \over b}} \right)$ and $\tau _{{\rm{screw}}} = \mu \exp \left( { - {{4\pi \varsigma } \over b}} \right)$, respectively. Here, ς is the half-width of the dislocation core. According to this model, the magnitude of the Peierls stress is determined by the geometrical configuration of the dislocation core and the bonding strength [Reference Wang33]. As the shear modulus decreases at the Co-rich and Nb-rich boundaries of the homogeneity range of the NbCo2 Laves phase, the Peierls stress of NbCo2 is expected to decrease at these compositions, leading to a decrease in hardness. However, as the dislocation core of the synchro-Shockley partial dislocation in Laves phases spreads on two adjacent planes, the accuracy of the prediction of Peierls stress using the this model is subjected to large errors [Reference Wang33]. Liu et al. [Reference Liu, Shen, Wu, Wang, Li and Liu31] calculated the Peierls stress of C15 NbCr2 and C15 HfCr2 and the influence of the addition of a third element on the Peierls stress by ab initio calculations. It is shown that the substitution of a third element in C15 NbCr2 and C15 HfCr2 can change the dislocation core width and influence the Peierls stress. This suggests that the constitutional defects of NbCo2 at off-stoichiometric compositions might also affect the Peierls stress by changing the dislocation core width. Further ab initio calculations of the influence of the constitutional defects on the dislocation core structure and Peierls stress of the NbCo2 Laves phase could help shed more light on the effect of composition on the hardness.

Conclusions

In the present work, extended diffusion layers of the cubic C15 and hexagonal C14 and C36 NbCo2 Laves phases with concentration gradients covering the entire homogeneity ranges of these phases were prepared by the diffusion couple technique. Applying ECCI, the influence of composition on the defect state and density in the cubic and hexagonal NbCo2 Laves phases was studied in detail. The hardness and elastic modulus as a function of composition were probed in the diffusion zones of the C14, C15, and C36 NbCo2 Laves phases by nanoindentation. The following main conclusions can be drawn:

  1. (1) The elastic modulus of C14 and C36 NbCo2 is lower than that of C15 NbCo2. In the composition range of C15 NbCo2, the elastic modulus remains nearly constant between 26 and 34 at.% Nb but clearly decreases at the Co-rich phase boundary, where the composition is about 25 at.% Nb. The decrease in the elastic modulus of C15 NbCo2 at the Co-rich phase boundary could be related to the reduced thermodynamic phase stability of C15 NbCo2. The hardness remains constant between 28 and 34 at.% Nb and decreases as the composition approaches the homogeneity ranges of the C14 and C36 variants. The decrease in hardness at off-stoichiometric compositions can be explained as an effect of the reduction in the Peierls stress. Whereas the hardness of C15 and C36 NbCo2 is independent of orientation, C14 NbCo2 shows slightly higher hardness values for the indentation orientation perpendicular to the basal plane.

  2. (2) Only few individual dislocations exist in C15 NbCo2 in the composition range from 26 to 34 at.% Nb, whereas a high density of stacking faults were observed at the Co- and Nb-rich phase boundaries of C15 NbCo2. The diffusion layers of C14 and C36 NbCo2 also exhibit widely extended planar defects.

  3. (3) According to the calculation of the SFE as a function of composition, the formation of extrinsic stacking faults (i.e., C36-like) in C15 NbCo2 is energetically more favorable than the formation of intrinsic stacking faults (i.e., C14-like) as the composition approaches the Co-rich phase boundary where C15 transforms to C36 NbCo2. At the Nb-rich phase boundary, where the C15 structure transforms to C14, it is just the opposite situation. The extrinsic SFE of C15 NbCo2 decreases to 0 at 25 at.% Nb at 1200 °C, whereas the intrinsic SFE decreases to 4 mJ/m2 at 34.3 at.% Nb at 1350 °C. The observed high density of stacking faults at the Co-rich and Nb-rich phase boundaries of C15 NbCo2 is related to the low SFE at these compositions.

Methodology

To grow diffusion layers of the C14, C15, and C36 NbCo2 Laves phases with sufficiently large thickness and grain size, two diffusion couples Co/Co–30Nb and Nb/Co–30Nb (in at.%), which are composed of pure Co, pure Nb, and a C15 NbCo2 alloy with composition of 30 at.% Nb, were prepared. Details of their preparation are described in Ref. [Reference Luo, Kirchlechner, Fang, Brinckmann, Dehm and Stein34]. The Co/Co–30Nb and Nb/Co–30Nb diffusion couples were heat-treated at 1200 °C for 96 h and 1350 °C for 24 h, respectively. The heat treatments were performed in an argon atmosphere. After heat treatment, the diffusion couples were furnace-cooled. Because of the similarities in the structure and bonding of the cubic and hexagonal NbCo2 Laves phases, residual stresses caused by thermal expansion mismatch between the diffusion layers of the NbCo2 Laves phase are expected to be negligible. To exclude the possibility that the defects and mechanical properties of the diffusion layers of the cubic and hexagonal NbCo2 Laves phases are influenced by residual stresses, equilibrium alloys of the cubic and hexagonal NbCo2 Laves phases with different compositions were also tested for comparison. A bulk NbCo2 alloy with nominal composition of 25 at.% Nb that had been heat-treated at 1100 °C for 720 h [Reference Stein, Jiang, Palm, Sauthoff, Grüner and Kreiner2] and four as-cast bulk NbCo2 alloys with nominal composition of 26, 30, 33, and 36 at.% Nb prepared in house by Voß [Reference Voß, Stein, Palm and Raabe6, Reference Voß7] were used in the present work. The compositions and crystal structure types of these NbCo2 alloys are listed in Table I.

TABLE I: Nominal compositions, compositions analyzed by EPMA, and phases determined by XRD of the NbCo2 alloys used in this study. The NbCo2 alloy with nominal composition of 25 at.% Nb was synthesized by Stein et al. [Reference Stein, Jiang, Palm, Sauthoff, Grüner and Kreiner2]. The NbCo2 alloys with nominal compositions of 26, 30, 33, and 36 at.% Nb stem from Refs. [Reference Voß, Stein, Palm and Raabe6, Reference Voß7]. The analyzed compositions and phases are as given in Refs. [Reference Stein, Jiang, Palm, Sauthoff, Grüner and Kreiner2, Reference Voß, Stein, Palm and Raabe6, Reference Voß7].

The microstructures of the diffusion couples and the alloys were observed by optical microscopy (Carl Zeiss light optical microscope) and scanning electron microscopy (SEM; JEOL JSM 6490). The concentration profiles of the diffusion couples were measured by EPMA using a JEOL JXA 8100 instrument with pure Co and Nb as standards. Three scans with a step width of 1 µm were measured for each diffusion couple. The crystallographic grain orientations were determined by EBSD mappings in selected areas of the diffusion couples using an EDAX/TSL detector setup with a Hikari CCD camera and a JEOL JSM 6490 SEM.

Defects in the cubic and hexagonal NbCo2 Laves phases at different compositions were studied by ECCI observations at various positions along the concentration gradients of the diffusion couples using a Zeiss Merlin SEM. For defect analysis, single grains of interest were brought into two-beam conditions, where only one set of lattice planes in the crystal is positioned close to their Bragg angle. If two-beam conditions are satisfied, an individual dislocation appears as a bright line on a dark background with a bright dot, indicating the intersection point with the sample surface and fading contrast with increasing depth below the surface. A stacking fault appears as a bright area of a triangular or trapezoidal shape limited by a straight bright line that indicates the intersection of the stacking fault plane with the sample surface. The contrast of the stacking fault vanishes into the volume owing to the decreasing backscattering yield with increasing depth [Reference Zaefferer and Elhami10].

Nanoindentation testing was performed on both the diffusion couples and the alloys with a Berkovich indenter using an Agilent G200 nanoindenter at a maximum load of 40 mN. The indentation tests were performed at a constant loading rate of 2 mN/s and a hold time of 2 s. Oliver and Pharr’s method [Reference Oliver and Pharr35] was used to determine the hardness and elastic modulus. The hardness H is calculated from the following equation:

(6)$$H = {{P_{\max } } \over A}\quad,$$

where P max is the maximum load and A is the contact area which can be deduced from a well-calibrated tip shape function. The effective elastic modulus E eff is calculated from the contact area and the unloading stiffness through the relation:

(7)$$S = \beta {2 \over {\sqrt \pi }}E_{{\rm{eff}}} \sqrt A \quad,$$

where ß is a constant with a value of 1.034 for a Berkovich indenter and S is the measured stiffness of the upper portion of the unloading data. The elastic modulus of the specimen E is extracted from the effective elastic modulus E eff using the following relation:

(8)$${1 \over {E_{{\rm{eff}}} }} = {{1 - \nu ^2 } \over E} + {{1 - \nu _i ^2 } \over {E_i }}\quad,$$

where E i is the modulus of the indenter, and ν and νi are Poisson’s ratio for the specimen and the indenter, respectively. The values E i = 1141 GPa, νi = 0.07, and ν = 0.282 [Reference Oliver and Pharr35] are used in the calculations.

A series of indents were made in the diffusion zones of the cubic and hexagonal NbCo2 Laves phases along the concentration gradients to study the influence of composition and crystal structure on the hardness and elastic modulus. To avoid the influence of the interface, the indents are at least 15 µm from phase boundaries and consecutive indents. A minimum of 15 indentation tests were performed for each composition. To study the influence of orientation on the hardness, nanoindentation testing was also performed on the NbCo2 alloys in various orientations, and at least 30 indents were made for each orientation in each alloy. All indents were observed by SEM after testing to measure their distance to the interface and to check whether there are microcracks or pores around the indents. All hardness and elastic modulus values are presented with their corresponding standard deviations.
