Status and development of high-power laser facilities at the NLHPLP

Published online by Cambridge University Press:  16 November 2018

Jianqiang Zhu
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Jian Zhu
Affiliation:
Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China Shanghai Institute of Laser Plasma, Chinese Academy of Engineering and Physics, Shanghai 201800, China
Xuechun Li
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Baoqiang Zhu
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Weixin Ma
Affiliation:
Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China Shanghai Institute of Laser Plasma, Chinese Academy of Engineering and Physics, Shanghai 201800, China
Xingqiang Lu
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Wei Fan
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Zhigang Liu
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Shenlei Zhou
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Guang Xu
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Guowen Zhang
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Xinglong Xie
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Lin Yang
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Jiangfeng Wang
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Xiaoping Ouyang
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Li Wang
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Dawei Li
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Pengqian Yang
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Quantang Fan
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Mingying Sun
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Chong Liu
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Dean Liu
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Yanli Zhang
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Hua Tao
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Meizhi Sun
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Ping Zhu
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Bingyan Wang
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Zhaoyang Jiao
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Lei Ren
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Daizhong Liu
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Xiang Jiao
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Hongbiao Huang
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Zunqi Lin
Affiliation:
National Laboratory on High Power Laser and Physics, Shanghai 201800, China Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
Corresponding
Rights & Permissions[Opens in a new window]

Abstract

In this paper, we review the status of the multifunctional experimental platform at the National Laboratory of High Power Laser and Physics (NLHPLP). The platform, including the SG-II laser facility, SG-II 9th beam, SG-II upgrade (SG-II UP) facility, and SG-II 5 PW facility, is operational and available for interested scientists studying inertial confinement fusion (ICF) and a broad range of high-energy-density physics. These facilities can provide important experimental capabilities by combining different pulse widths of nanosecond, picosecond, and femtosecond scales. In addition, the SG-II UP facility, consisting of a single petawatt system and an eight-beam nanosecond system, is introduced including several laser technologies that have been developed to ensure the performance of the facility. Recent developments of the SG-II 5 PW facility are also presented.

Type
Research Article
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyright
© The Author(s) 2018

1 Introduction

Soon after the generation of the first laser in the 1960s, it was recognized that the energetic laser was one of the most promising and potent options to deliver focused power and energy required for inertial confinement fusion (ICF) in the laboratory[Reference Nuckolls, Wood, Theissen and Zimmerman1Reference Holzrichter3]. Moreover, it was also crucial for high-energy-density (HED) scientific research and astrophysics. Therefore, high-power laser science and related technologies have gained impressive and successful improvements over the past several decades. A great number of facilities in many countries have been successfully established to study ICF and HED physics. Among these are the two most powerful facilities; the National Ignition Facility (NIF)[Reference Haynam, Wegner, Auerbach, Bowers, Dixit, Erbert, Heestand, Henesian, Hermann, Jancaitis, Manes, Marshall, Mehta, Menapace, Moses, Murray, Nostrand, Orth, Patterson, Sacks, Shaw, Spaeth, Sutton, Williams, Widmayer, White, Yang and Van Wonterghem4], presently operated with 192 beamlines at the Lawrence Livermore National Laboratory (LLNL) in USA and the Laser Megajoule (LMJ) facility under construction in France[Reference Vivini and Nicolaizeau5]. Potentially larger facilities may be involved to implement the ignition goals in the future[6, Reference He and Zhang7]. In China, such research activities were initiated early and accordingly various facilities were built to greatly promote Chinese ICF studies[Reference Deng and Yu8, Reference He, Deng, Fan, Zhang, Lin, Wang, Zheng and Liu9]. As the major pioneer devoted to high-power laser technology and ICF research in China, the National Laboratory on High Power Laser and Physics (NLHPLP) and its precursor established a succession of facilities over almost 50 years as shown in Figure 1. Early on, a single $10^{10}$ -W laser with a six-beam system was successfully developed in the 1970s. Afterward, a solid-state laser facility ( $10^{12}~\text{W}$ ), originally called the No. 12 Facility, was proposed in 1980 and was fully operational in 1985. This facility was formally named the ‘Shen Guang’ facility in 1986, and distinguished from subsequent SG series facilities by being referred to as the SG-I facility. The SG-I facility with two beams played an important role in the Chinese preliminary ICF research program[Reference Lin, Deng, Fan, Wang, Chen, Zhu, Qian, Shen, Xu, Zhu, Ma, Xie, Zheng, Zhang, Chen, Ling, Huang and Zhang10Reference Lin, Wang, Fan, Gu, Zheng, Zhu, Zhu, Cai, Huang, Dai and Yang12]. Following greater requests for energy, wavelength, and pulse width from laser plasma interaction physics, the SG-II project was launched at the end of 1994, and in the same year, the SG-I facility was dismantled. Six years later, the SG-II facility [Reference He and Zhang7, Reference Zhao13Reference He15] with eight beams was put into normal operation serving various physical experiments. As the works continued, another new high-power laser, named the SG-II 9th beam with a larger diameter, was built and has been operated as a probing beam since 2006. In order to satisfy the increasing demands of physical experiments, the fast ignition scheme for ICF studies, the SG-II upgrade (SG-II UP or SG-II-U) program[Reference Xu, Wang, Li, Dai, Lin, Gu and Zhu16, Reference Gao, Cao, Yang, Ma, Zhu and Lin17] was approved, aiming at setting up a larger nanosecond output system with eight beams at $3\unicode[STIX]{x1D714}$ ( $0.351~\unicode[STIX]{x03BC}\text{m}$ ) and kilojoule-class petawatt (PW) laser system based mainly on the SG-II 9th system, and this SG-II UP facility was commissioned in 2015. More recently, based on a similar technology as the SG-II UP nanosecond system, a new high-power laser prototype of the ICF driver was activated in pursuit of further laser technical improvement, succeeding in exploratory research[Reference Zhu, Zhu, Li, Zhu, Ma, Liu, Liu, Lu, Fan, Liu, Zhao, Zhou, Zhang, Wang, Sun, Wang, Jiao, Ren, Zhang, Miao and Lin18]. This prototype completed more than 100 shot assessments at $1\unicode[STIX]{x1D714}$ ( $1.053~\unicode[STIX]{x03BC}\text{m}$ ) in 2016, and a good performance was obtained. In addition, the SG-II 5 PW facility[Reference Xie, Zhu, Yang, Kang, Zhu, Guo, Zhu and Gao19], as an extreme light source, is under construction and the prior two optical parametric amplifiers have been accomplished. All of the present running facilities constitute an open multifunctional platform[20], and many important achievements[Reference Peng, Zheng, Zhang, Ding, Tang, Zheng, Wen, Liu, Ding, Tang, Feng, Chen, Cheng, Mao, Lui, Jiang, Qi, Qiu, Yao, Xu, Luo, Yu, Zhang, Chen, Lai, Zhu, Zhang, Chang and He21Reference Yuan, Li, Liu, Zhong, Zhu, Li, Wei, Han, Pei, Zhao, Li, Zhang, Liang, Wang, Weng, Li, Jiang, Du, Ding, Zhu, Zhu, Zhao and Zhang28], especially for target physics in ICF research, were witnessed in a series of experiments on this platform.

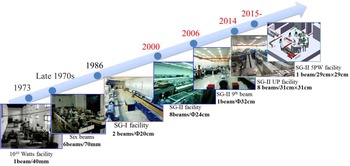

Figure 1. Photographs of a series of laser facilities built at the NLHPLP.

In this paper, the multifunctional experimental platform of the SG-II series facilities is described in Section 2. As the SG-II facility and SG-II 9th laser system have operated for many years, they have already been described in the literature[Reference He and Zhang7, Reference He, Deng, Fan, Zhang, Lin, Wang, Zheng and Liu9Reference He15]. The newly built SG-II UP facility is described in detail in Section 3; this facility combines many advanced techniques with a good output performance. In addition, the recent developments of the SG-II 5 PW facility have the potential of providing extreme physical conditions, and are introduced briefly in Section 4. Finally, a summary is presented in Section 5.

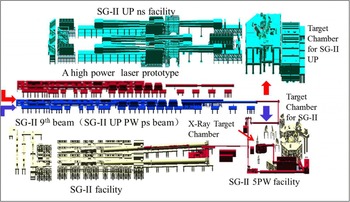

Figure 2. Schematic view of the layout of the multifunctional platform.

2 Status of the multifunctional platform

The overall layout of the multifunctional platform is shown in Figure 2, showing the three target chambers corresponding to the different facilities. These facilities can be operated independently or combined to support extensive experimental capabilities. Accordingly, this platform is of great significance to interested scientists worldwide, providing various physical experiments, such as fast ignition[Reference Gu, Zhang, Shan, Bi, Chen, Wei, Li, Song, Liu, Yang, Yu, Cui, Zhang, Liu, Liu, Wang, Dai, Yang, Yang, Zhang, Wu, Du, Zhou, Cao, Zhang, Wu, Ren, Cai, Wu, Cao, Zhang, Zhou and He25, Reference He, Cai, Wu, Cao, Zhang, He, Chen, Wu, Zhou, Zhou, Shan, Wang, Zhang, Bi, Zhao, Gu, Zhang, Wang, Fang, Lei, Wang, Pei and Fu26] (eight beams used for pre-compression and a picosecond PW beam used for ignition), indirect-drive physics[Reference Chang, Ding, Lai, Huan, Zhu, Zheng, Wang, Zheng, He, Pei, Duan, Zhang, Feng, Chen and Gu29Reference Jing, Li, Lin, Li, Kuang, Huang, Zhang, Huang, Jiang and Ding32], direct-drive physics[Reference Peng, Zheng, Zhang, Ding, Tang, Zheng, Wen, Liu, Ding, Tang, Feng, Chen, Cheng, Mao, Lui, Jiang, Qi, Qiu, Yao, Xu, Luo, Yu, Zhang, Chen, Lai, Zhu, Zhang, Chang and He21], laboratory astrophysics (collisionless shocks)[Reference Zhong, Li, Wang, Wang, Dong, Xiao, Wang, Liu, Zhang, An, Wang, Zhu, Gu, He, Zhao and Zhang23, Reference Yuan, Li, Liu, Zhong, Zhu, Li, Wei, Han, Pei, Zhao, Li, Zhang, Liang, Wang, Weng, Li, Jiang, Du, Ding, Zhu, Zhu, Zhao and Zhang28, Reference Dong, Wang, Lu, Huang, Yuan, Liu, Lin, Li, Wei, Zhong, Shi, Jiang, Ding, Jiang, Du, He, Yu, Liu, Wang, Tang, Zhu, Zhao, Sheng and Zhang33Reference Pile36], equation of state[Reference Shu, Fu, Huang, Wu, Zhou and Ye24, Reference Shu, Huang, Pan, Ye, Zhang, Jia, Fang, Tu, Xie and Fu37], HED physics[Reference Rhee, Nam, Peebles, Sawada, Wei, Vaisseau, Sasaki, Giuffrida, Hulin, Vauzour, Santos, Batani, McLean, Patel, Li, Yuan, Zhang, Zhong, Fu, Hua, Li, Zhang, Zhu, Kim, Jeon, Jeong, Choi, Lee, Sung, Lee and Nam27, Reference Zhao, Yang, Zhang, Yang, Wei, Xiong, Song, Zhang, Bao, Deng, Li, He, Li, Mei, Yu, Jiang, Liu, Ding and Zhang38], and diagnostic instruments development[Reference Shu, Fu, Huang, Wu, Zhou and Ye24, Reference Jiang, Ding, Liu, Zhang, Zheng, Yang, Miao, Huang, Zhang, Li and Cao39Reference Yang, Li, Yi, Wang, Yang, Yang, Liu, Jiang and Ding41]. Each facility is equipped with a basic set of diagnostics, including a spectrometer (X-ray, visible, and UV), streaked slit camera (X-ray and visible), near backscatter imager, energy disperse spectroscopy (electron/ion/proton), nuclear track analysis system, and neutron angular distribution detector. The general output capabilities and facility features are shown in Table 1.

Table 1. Output capability and feature of the present facilities.

The SG-II facility with eight beams can deliver 6 kJ $/$ 1 ns $/1\unicode[STIX]{x1D714}$ and 2.4 kJ $/$ 1 ns $/3\unicode[STIX]{x1D714}$ in routine operation. This facility was first used to explore a switch-free, double-pass, and co-axial $2\times 2$ segment array main amplifier architecture with a beam diameter of 20 cm. Through the precision SG-II program[Reference Lin, Deng, Fan, Wang, Chen, Zhu, Qian, Shen, Xu, Zhu, Ma, Xie, Zheng, Zhang, Chen, Ling, Huang and Zhang10], the output average power imbalance of the eight beams achieved a 6% RMS (root mean square), the pointing accuracy on a cavity target wall surface was measured within a range of $20~\unicode[STIX]{x03BC}\text{m}$ (RMS), and the ability of flexible pulse shaping was implemented. This facility, greatly promoting Chinese ICF research, has had a stable and excellent operation for approximately 20 years; it will be mainly employed for several expansion techniques in the future.

The SG-II 9th system, a master oscillator power amplifier (MOPA) system, can provide 3 kJ $/$ 3 ns $/3\unicode[STIX]{x1D714}$ output in normal operation with a large amplifier aperture of 35 cm. This system has the significant ability of adjusting the pulse width in a wide range from tens of picoseconds to nanoseconds, and can generate different frequency outputs of $1\unicode[STIX]{x1D714}$ , $2\unicode[STIX]{x1D714}$ , $3\unicode[STIX]{x1D714}$ , and $4\unicode[STIX]{x1D714}$ with adjustable polarization. When coupled with the SG-II facility, it acts as an exceptional laser probe with a high synchronization precision of ${<}$ 4.3 ps (RMS). Therefore, many worthy experimental results have been produced by these two facilities and the total operational shots over the past 17 years are given in Figure 3. By December 31st, 2017, a total of 7433 shots had been produced by the SG-II facility for physical experiments. No physical experiments were carried out in 2007 because of a laboratory transformation.

Figure 3. Operational shots of SG-II facility for physical experiments.

The SG-II UP facility is composed of two parts; the SG-II UP nanosecond facility and the SG-II UP PW picosecond system. The SG-II UP nanosecond facility with eight beams is designed to provide 24 kJ $/$ 3 ns $/3\unicode[STIX]{x1D714}$ output with the full-beam size of 31 cm  $\times$ 31 cm (beam size at the level of 1% of the maximum fluence). However, the actual output is greater than this. The facility adopts large-aperture four-pass cavity amplification and two-pass power amplification installed in a $2\times 2$ arrangement. In order to verify the larger output capability at $1\unicode[STIX]{x1D714}$ , we have developed a high-power laser prototype. This prototype with eight beamlines is similar to the SG-II UP nanosecond facility, whereas the maximum $1\unicode[STIX]{x1D714}$ output of this prototype is greater; a ${>}100$ shots assessment validated that the prototype is capable of delivering 16 kJ $/$ 5 ns $/1\unicode[STIX]{x1D714}$ and 17.5 kJ $/$ 20 ns $/1\unicode[STIX]{x1D714}$ . This prototype is of great importance to study the $3\unicode[STIX]{x1D714}$ damage problem in depth and other technology developments. Furthermore, it has the potential of providing an output of $10~\text{kJ}/3\unicode[STIX]{x1D714}$ . In addition, the SG-II UP petawatt picosecond system based on the SG-II 9th amplification chain can supply 1 kJ $/$ 1–10 ps to the SG-II UP target chamber; this petawatt picosecond system utilizes the chirped-pulse amplification (CPA) technique, providing the maximum energy and pulse compression technique to obtain a very short pulse width. The maximum power density and signal to noise ratio (SNR) are $10^{20}~\text{W}/\text{cm}^{2}$ and $10^{8}$ , respectively. By December 31st 2017, a total of 719 shots had been produced on the SG-II UP facility over a four year period for use in physical experiments (see Figure 4).

Figure 4. Operational shots of SG-II UP facility for physical experiments.

The SG-II 5 PW system is designed to provide femtosecond multi-petawatt pulses, employing a three-stage non-collinear optical parametric chirped-pulse amplifier (OPCPA). To date, the previous goals for the two optical parametric amplifiers have been fulfilled, and a chirped pulse with energy of 49.7 J and full-width-at-half-maximum (FWHM) spectrum bandwidth of 85 nm has been achieved. After being compressed, the pulse was greater than 37 J in 21 fs (1.76 PW), and the focal spot was ${\sim}10~\unicode[STIX]{x03BC}\text{m}$ after closed-loop correction by the adaptive optics (AO) when all amplifiers were off. At present, the pulse can be directed to an X-ray target chamber for high-energy physical experiments and laser proton acceleration has been realized.

3 Performance of the SG-II UP facility

The SG-II UP facility is characterized as a typical and new multi-pass amplifier system based on a large-aperture plasma electrode Pockels cell (PEPC) at the NLHPLP. It took nearly 6 years to construct and complete the SG-II UP facility engineering and the demand of the output characteristics for the facility was ultimately satisfied. Many advanced technologies have been adopted to support its construction and some critical optical components have been provided by many suppliers to guarantee the laser performance. Two great developments have been achieved, (1) the transition of the main configuration from a co-axis double-pass of the SG-II facility to the four-pass amplification of the SG-II UP nanosecond system and (2) the realization of a high-energy petawatt laser[Reference Danson, Hillier, Hopps and Neely42] based on CPA using Nd:glass solid-state amplifiers. Photographs of the SG-II UP facility are shown in Figure 5.

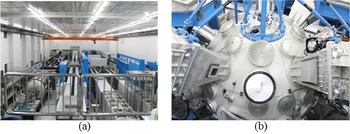

Figure 5. Photographs of the SG-II UP facility: (a) laser hall and (b) target chamber.

Figure 6. Schematic of the optical layout of one beamline.

The SG-II UP facility has been in normal operation for physical experiments since 2016. The nanosecond and picosecond systems can be fired independently or flexibly combined. The picosecond laser system can be used to conduct five shots for a physical experiment each day. The SG-II UP facility can support a variety of HED physical experiments, such as fast ignition and fast electron acceleration and proton radiography. More recently, the SG-II UP facility completed the first-phase indirect-drive fast ignition integrated experiment. In this experiment, the observed neutron gain reached a value of ${>}44$ times, demonstrating that the picosecond laser can effectively heat fuel[Reference Gu, Zhang, Shan, Bi, Chen, Wei, Li, Song, Liu, Yang, Yu, Cui, Zhang, Liu, Liu, Wang, Dai, Yang, Yang, Zhang, Wu, Du, Zhou, Cao, Zhang, Wu, Ren, Cai, Wu, Cao, Zhang, Zhou and He25]. In addition, in the laser proton accelerated experiment, proton beams ${>}50~\text{MeV}$ were measured by a Thomson ion spectrometer. Furthermore, experimental evidence of kinetic effects in indirect-drive ICF hohlraums was shown by the proton radiography on SG-II UP laser facility[Reference Shan, Cai, Zhang, Tang, Zhang, Song, Bi, Ge, Chen, Liu, Wang, Yang, Qi, Tian, Yuan, Zhang, Yang, Jiao, Cui, Zhou, Cao, Zhou, Gu, Zhang, Zhu and He43].

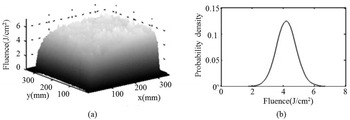

Figure 7. Near-field fluence distributions of the $1\unicode[STIX]{x1D714}$ output (shot No. 20150721002): (a) near-field images and (b) fluence probability distribution.

Figure 8. Far-field fluence distributions of the $1\unicode[STIX]{x1D714}$ output (shot No. 20150721002): (a) enclosed focal spot energy fraction and (b) far-field image.

3.1 SG-II UP nanosecond system

3.1.1 Optical layout

A schematic diagram of the overall layout of one beamline of the SG-II UP nanosecond system is shown in Figure 6. A laser pulse at a nanojoule level energy with a center frequency at 1053  nm is first generated in the front-end subsystem, where the pulse shaping and frequency fine tuning are also optimized[Reference Fan, Jiang, Wang, Wang, Li, Wei, Huang, Lu, Pan, Qiao, Wang, Chen, Zhang, Wen, Xiao, Zhang, Li, Zhu and Lin44]. Then it is successively preamplified to an approximate joule level in the preamplifier module where the spatial control is achieved. Afterward, the pulse is injected into the main amplifier system. As illustrated in Figure 6, there are two bundles containing four beamlines in a $2\times 2$ array in the main amplifier system and the four beamlines share the common preamplifier. The main amplifier system of one beamline includes two amplifiers distributed in two parallel lines: the cavity amplifier (eight slabs) and power amplifier (five slabs). All of the slabs are mounted at Brewster’s angle and are N31 type neodymium doped phosphate glass with thickness 45 mm. The phosphate glass was developed at the Shanghai Institute of Optics and Fine Mechanics[Reference Hu, Chen, Tang, Wang, Meng, Chen, Wen, Hu, Li, Xu, Jiang, Zhang and Jiang45]. The pulse passing through the power amplifier is directed to a cavity amplifier section by three mirrors. A PEPC[Reference Zhang, Wu, Zheng, Zheng, Zhu and Zhang46] is utilized in conjunction with a large-aperture polarizer[Reference Shao, Yi and Zhu47] to control the pulse transport out from the cavity section. Adaptive optics is adopted in the cavity amplifier section to correct the pulse wavefront[Reference Guo, Zhu, Yang, Tang, Xie and Zhu48, Reference Jiang, Zhang, Rao, Ling, Guan, Li, Yang and Shi49]. Meanwhile, two confocal spatial filters, namely the transport spatial filter (TSF) and cavity spatial filter (CSF), are used to restrain the beam modulation. As the pulse again propagates through the power amplifier, after passing the TSF and transport mirrors, it enters the final optics assembly (FOA)[Reference Zhao, Wan, Lin, Shao and Zhu50] and it is frequency converted to 351 nm light, before being focused to the target chamber using the wedged focus lens. In addition, the measurement system[Reference Ouyang, Cui, Zhu, Zhu and Zhu51Reference Tang, Yang, Guo, Ouyang, Tang and Zhu53], centralized control system[Reference Zeng, Liu, Peng, Tang, Ji, Zhu, Liu and Zhu54, Reference Zeng, Tang, Yang, Ji, Jiang, Zhu, Zhu, Liu and Shen55], and automatic alignment system[Reference Gao, Cui, Li, Gong, Lin, Liu, Zhu, Ma, Zhu and Lin56, Reference Wang, Gao, Zhu, Lu, Zhang, Guo, Hui and Zhu57] are all involved to enable the effective operation of the facility.

3.1.2 Output ability

The SG-II UP nanosecond system with all eight beamlines can be operated at a ${\geqslant}$ 5 kJ $/$ beamline for a 1053 nm wavelength demonstrating a $1\unicode[STIX]{x1D714}$ capability of ${>}40~\text{kJ}$ . The near-field characteristic of one beam with a $1\unicode[STIX]{x1D714}$ output energy of ${\sim}5~\text{kJ}$ is shown in Figure 7. It is demonstrated that the near field has good uniformity with a fluence beam contrast ratio (FBC) 0.08. FBC is defined as the standard deviation in the fluence profile divided by its average value[Reference Haynam, Wegner, Auerbach, Bowers, Dixit, Erbert, Heestand, Henesian, Hermann, Jancaitis, Manes, Marshall, Mehta, Menapace, Moses, Murray, Nostrand, Orth, Patterson, Sacks, Shaw, Spaeth, Sutton, Williams, Widmayer, White, Yang and Van Wonterghem4]. The far field of the same shot is shown in Figure 8, with a good quality of the far field as well; the 95% and 80% focused energies are encircled inside 7.5 DL (diffraction limit) and 5 DL, respectively. It should be noted that due to some aspects, such as project needs, engineering costs, and construction foundations, the main amplifier systems for the eight beamlines did not employ the best configuration. This later inspired the actual technical improvements of the SG-II UP nanosecond facility; a high-power laser prototype was launched to further pursue the optimization of the laser design and additionally test the $1\unicode[STIX]{x1D714}$ output potential with investigations of the final optical issues. With some parameters changed by optimization and technical upgrade[Reference Zeng, Tang, Yang, Ji, Jiang, Zhu, Zhu, Liu and Shen55Reference Liu, Zhu, Xu, Shan, Xiao and Zhang64], the outputs of $16~\text{kJ}/5~\text{ns}/1\unicode[STIX]{x1D714}$ and $17.5~\text{kJ}/20~\text{ns}/1\unicode[STIX]{x1D714}$ were achieved based on 16 Nd:glass slabs (11 slabs in the cavity amplifier and 5 slabs in the power amplifier) with 40 mm thickness. More than 100 shots with different pulse widths and energies in the $1\unicode[STIX]{x1D714}$ output were finished in 2016. Figure 9 provides a summary of the $1\unicode[STIX]{x1D714}$ shots fired together with an operating constraint envelope. This constraint (dashed line in Figure 9) is set by considering several aspects, such as the nonlinear growth, beam quality trend, and degree of optic damage. An excellent performance of this prototype was verified and the higher energy output also implies an extremely high fluence density of ${>}19~\text{J}/\text{cm}^{2}$ , compared with amplifiers of apertures ${>}40~\text{cm}$ . The output ability is appreciable and adequate to support the $3\unicode[STIX]{x1D714}$ output. Moreover, the $1\unicode[STIX]{x1D714}$ beam could be expanded to facilitate the final output with a larger aperture for $3\unicode[STIX]{x1D714}$ optical components. For a detailed description of the performance of this prototype, see Ref. [Reference Zhu, Zhu, Li, Zhu, Ma, Liu, Liu, Lu, Fan, Liu, Zhao, Zhou, Zhang, Wang, Sun, Wang, Jiao, Ren, Zhang, Miao and Lin18]. It should be noted that the measured small signal gain coefficient of the main amplifier was ${\sim}5\%~\text{cm}^{-1}$ . When the self-oscillation within the main system was determined and measures were taken to suppress the self-oscillation, the small signal gain coefficient of the main amplifier reached $5.2\%~\text{cm}^{-1}$ , with further testing required to determine the potential.

Figure 9. Experimental output capability for $1\unicode[STIX]{x1D714}$ with different pulse widths of the laser prototype.

The $3\unicode[STIX]{x1D714}$ experimental output capability[Reference Jiao, Shao, Zhao, Wu, Ji, Wang, Xia, Liu, Zhou, Ju, Cai, Ye, Qiao, Hua, Li, Pan, Ren, Sun, Zhu and Lin65] with different pulse widths for the SG-II UP nanosecond system and laser prototype is shown in Figure 10; eight beamlines were delivered to the target chamber and frequency converted to $3\unicode[STIX]{x1D714}$ light. The output energy of a single beam is $3~\text{kJ}/3.3~\text{ns}$ . The maximum energy is $5~\text{kJ}/4.6~\text{ns}$ and corresponding maximum fluence is $5.2~\text{J}/\text{cm}^{2}$ . The total output energy of eight beams is $25~\text{kJ}/3.3~\text{ns}$ in routine operation. We have developed a precision diagnostic system (PDS) based on a type of off-axis imaging system with three spherical mirrors[Reference Liu, Ji, Yang, Zhao, Zhang, Liu, Zhu and Lin52] to measure the key parameters, such as the near and far fields. The near and far fields with a $3\unicode[STIX]{x1D714}$ frequency and $1\unicode[STIX]{x1D714}$ energy of 8.5 kJ are shown in Figure 11. We obtained a relatively good near-field distribution and the fluence beam contrast of the near field was 0.17 with a $3\unicode[STIX]{x1D714}$ energy output of 3.3 kJ; 95% of the focused energy was approximately encircled inside 18 DL. In addition, from Table 1 there is a gap between the $1\unicode[STIX]{x1D714}$ and $3\unicode[STIX]{x1D714}$ output abilities in routine operation. Due to the high fluence output of $1\unicode[STIX]{x1D714}$ , and current $3\unicode[STIX]{x1D714}$ operation limit owing to optics damage, the beam expanding method can be used to decrease the $3\unicode[STIX]{x1D714}$ fluence and effectively utilize the $1\unicode[STIX]{x1D714}$ output. Importantly the beam quality may be improved through beam expanding and clearly more effort should be made to improve the damage resistance at $3\unicode[STIX]{x1D714}$ .

Figure 10. Experimental output capability of $3\unicode[STIX]{x1D714}$ with different pulse widths.

Figure 11. Near and far fields of the $3\unicode[STIX]{x1D714}$ output measured by PDS: (a) near-field image, (b) far-field image, and (c) enclosed $3\unicode[STIX]{x1D714}$ focal spot energy fraction.

The laser power balance is one of the primary criteria representing the overall performance of a laser facility. The laser energy stability is a key factor for the final power imbalance, so the laser energy fluctuation must be carefully controlled during the whole laser propagation and amplification. The energy fluctuation of all eight beams of the SG-II UP nanosecond facility for four consecutive shots is shown in Figure 12, where the average energy fluctuation of all eight beams is 0.9%. The beam-to-beam energy imbalance is 1.9% (RMS). The beam-to-beam instantaneous power imbalance is characterized as an RMS value of the instantaneous power fluctuation between different beams on the same shot. The beam-to-beam RMS instantaneous power is then averaged over a specified time interval to calculate the average RMS power imbalance. For the square wave, the time interval between the rise and fall time point at half the peak intensity is used to obtain the average RMS power imbalance. The results of the power balance from experimental shot 4 are displayed in Figure 13. The average $3\unicode[STIX]{x1D714}$ energy of the eight beams was 3114.5 J and the average power imbalance between the eight beams for the 3-ns square wave was 4.7% (RMS).

Figure 12. $3\unicode[STIX]{x1D714}$ output energy per beam for four consecutive shots.

Figure 13. $3\unicode[STIX]{x1D714}$ output power imbalance for eight beams (shot 4).

A flexible pulse shaping stability is important for power balance control and at present different pulse shapes can be generated with high accuracy, mainly, the Haan pulse[Reference Haynam, Wegner, Auerbach, Bowers, Dixit, Erbert, Heestand, Henesian, Hermann, Jancaitis, Manes, Marshall, Mehta, Menapace, Moses, Murray, Nostrand, Orth, Patterson, Sacks, Shaw, Spaeth, Sutton, Williams, Widmayer, White, Yang and Van Wonterghem4] and step pulse (or named four-shock-shaped pulse)[Reference Casey, Milovich, Smalyuk, Clark, Robey, Pak, MacPhee, Baker, Weber, Ma, Park, Döppner, Callahan, Haan, Patel, Peterson, Hoover, Nikroo, Yeamans, Merrill, Volegov, Fittinghoff, Grim, Edwards, Landen, Lafortune, MacGowan, Widmayer, Sayre, Hatarik, Bond, Nagel, Benedetti, Izumi, Khan, Bachmann, Spears, Cerjan, Gatu Johnson and Frenje66]. This capability is possible as a result of pulse shaping technology combined with an automatic close-loop control technique. Figure 14 shows the experimental pulse shape generated in the front end and output pulse shape at the end of the main amplifier on the laser prototype. It is demonstrated that the experimental Hann pulse output (solid line) is close to the expected pulse shape (dashed line). With a 2-ns window error analysis, the time of the waveform deviation between the actual and expected outputs in the whole window is within 10%, and the deviation of the main pulse is ${<}3\%$ . Overall, the high energy and power balance assures a high stability and high success rate for physical experiments using the SG-II UP nanosecond facility.

Figure 14. Pulse shape in the (a) front end and (b) end of the main amplifier.

It is known that the precise and stable synchronization between different beams is necessary for positive diagnostics, fast ignition research, and high performance implosion research. The SG-II UP facility utilizes the fiber stacker, high-speed electronics, and analog to digital conversion technology[Reference Fan, Jiang, Wang, Wang, Li, Wei, Huang, Lu, Pan, Qiao, Wang, Chen, Zhang, Wen, Xiao, Zhang, Li, Zhu and Lin44] to realize a simultaneous long and short pulse timing precision of ${<}4.1~\text{ps}$ (RMS) within a 2-h test. In addition, high-precision synchronous trigger signals[Reference Zhang, Li, Fan, Wang, Jiang and Shi67], optical and electrical signals for multi-channel physical tests, and diagnostics have been established. The time jitter between the signal and main laser reaches ${\leqslant}3~\text{ps}$ (RMS) and 20 ps (PV).

3.1.3 Main technical developments

Overall, the SG-II UP nanosecond system has driven the fabrication and processing of large optical components[Reference He, Kang, Zhang, Chen, Ding, Yin and Hu68]; furthermore, during the construction it provided many technical developments that ensured a good performance of the system. We introduce some of these as follows.

(1) The introduction to the overall design of a four-pass amplifier configuration based on a large-aperture PEPC is demonstrated. We have written a set of simulation software called Laser Designer[Reference Zhang, Lu, Cao, Yin, Lu, Zhang, Li, Wang, Ma and Zhu69]. In terms of the overall design, the requirements of the output energy, beam quality, safe operation (low risk of optical damage), and physical experiments of the facility were fully considered. Redundant design for the output capacity was adopted to meet the output energy requirement and extend the service life of the facility for physical experiments. In fact, we designed the normal operating energy of the facility based on a cumulative B integral equal to 2.8, equivalent to $5~\text{kJ}/3~\text{ns}/1\unicode[STIX]{x1D714}$ .

For the beam quality, a design incorporating whole system image transfer and aberration elimination was adopted. For example, in the preamplifier system, a zoom spatial filter was used to compensate the optical path difference of the whole system, and the image relaying of eight laser beams was consistent. In the same way, the geometric aberration of the preamplifier system was compensated by the combined lens, and the geometric aberration of the main amplifier system was compensated by the non-spherical lens. Therefore, reasonable elimination of aberration for the whole system was achieved.

To minimize the risk of optical damage the design avoided ghost images of the first to third order in the main amplifier system, and ghost images of the first to fourth order in the final optics system. All types of stray light in the optical path were simultaneously blocked and appropriately absorbed. In order to obtain high contrast and square wave pulses required for physical experiments, the characteristics of the laser pulse temporal waveform shaping were analyzed in detail through the constant correction and improvement of the parameters in the software based on a series of laser shots. The simulation results agreed well with the experimental results, as shown in Figure 15.

Figure 15. Interface of Laser Designer and the comparison of the experimental and simulation results.

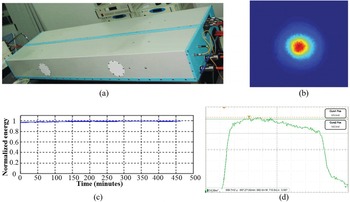

Figure 16. (a) Regenerative amplifier, (b) output near-field profile, (c) energy stability of the regenerative amplifier for 8 h, and (d) square-pulse distortion of the regenerative amplifier.

(2) Flexible control techniques in the front-end, preamplifier system, and a high stability regenerative amplifier were developed. We independently researched and developed a polarization auto-feedback adjustment module based on fiber optic squeezing[Reference Fan, Jiang, Wang, Wang, Li, Wei, Huang, Lu, Pan, Qiao, Wang, Chen, Zhang, Wen, Xiao, Zhang, Li, Zhu and Lin44]. This technique improved the output stability of the nanosecond system. A regenerative amplifier has many advantages, including high gain, high stability, wide spectrum amplification, and high output beam quality, and therefore a high stability wide spectrum regenerative amplifier[Reference Zhang, Jiang, Wang, Fan, Li and Zhu70, Reference Wang, Wei, Jiang, Wang, Qiao, Guo, Fan and Li71] was independently developed, a photograph of which is shown in Figure 16(a). This regenerative amplifier with a good near-field quality [Figure 16(b)] was operated with a 1 Hz repetition rate. With an injected pulse energy of 500 pJ the output energy reached a maximum of 10 mJ (5 ns) after the pulse passed 33 round trips in the cavity. The stability of the output energy for more than 8 h was better than 0.3% (RMS) as shown in Figure 16(c), and it is demonstrated in Figure 16(d) that the square-pulse distortion (SPD) defined as the ratio of the gain at the leading edge of a square pulse to that at trailing edge of the pulse[Reference Wang, Li, Wei and Zhu72] was less than 1.3 : 1.

The spatial shaping in the preamplifier system is important for a good near-field distribution of the final output and improved operating fluence. We adopted spatial beam shaping step by step. A binary mask was used in the front of the preamplifier section to form the soft-edge and beam profile from round to square shape, and another binary mask was used at the end of the preamplifier section to further sharpen the intensity soft edge for improving the energy extraction of main amplifier. An optically addressed spatial light modulator (SLM) developed in 2012[Reference Huang, Fan, Li and Lin73], was utilized to pre-compensate for the nonuniformity of the spatial gain distribution and to pre-block the damage sites of the large-aperture optics. Through a series of optimization, this efficient and integrated optically addressed SLM achieved good performance characteristics. A transmission of up to 85% was obtained (for 1053 nm), wavefront deviation was ${<}0.5\unicode[STIX]{x1D706}$ (for $\unicode[STIX]{x1D6F7}10~\text{mm}$ ), damage threshold reached $100~\text{mJ}/\text{cm}^{2}$ , effective application area was $22~\text{mm}\times 22~\text{mm}$ , and on–off ratio was 100 : 1. A photograph of the optically addressed SLM is shown in Figure 17(a). A demonstration of the spatial control provided by this device is shown in Figure 17(b).

Figure 17. (a) Physical photograph of the optically addressed liquid crystal spatial light modulator and (b) demonstration of near-field spatial intensity control.

Figure 18. Main amplifier of the SG-II UP ns laser facility.

(3) An alignment system has been designed and applied that takes advantage of the imaging characteristics of a multi-pass amplifier. The alignment system[Reference Gao, Cui, Li, Gong, Lin, Liu, Zhu, Ma, Zhu and Lin56, Reference Liu, Zhu, Xu and Fan74, Reference Tang, Guo, Liu, Yang, Jiang, Peng and Zhu75] in the SG-II UP nanosecond facility mainly contains the automatic alignment of the preamplifier, main amplifier, and harmonic conversion systems. According to the features and requirements of the facility, the alignment process was appropriately designed, and alignment sensor packages were developed. Many operational results have shown that all of the functionalities have been implemented, including the far- and near-field alignments. The alignment accuracy of the far field was better than $2.8~\unicode[STIX]{x03BC}$ rad in TSF-2 pinhole and 2.2% in TSF-1 pinhole and all CSF pinholes, and the alignment accuracy of the near field was better than 0.32% of the local beam aperture. In addition, the conversion crystal alignment accuracy was improved to better than $4.7~\unicode[STIX]{x03BC}$ rad. All the results indicate that the alignment system of the SG-II UP nanosecond laser facility is highly accurate, reliable, and easy to use. Alignment process was completed within 30 min before every shot during the routine operation of the facility.

The alignment system for the main amplifier and harmonic conversion crystals of FOA is defined here. The main amplifier of the SG-II UP nanosecond laser facility is shown in Figure 18. The far-field alignment sensors were located in the TSF and CSF and the mirrors used for automatic alignment are indicated in Figure 18.

The CSF alignment package was utilized to align the far field of the four-pass laser beams, as shown in Figure 19. The package was composed of an illumination LED (light-emitting diode), a set of imaging lenses, a grating, a half-wave plate, and a detector (CCD). Four sets of far-field references corresponding to four passed beams (four symmetric circular regions in each set) were fabricated on the grating. As the laser beam and LED illumination beam irradiated the transmission grating, their $+1$ order diffraction beams were collected by the imaging components and an image indicating the information about the relative position of focus point and far-field reference was obtained. Here LED positioned at $-1$ order diffraction direction was used for lighting up the grating area to conveniently get the relative position. The half-wave plate acted as the PEPC to realize the four-pass transmission. So the grating, combined with the illumination LED and imaging lens, was used to simultaneously identify the relative positions of the focal points of the four passed laser beams.

Figure 19. (a) CSF alignment package and (b) resultant image.

Figure 20. TSF alignment package (top) and result images (bottom): (a) crystals, (b) TSF pass-1 pinhole, and (c) TSF pass-2 pinhole.

The TSF alignment package, shown in Figure 20, was mainly utilized for the three alignment demands: the TSF-1 pinhole, TSF-2 pinhole, and crystals alignment. The package included a set of imaging lenses, grating, cube beam splitter, detector (CCD), and an illumination LED, as well as $1\unicode[STIX]{x1D714}$ and $3\unicode[STIX]{x1D714}$ laser sources. The grating provided two far-field references (four symmetric circles) for the two passed laser beams and an additional reference (one circle) for the crystal alignment. For the three references application, the modes were switched by moving the grating, its illumination LED, and part of the imaging component to their preset positions. The $1\unicode[STIX]{x1D714}$ laser source was mainly applied for the alignment of the optical components in the final optics system and the $3\unicode[STIX]{x1D714}$ laser source was used for adjusting the target.

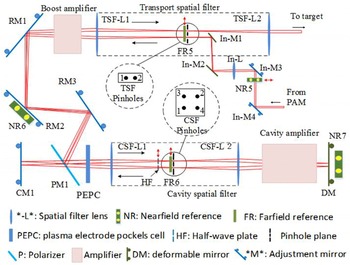

Figure 21. Basic scheme for single-shot beam diagnostics in high-power laser systems with the CMI method.

Figure 22. Comparison of the near-field intensity and phase: (a) near-field intensity reconstructed by the CMI method, (b) near-field intensity measured by direct imaging, (c) near-field phase reconstructed by the CMI method, and (d) near-field phase measured by a Shack–Hartmann wavefront sensor.

Figure 23. Comparison of the far-field intensity: (a) far-field intensity reconstructed by the CMI method, (b) far-field intensity measured by direct imaging, (c) encircled energy of the far-field focal spots in panel (a), and (d) encircled energy of the far-field focal spot in panel (b).

(4) Computational optical imaging has been developed for on-shot, near-field, and far-field parameter characterization of high-power lasers[Reference Pan, Veetil, Liu, Tao, Jiang, Lin, Li and Zhu76Reference Tao, Veetil, Pan, Liu and Zhu78]. This method, based on coherent modulation imaging (CMI), has shown significant advantages for high-power lasers, providing the on-shot parameter characterization not only for the phase and intensity of the near field, but also that of the far-field focal spot distribution. It generally has a compact structure and provides a precision measurement capability for the laser field. Figure 21 shows the basic scheme of the high-power laser system, and the diagnostic setup with the CMI method, including the recording devices (CCD1 and CCD2) and pre-characterized random phase plate (RPP), is shown in the box marked in red. Two of the sampling beams were inserted into the measurement package for direct imaging of the far and near fields with CCD3 and CCD4. The complex amplitude of the light field was reconstructed by iteration calculation using the patterns recorded by CCD1 and CCD2. The near and far fields of the sampling beam were recovered at the same time. The Shack–Hartmann wavefront sensor was used for the near-field wavefront measurement of low spatial frequency.

Figure 22 shows the comparison of the near-field intensity and phase measured by the CMI method and traditional methods. The output power of the pulsed laser is $3762~\text{J}/3~\text{ns}$ . The fill factors of these two methods for the near-field intensity analysis [Figures 22(a) and 22(b)] are 0.723 and 0.702, respectively. From Figures 22(c) and 22(d), there is a significant improvement in the spatial resolution of the phase using the CMI method. Figure 23 shows a comparison of the far-field intensity measured by the CMI method and that by direct imaging. The high dynamic range of the focal spot distribution was obtained by the CMI method in Figures 23(a) and 23(b). Figures 23(c) and 23(d) show the encircled energy of the far-field focal spot corresponding to Figures 23(a) and 23(b), respectively. Using a mathematical analysis, the focal sizes of the 80% and 95% encircled energies from the two methods were similar.

(5) The compact FOA was designed and constructed using a wedged focal lens and specific stray light management[Reference Zhao, Wu, Lin, Wang and Zhu79, Reference Guo, Tang, Jiang, Peng, Zhu and Lin80]. Due to the limited space of the target area, the focal length of the target lens in the SG-II UP laser facility was chosen to be 2.2 m. This relatively short focal lens is shorter than might otherwise be necessary to achieve a fixed harmonic separation, leading to a higher B-integral value for a given laser intensity. Accordingly, it is more difficult to manage the stray light and breakup integral in our compact FOA. Two key techniques have been developed to improve the FOA performance in the engineering process including the measurement and adjustment technique of the wedged focus lens, and stray light management technique based on ground glass as shown in Figure 24. The main feature of the stray light management technique is that it consists of a polygon formed by ground and neutral absorbing glass. Therefore, the output energy at 351 nm of the eight beamlines met the design specifications very well. However, as shown in Figure 7, the high-power laser prototype beam already achieved an energy output up to $16~\text{kJ}/5~\text{ns}/1\unicode[STIX]{x1D714}$ and $17.5~\text{kJ}/20~\text{ns}/1\unicode[STIX]{x1D714}$ . Therefore, there is a significant mismatch between the $1\unicode[STIX]{x1D714}$ and $3\unicode[STIX]{x1D714}$ output capabilities. More effort should be concentrated on the improvement of the damage resistance of the final optics system, such as a reduction in the nonlinear propagation effects, improvement of the damage characteristics of large-aperture optics, and avoidance of online contamination with a novel stray light management strategy to increase the operation fluence to an even higher level.

Figure 24. Stray light management by ground glass protection in the FOA.

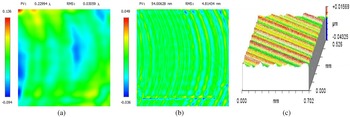

Figure 25. Results of the surface quality of KDP crystal: (a) wavefront distribution after low-pass filter (spatial period ${>}$ 3.3 cm), (b) wavefront distribution after band passed filter (spatial period 2.5 mm–33 mm), (c) surface roughness data measured by surface profiler.

In order to improve the damage threshold of the KDP crystal, the surface qualities of the KDP crystal must be strictly controlled, such as the transmission wavefront, waviness, and roughness. We processed a KDP crystal with ultra-precision single point diamond tools (SPDT). The surface quality results for processing a type II KDP crystal (350 mm $\times$ 350 mm $\times$ 10 mm) are shown in Figure 25. The surface quality of the transmission wavefront, with PV $=$   $0.23\unicode[STIX]{x1D706}$ , RMS PSD1 (in 2.5–33 mm spatial period band) $=$  4.8 nm, surface roughness Rq $=$  2.33 nm, was similar to that of the U.S. LLNL (RMS (PSD1) $=$  5 nm, and Rq $=$  1.5 nm). Therefore, the surface quality of the KDP crystal reached a relatively advanced level.

3.2 SG-II UP PW picosecond system

The SG-II UP PW picosecond system uses a hybrid technology combining OPCPA and Nd:glass CPA to reduce the pre-pulses and gain narrowing effects. A schematic diagram of the system is shown in Figure 26; the front-end subsystem contains an oscillator, a stretcher, and the OPCPA. A mini-compressor with a 100 ps adjustable range is used after the OPCPA to alter the compressed pulse duration and the chirped pulse is injected into the amplifier chain of the SG-II 9th laser system. An AO module is utilized to correct the wavefront distortion to produce an optimum focal spot and an off-axis parabolic mirror (OAPM) with $F$ -number 2.5 at the end to focus the compressed beam to an extremely high intensity.

Figure 26. Schematic diagram of the SG-II UP picosecond laser system.

The first phase of SG-II UP picosecond laser system development was completed in July 2011 and the system realized laser pulse compression energies of $380~\text{J}/5~\text{ps}$ and $370~\text{J}/8~\text{ps}$ . After obtaining the meter-scale large-aperture grating shown in Figure 27, supported by the joint researching team, an output laser pulse energy $1~\text{kJ}/1.7~\text{ps}$ was obtained in September 2016. At the same time, an improved focus spot was obtained, where 50% of the energy was concentrated in a circle with diameter $20.8~\unicode[STIX]{x03BC}\text{m}$ as shown in Figure 28 detected by a CCD camera ( $100~\text{J}/1~\text{ps}$ ), and the focus power density was estimated to be up to $10^{20}~\text{W}/\text{cm}^{2}$ . A pulse contrast of $10^{8}$ , obtained before $-81.75~\text{ps}$ , was measured with a single-shot cross-correlator as shown in Figure 29 [Reference Ouyang, Cui, Zhu, Zhu and Zhu51] when the pulse width and energy were 0.5 ps and 175 J, respectively.

Figure 27. Photograph of large-aperture gratings.

Figure 28. Far field of picosecond laser system.

Figure 29. Pulse contrast measurement result of picosecond laser system[Reference Zhao, Wan, Lin, Shao and Zhu50].

In the process of the construction of the SG-II UP picosecond laser system, many important technical developments and engineering implementations were achieved. Various problems, such as the high-energy acquisition of pulses with wide spectra, the controlling of signal to noise ratio, and focusing and aligning a pulse with a small focal spot size, were solved. Some of these are discussed below.

(1) A stable OPCPA was developed and two-stage OPCPA amplification was employed to amplify chirped pulses to 100 mJ (gain: ${\sim}10^{9}$ ) with pulse spectrum widths of 10 nm. The OPCPA output stability could be controlled within 1%, as shown in Figure 30, mainly benefitting from the high stability pump source and working point design. Through the accumulated operation and assessment, the OPCPA has contributed greatly to the good stability of the whole system, with a ${<}2\%$ deviation between the target and actual energy outputs. This contributed to the high success rate of the picosecond laser system ensuring its availability for physical experiments.

Figure 30. (a) Photograph of the OPCPA and (b) output energy and stability data of the OPCPA.

(2) Wide spectrum amplification using Nd:glass has been implemented[Reference Hui, Zhang, Lu, Zhang, Chen, Jiang, Zhu and Lin81], with a design chosen that balanced the output energy and output spectrum, to reduce the B integral accumulated in the system. The shape of the amplified spectrum was adjusted using quartz birefringent filter as the pulse passed through the OPCPA stage and effective broadening of the spectrum was achieved. In comparison with the results without spectral shaping, the spectrum width increased from 3 to 6 nm, as shown in Figure 31.

Figure 31. Comparison of the spectral results before and after shaping: (a) front-end output and (b) main amplifier output.

(3) The petawatt picosecond compression chamber was designed and constructed to provide a clean vacuum environment for the compression gratings. This was important to solve the problem of irreversible damage to the gratings caused when hydrocarbon is ionized and evaporates to the surface of the grating. The petawatt picosecond compression chamber is the largest non-oil vacuum container used today in high-energy picosecond lasers in China. To reduce the volume, the compression chamber was designed as a rectangular structure, with a length of 13 m and volume of $150~\text{m}^{3}$ . The whole compression chamber was divided into small segments and then the segments were spliced together to improve sealing performance. This method solved the difficulty of processing and transportation. The problem of the cleaning of large vessels was solved by the process of high temperature and pressure water rinsing with a mixed degreasing agent and local high temperature steam cleaning. The problem of high-precision installation of the compression chamber was overcome by digital virtual assembly technology, and the mounting accuracy was up to 2 mm. Figure 32(a) shows exterior of the compression chamber. Figure 32(b) illustrates the layout of the pulse compressor where four tiled multilayer dielectric (MLD) gratings[Reference Hao, Sun, Guo, Shi, Pan, Pang and Zhu82] with 1740 line $/$ mm were employed. Among the four gratings, the last grating G4 was more easily damaged. The intrinsic damage of the gratings took the form of pinpoints, as shown in Figure 33(a). The grating structures were destroyed with multiple shots. The damage depth was only limited within the first several dielectric layers. The damage growth threshold is lower than the intrinsic damage threshold. Once damage was initialized, the damage area grows linearly with shots, as shown in Figure 33(b). The intensity modulation of the damage site plays a major role in damage growth. The damage growth and large-area damage region greatly reduce the diffraction efficiency. The damage resistance of the compressor grating is still a key issue for high-energy operation of petawatt laser systems.

Figure 32. (a) Exterior of the compression chamber and (b) layout of the pulse compressor (plan view); G1, G2, G3, and G4 are the tiled MLD gratings and M1 and M2 are the mirrors; the light passes through G1, G2, G3, and G4 sequentially (arrow direction).

Figure 33. Picosecond laser damage of gratings. (a) Typical morphology of pinpoint damages on the grating and (b) linear damage area growth with shot number.

(4) Adaptive optics has been adopted in the petawatt system. A primary requirement for a petawatt picosecond laser chain is that 50% of the design energy should be contained within a 25- $\unicode[STIX]{x03BC}\text{m}$ focal spot at the target plane. This is approximately four times that of the diffraction-limited 80% energy spot size. To meet the spot size requirement and goal, an AO setup was adopted to correct for wavefront aberrations. The lower-order aberrations could be classified and effectively reduced with this AO setup. A 52-actuator large-aperture deformable mirror (clear aperture $\unicode[STIX]{x1D6F7}38~\text{cm}$ ), shown in Figure 34, was placed at the end of the main amplifier. At the compressor output, a pick-off mirror sends the sampled beam through a relay imaging system to a Shack–Hartmann sensor comprised of an array of $22\times 22$ lenslets ( $35~\unicode[STIX]{x03BC}\text{m}\times 35~\unicode[STIX]{x03BC}\text{m}$ square size for each lenslet). An OPCPA seed laser was used as the sample beam to correct the static aberrations, including the misalignment error and manufacturing defects. This enables the laser chain to produce a wavefront error within $1\unicode[STIX]{x1D706}$ (PV). The pump induced wavefront error was also measured and corrected to ensure the best performance of the system.

Figure 34. Deformable mirror of the AO setup for the petawatt picosecond laser chain.

(5) A target alignment system was established to satisfy the specifications. The petawatt laser auxiliary alignment system (AAS) is shown in Figure 35. This consists of a large-aperture telescope comprising an achromatic lens, OAPM, illumination source, a movable plate, and a beam splitter. For the fast ignition experimental shot, a solid gold cone was positioned at the center of the cylindrical hohlraum target, oriented in the same direction as the petawatt laser, perpendicular to the nanosecond laser entrance holes. The telescope was used to monitor both the focus spot of the petawatt laser and center of the golden cone. During the alignment process, a movable standard plate with a parallelism of $2~\unicode[STIX]{x03BC}\text{rad}$ was moved into the petawatt laser path. The alignment procedure was set to ensure smooth operation. The petawatt laser pointing error was tested through several shots and the recorded results of the offset of the petawatt beam centroids to the net crossings demonstrated that the total pointing error was $9.76~\unicode[STIX]{x03BC}\text{m}$ (RMS). This is less than the required $10~\unicode[STIX]{x03BC}\text{m}$ (RMS) for the detailed description of the target alignment system (see Ref. [Reference Ren, Shao, Zhao, Zhou, Cai, Hua, Jiao, Xia, Qiao, Wu, Ji, Liu, Ju, Pan, Li, Ye, Sun, Zhu and Lin83]).

Figure 35. Laser auxiliary alignment system. CCRS-NW: northwest chamber center reference system; CCRS-NE: northeast chamber center reference system; TAS: target alignment sensor; TPS: target positioning system; OAPM: off-axis parabola mirror[Reference Ren, Shao, Zhao, Zhou, Cai, Hua, Jiao, Xia, Qiao, Wu, Ji, Liu, Ju, Pan, Li, Ye, Sun, Zhu and Lin83].

(6) An apparatus to measure the pulse contrast with a high dynamic range has been developed. The apparatus[Reference Zhao, Wan, Lin, Shao and Zhu50] was based on the single-shot cross-correlation with a fiber array detector. A schematic diagram of the pulse contrast measurement is shown in Figure 36. Cross-correlation has advantages for the pulse contrast measurement over autocorrelation because it identifies noise before or after main pulse. The fiber array was used to convert the spatial signal into a series of temporal signals so that the signal series could be conveniently analyzed by a set of PMTs (photomultiplier tubes) and an oscilloscope. A beam splitter placed after the attenuator, $\text{A}_{1}$ , divided the sampling beam into two parts. The transmitted part as the measured pulse was directed to a cross-correlation generation crystal (XCGC) through a mirror, $\text{M}_{\text{X}1}$ , and a cylindrical lens, $\text{L}_{1}$ . The reflected part as a grating beam went through a second harmonic generation crystal (SHGC) to produce a $2\unicode[STIX]{x1D714}$ pulse. The $2\unicode[STIX]{x1D714}$ pulse subsequently passed through $\text{M}_{\text{X}2}$ , $\text{M}_{\text{X}3}$ , $\text{M}_{\text{X}4}$ , and the cylindrical lens, $\text{L}_{2}$ , before arriving at the XCGC. After the attenuator, $\text{A}_{2}$ , a cylindrical lens, $\text{L}_{3}$ , behind the XCGC coupled the single-shot cross-correlation signal into the fiber array detector and the detector’s sensitivity was improved because of the fiber array and PMT[Reference Zhang, Qian, Yuan, Zhu, Wen and Xu84]. The dynamic range of this measurement was ${>}10^{8}$ due to the fine attenuators, such as the filters ( $\text{A}_{1}$ ), coated mirrors ( $\text{A}_{2}$ ), and fiber attenuators ( $\text{A}_{3}$ ). The removable uncoated parallel plates, $\text{P}_{1}$ , $\text{P}_{2}$ , and $\text{P}_{3}$ could be used for identifying errors due to the saturation of the cross-correlation and calibration. The pulse contrast results of Figure 29 were obtained with this apparatus.

Figure 36. Schematic diagram of the pulse contrast measurement. $\text{M}_{\text{X}1}$ , $\text{M}_{\text{X}2}$ , $\text{M}_{\text{X}3}$ , and $\text{M}_{\text{X}4}$ are mirrors; $\text{P}_{1}$ , $\text{P}_{2}$ , and $\text{P}_{3}$ are removable parallel plates; $\text{L}_{1}$ , $\text{L}_{2}$ , and $\text{L}_{3}$ are cylindrical lenses; $\text{A}_{1}$ , $\text{A}_{2}$ , and $\text{A}_{3}$ are attenuators; SHGC is the autocorrelation generation crystal; XCGC is the cross-correlation generation crystal; and PMT is the photomultiplier tube.

4 Recent development of SG-II 5 PW facility

The SG-II 5 PW facility is under construction and aims to produce $150~\text{J}/30~\text{fs}$ pulses centered at 808 nm. This facility can provide a powerful tool for fundamental and frontier physics. As shown in Figure 37, the SG-II 5 PW facility is completely based on a three-stage non-collinear OPCPA. A detailed description with the technical progress of the SG-II 5 PW system is given in Ref. [Reference Zhu, Xie, Sun, Kang, Yang, Guo, Zhu, Zhu, Gao, Liang, Cui, Yang and Lin85]. All stages are designed for compressed pulses of different power levels for various utilizations. At the first stage amplifier, pulses of 1–10 TW at a repetition of 1 Hz have been generated with an existing pump laser based on Nd:YAG. At the second stage amplifier, pulses of 1 PW level are produced with the 7th beam of the SG-II facility as a pump source that operates one shot per hour. The third stage, as the master amplifier, is under construction and designed to deliver pulses of 5 PW using the SG-II 9th beam as a pump laser. This third stage may be completed in two years. For the master amplifier at present, an LBO crystal with a $15~\text{cm}\times 15~\text{cm}$ aperture is demanded to boost the energy of chirped pulses higher than 250 J and spectrum bandwidth ${>}40~\text{nm}$ . After the amplifiers, the beam is expanded to dimensions of $29~\text{cm}\times 29~\text{cm}$ using a spatial filter (SF5) and injected into the AO system for the wavefront measurements and correction. The chirped pulse of the fine beam quality is compressed by a gold-coated-grating-based compressor and a pulse of 150 J with a 30-fs duration is generated. The compressed pulse is delivered into the focusing system consisting of an OAPM and related detecting elements. The reflected OAPM is applied to realize a smaller focal spot, higher intensity ${\sim}10^{21}~\text{W}/\text{cm}^{2}$ , and better energy concentration (50% energy within a $2\times$ diffraction-limited spot size). At this intensity level a pulse contrast of ${>}10^{8}$ is required to meet the demands of high field experiments. Moreover, supporting systems, such as collimation, measurement, and controlling have been developed for routine operations.

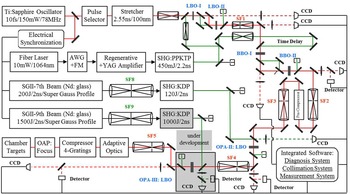

Figure 37. Schematic diagram of the SG-II 5 PW laser facility; OAPM: off-axis parabolic mirror, FM: frequency modulator, and AWG: arbitrary waveform generator.

As illustrated in Section 2, at present, we have completed two stages of the OPCPA amplifiers. A chirped pulse of 49.7 J and a FWHM spectrum bandwidth of 85 nm were obtained. The highest conversion efficiency of up to 41.9% was experimentally demonstrated for the first time in high-energy petawatt-class OPCPAs. The total transmission efficiency of the compressor was ${\sim}75\%$ and energy of the compressed pulse was higher than 37 J. As shown in Figure 38, traces of the compressed pulse were measured with the whole beam diameter by an autocorrelator and the temporal duration was 21 fs (FWHM). A peak power of up to 1.76 PW has been obtained after the second OPCPA stage. The focal spot size imaged by the CCD indicates a $10~\unicode[STIX]{x03BC}\text{m}$ diameter with closed-loop correction by the AO system without the OPCPA operation (Figure 39(a)).

In 2017, the SG-II 5 PW facility became operational and was utilized for high-energy physics experiments. The primary results demonstrated that laser proton accelerations of ${>}7~\text{MeV}$ on average and 10 MeV maximum were achieved for a focused power density exceeding $10^{19}~\text{W}/\text{cm}^{2}$ . The focal spot imaged online by an X-ray pinhole camera is presented in Figure 39(b). This saturated image demonstrates that the spot size at the target was smaller than $45~\unicode[STIX]{x03BC}\text{m}$ in diameter.

Figure 38. Compressed pulse duration with the whole beam diameter.

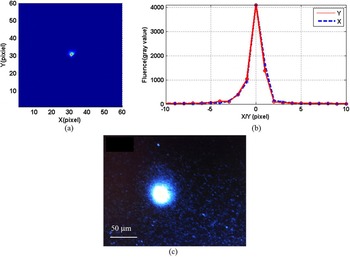

Figure 39. (a) Measured focal spot imaged by the CCD after AO correction without optical parametric amplification, (b) horizontal and vertical line-outs of focal spot image, and (c) focal spot imaged by an X-ray pinhole camera in the high-energy experiments.

We have developed integrated software with a user-friendly interface to implement diagnostics, collimation, and measurement so that the real-time data, including the status of affairs (date, time, serial number, and abnormal operation information of every shot), amplified pulse energy, spectrum, pulse waveform, near field, and far field were automatically collected, processed, and stored. In both the pump and signal laser beams of all of the amplifiers, at the incident and output positions auto-collimation systems including the CCD and detectors were installed, which ensured the high OPCPA conversion efficiency and long optical path transmission. The pulse width after compression was monitored by the home-made full-beam single-shot autocorrelator and accurately controlled by a mini-compressor after OPCPA-I. The mini-compressor not only compensated the residual dispersion between the stretcher and main compressor, but also eliminated the parametric fluorescence from the OPCPA, improving the temporal contrast of the pulse. The spatial filter designs were based on the image relay for beam expansion, high spatial frequency noise filter, and amplified optical parametric fluorescence restriction. For better routine operation, each spatial filter was equipped with a computer-controlled auto-collimation system with actively driven mirrors and an online measurement unit. However, the use of large-aperture refractive spatial filters in a broadband ultra-short pulse laser system could introduce considerable chromatic aberration resulting in degradation of the spatiotemporal quality of the output pulse[Reference Zhu, Xie, Kang, Yang, Zhu, Guo, Sun, Gao, Cui, Liang, Yang, Zhang and Zhu86]. Hence a chromatic aberration compensator has been designed and will be inserted after OPCPA-I to solve this issue.

Figure 40. Spectrum of the first OPCPA stage.

At the beginning of 2018, the latest outline of work has been optimized for the first stage of the OPCPA so that its performance has been greatly improved. The prior two LBO crystals (LBO-I and LBO-II) were replaced by BBO crystals with a parametric bandwidth of ${\sim}100~\text{nm}$ , and the beam diameters of both the pump and signal were correspondingly expanded to 4 mm to reduce the effects of spatially coupled near-field drift due to environmental vibration. By numerical simulations, the lengths of all four BBO crystals, as well as the pump energy allocations for each stage, were optimized. With pump pulses of 390 mJ, the sub-amplifiers based on BBO-III and BBO-IV have delivered signal pulse energy of 160 mJ, indicating a pump-to-signal conversion efficiency of ${\sim}41\%$ . The total net gain of the first stage of the OPCPA has a maximum value of $8\times 10^{8}$ , and the bandwidth was improved from 62 to 80 nm (FWHM) (see Figure 40). The spectral profile indicates that the amplification for the last BBO crystal worked in an unsaturated region that is useful for limiting the optical parametric fluorescence[Reference Tao, Veetil, Pan, Liu and Zhu78]. As shown in Figure 41, the stability of the first OPCPA was ${\sim}1.67\%$ RMS, corresponding to a pump laser stability of 1% RMS. The PW-scale amplifier is expected to benefit from the improvement of signal pulses from OPCPA-I.

Figure 41. Energy and stability of signal pulses from the first OPCPA stage.

5 Summary

The multifunctional platform including a series of high-power laser facilities at NLHPLP is reviewed. The platform has played an important role in the ICF and HED research fields. The SG-II series facilities available to international users can be operated independently or in combination, with the capability of a wide range of pulse widths. As a newly built facility, the SG-II UP facility, consisting of a single petawatt picosecond system and eight-beam nanosecond system, has achieved the required outputs, and several key technologies have been developed to ensure the performance of the facility. In addition, various physical experiments have been performed with the SG-II 5 PW facility. It is expected that the running platform will continue to provide experimental shots for ICF and HED research. The NLHPLP will continue to enhance the abilities of designing, constructing, and operating high-power facilities, enabling possible larger-scale laser drive developments. Meanwhile, in view of the present large challenges in achieving ignition, we will further improve the openness of our facilities to improve international cooperation.

Acknowledgements

We would like to thank the institutions and individuals who have provided useful discussions and assistance to the NLHPLP. This work was partially supported by International Partnership Program of Chinese Academy of Sciences (No. 181231KYSB20170022). And this work is also partially supported by the Key Projects of International Cooperation in Chinese Academy of Sciences.

References

Nuckolls, J. Wood, L. Theissen, A. and Zimmerman, G. Nature 239, 139 (1972).CrossRefGoogle Scholar
Emmett, J. L. Nuckolls, J. and Wood, L. Sci. Amer. 230, 24 (1974).CrossRefGoogle Scholar
Holzrichter, J. F. Nature 316, 309 (1985).CrossRefGoogle Scholar
Haynam, C. A. Wegner, P. J. Auerbach, J. M. Bowers, M. W. Dixit, S. N. Erbert, G. V. Heestand, G. M. Henesian, M. A. Hermann, M. R. Jancaitis, K. S. Manes, K. R. Marshall, C. D. Mehta, N. C. Menapace, J. Moses, E. Murray, J. R. Nostrand, M. C. Orth, C. D. Patterson, R. Sacks, R. A. Shaw, M. J. Spaeth, M. Sutton, S. B. Williams, W. H. Widmayer, C. C. White, R. K. Yang, S. T. and Van Wonterghem, B. M. Appl. Opt. 46, 3276 (2007).CrossRefGoogle Scholar
Vivini, P. and Nicolaizeau, M. Proc. SPIE 9345, 934503 (2015).Google Scholar
Private communication in the 2nd International symposium on High Power Laser Science and Engineering (HPLSE) in 2016.Google Scholar
He, X. T. and Zhang, W. Y. Eur. Phys. J. D 44, 227 (2007).Google Scholar
Deng, X. M. and Yu, W. Y. IEEE J. Quant. Electron. 17, 1650 (1981).CrossRefGoogle Scholar
He, X. T. Deng, X. M. Fan, D. Y. Zhang, X. M. Lin, Z. Q. Wang, N. Y. Zheng, Z. J. and Liu, J. R. Fusion Eng. Design 44, 57 (1999).CrossRefGoogle Scholar
Lin, Z. Q. Deng, X. M. Fan, D. Y. Wang, S. J. Chen, S. H. Zhu, J. Q. Qian, L. J. Shen, X. H. Xu, F. M. Zhu, J. Ma, W. X. Xie, X. L. Zheng, Y. X. Zhang, W. Q. Chen, Q. H. Ling, M. Y. Huang, H. Y. and Zhang, J. Z. Fusion Eng. Design 44, 61 (1999).CrossRefGoogle Scholar
Xiao, G. Y. Fan, D. Y. Wang, S. J. Lin, Z. Q. Gu, Y. Zhu, J. Q. Zhen, Y. X. Zhu, J. Liu, F. Q. Chen, S. H. Chen, Q. H. Huang, G. L. and Deng, X. M. Third International Conference on Solid State Lasers for Application to Inertial Confinement Fusion (1999), p. 890.CrossRefGoogle Scholar
Lin, Z. Q. Wang, S. J. Fan, D. Y. Gu, Y. Zheng, Z. J. Zhu, J. Q. Zhu, J. Cai, X. J. Huang, G. L. Dai, Y. P. and Yang, Y. High Power Laser Part. Beams 14, 403 (2002).Google Scholar
Zhao, Y. Proc. SPIE 3047, 54 (1997).CrossRefGoogle Scholar
Zhu, J. Chin. J. Nature 28, 271 (2006).Google Scholar
He, X. T. J. Phys. Conf. Ser. 688, 012029 (2016).CrossRefGoogle Scholar
Xu, G. Wang, T. Li, Z. Dai, Y. Lin, Z. Gu, Y. and Zhu, J. Rev. Laser Eng. Suppl. 36, 1172 (2008).CrossRefGoogle Scholar
Gao, Y. Cao, Z. Yang, X. Ma, W. Zhu, B. and Lin, Z. in Conference on Lasers and Electro-Optics Pacific Rim (2015), paper 25D2_3.Google Scholar
Zhu, J. Q. Zhu, J. Li, X. Zhu, B. Ma, W. Liu, D. Liu, C. Lu, X. Fan, W. Liu, Z. Zhao, D. Zhou, S. Zhang, Y. Wang, L. Sun, M. Wang, B. Jiao, Z. Ren, L. Zhang, G. Miao, J. and Lin, Z. Proc. SPIE 10084, 1008405 (2017).Google Scholar
Xie, X. Zhu, J. Yang, Q. Kang, J. Zhu, H. Guo, A. Zhu, P. and Gao, Q. Proc. SPIE 9513, 95130A (2015).Google Scholar
Peng, H. S. Zheng, Z. J. Zhang, B. H. Ding, Y. K. Tang, Y. J. Zheng, Y. M. Wen, S. H. Liu, Z. L. Ding, Y. N. Tang, D. Y. Feng, J. Chen, J. B. Cheng, J. X. Mao, W. Y. Lui, S. Y. Jiang, S. E. Qi, L. Y. Qiu, L. H. Yao, S. J. Xu, H. P. Luo, P. Q. Yu, R. Zhang, Y. H. Chen, G. N. Lai, D. X. Zhu, S. P. Zhang, W. Y. Chang, T. Q. and He, X. T. J. Fusion Energy 19, 81 (2000).CrossRefGoogle Scholar
Yang, J. W. Li, T. S. Yi, T. Wang, C. K. Yang, M. Yang, W. M. Liu, S. Y. Jiang, S. E. and Ding, Y. K. Fusion Sci. Technol. 72, 41 (2017).CrossRefGoogle Scholar
Zhong, J. Li, Y. Wang, X. Wang, J. Dong, Q. Xiao, C. Wang, S. Liu, X. Zhang, L. An, L. Wang, F. Zhu, J. Gu, Y. He, X. Zhao, G. and Zhang, J. Nat. Phys. 6, 984 (2010).CrossRefGoogle Scholar
Shu, H. Fu, S. Huang, X. Wu, J. Zhou, H. and Ye, J. Meas. Sci. Technol. 23, 015203 (2012).CrossRefGoogle Scholar
Gu, Y. Zhang, F. Shan, L. Bi, B. Chen, J. Wei, L. Li, J. Song, Z. Liu, Z. Yang, Z. Yu, M. Cui, B. Zhang, Y. Liu, H. Liu, D. Wang, W. Dai, Z. Yang, Y. Yang, L. Zhang, F. Wu, X. Du, K. Zhou, W. Cao, L. Zhang, B. Wu, J. Ren, G. Cai, H. Wu, S. Cao, L. Zhang, H. Zhou, C. and He, X. High Power Laser Part. Beams 27, 110101 (2015).Google Scholar
He, X. T. Cai, H. B. Wu, S. Z. Cao, L. H. Zhang, H. He, M. Q. Chen, M. Wu, J. F. Zhou, C. T. Zhou, W. M. Shan, L. Q. Wang, W. W. Zhang, F. Bi, B. Zhao, Z. Q. Gu, Y. Q. Zhang, B. H. Wang, W. Fang, Z. H. Lei, A. L. Wang, C. Pei, W. B. and Fu, S. Z. Plasma Phys. Control. Fusion 57, 064003 (2015).CrossRefGoogle Scholar
Rhee, Y. J. Nam, S. M. Peebles, J. Sawada, H. Wei, M. Vaisseau, X. Sasaki, T. Giuffrida, L. Hulin, S. Vauzour, B. Santos, J. J. Batani, D. McLean, H. S. Patel, P. K. Li, Y. T. Yuan, D. W. Zhang, K. Zhong, J. Y. Fu, C. B. Hua, N. Li, K. Zhang, Y. Zhu, J. Q. Kim, I. J. Jeon, J. H. Jeong, T. M. Choi, I. W. Lee, H. W. Sung, J. H. Lee, S. K. and Nam, C. H. Laser Part. Beams 34, 645 (2016).CrossRefGoogle Scholar
Yuan, D. Li, Y. Liu, M. Zhong, J. Zhu, B. Li, Y. Wei, H. Han, B. Pei, X. Zhao, J. Li, F. Zhang, Z. Liang, G. Wang, F. Weng, S. Li, Y. Jiang, S. Du, K. Ding, Y. Zhu, B. Zhu, J. Zhao, G. and Zhang, J. Sci. Rep. 7, 42915 (2017).CrossRefGoogle Scholar
Chang, T. Q. Ding, Y. K. Lai, D. X. Huan, T. X. Zhu, S. P. Zheng, Z. J. Wang, G. Y. Zheng, Y. M. He, X. T. Pei, W. B. Duan, Q. S. Zhang, W. Y. Feng, T. G. Chen, G. N. and Gu, P. J. Phys. Plasmas 9, 4744 (2002).CrossRefGoogle Scholar
Zhang, W. Y. and He, X. T. J. Phys. Conf. Ser. 112, 032001 (2008).Google Scholar
Yuan, Y. T. Wang, L. F. Tu, S. Y. Wu, J. F. Cao, Z. R. Zhan, X. Y. Ye, W. H. Liu, S. Y. Jiang, S. E. Ding, Y. K. and Miao, W. Y. Acta Phys. Sin. 63, 235203 (2014).Google Scholar
Jing, L. Li, H. Lin, Z. Li, L. Kuang, L. Huang, Y. Zhang, L. Huang, T. Jiang, S. E. and Ding, Y. Plasma Sci. Technol. 17, 842 (2015).CrossRefGoogle Scholar
Dong, Q. L. Wang, S. J. Lu, Q. M. Huang, C. Yuan, D. W. Liu, X. Lin, X. X. Li, Y. T. Wei, H. G. Zhong, J. Y. Shi, J. R. Jiang, S. E. Ding, Y. K. Jiang, B. B. Du, K. He, X. T. Yu, M. Y. Liu, C. S. Wang, S. Tang, Y. J. Zhu, J. Q. Zhao, G. Sheng, Z. M. and Zhang, J. Phys. Rev. Lett. 108, 215001 (2012).CrossRefGoogle Scholar
Yuan, D. Wu, J. Li, Y. Lu, X. Zhong, J. Yin, C. Su, L. Liao, G. Wei, H. Zhang, K. Han, B. Wang, L. Jiang, S. Du, K. Ding, Y. Zhu, J. He, X. Zhao, G. and Zhang, J. Astrophys. J. 815, 46 (2015).CrossRefGoogle Scholar
Zhu, Y. Su, Q. Chen, G. and Dai, L. Sci. Technol. Rev. 3, 30 (2012).Google Scholar
Pile, D. Nat. Photon. 5, 644 (2011).CrossRefGoogle Scholar
Shu, H. Huang, X. Pan, H. Ye, J. Zhang, F. Jia, G. Fang, Z. Tu, Y. Xie, Z. and Fu, S. Int. J. Fract. 206, 81 (2017).CrossRefGoogle Scholar
Zhao, Y. Yang, J. Zhang, J. Yang, G. Wei, M. Xiong, G. Song, T. Zhang, Z. Bao, L. Deng, B. Li, Y. He, X. Li, C. Mei, Y. Yu, R. Jiang, S. Liu, S. Ding, Y. and Zhang, B. Phys. Rev. Lett. 111, 155003 (2013).Google Scholar
Jiang, S. E. Ding, Y. K. Liu, S. Y. Zhang, B. H. Zheng, Z. J. Yang, J. M. Miao, W. Y. Huang, T. X. Zhang, J. Y. Li, S. W. and Cao, L. F. Wuli 39, 531 (2010).Google Scholar
Shang, W. L. Zhang, W. H. Yu, R. Z. Zhu, T. Wang, F. Yang, J. M. Liu, S. Y. and Jiang, S. E. Phys. Plasmas 24, 072707 (2017).CrossRefGoogle Scholar
Yang, J. Li, T. Yi, T. Wang, C. Yang, M. Yang, W. Liu, S. Jiang, S. and Ding, Y. Plasma Sci. Technol. 18, 1044 (2016).CrossRefGoogle Scholar
Danson, C. Hillier, D. Hopps, N. and Neely, D. High Power Laser Sci. Eng. 3, e3 (2015).CrossRefGoogle Scholar
Shan, L. Q. Cai, H. B. Zhang, W. S. Tang, Q. Zhang, F. Song, Z. F. Bi, B. Ge, F. J. Chen, J. B. Liu, D. X. Wang, W. W. Yang, Z. H. Qi, W. Tian, C. Yuan, Z. Q. Zhang, B. Yang, L. Jiao, J. L. Cui, B. Zhou, W. M. Cao, L. F. Zhou, C. T. Gu, Y. Q. Zhang, B. H. Zhu, S. P. and He, X. T. Phys. Rev. Lett. 120, 195001 (2018).CrossRefGoogle Scholar
Fan, W. Jiang, Y. Wang, J. Wang, X. Li, G. Y. Wei, H. Huang, D. Lu, X. Pan, X. Qiao, Z. Wang, C. Chen, H. Zhang, P. Wen, F. H. Xiao, Z. L. Zhang, S. J. Li, X. C. Zhu, J. and Lin, Z. High Power Laser Sci. Eng. 6, e34 (2018).CrossRefGoogle Scholar
Hu, L. Chen, S. Tang, J. Wang, B. Meng, T. Chen, W. Wen, L. Hu, J. Li, S. Xu, Y. Jiang, Y. Zhang, J. and Jiang, Z. High Power Laser Sci. Eng. 2, e1 (2014).CrossRefGoogle Scholar
Zhang, J. Wu, D. Zheng, J. Zheng, K. Zhu, Q. and Zhang, X. Proc. SPIE 9294, 92940N (2014).Google Scholar
Shao, J. Yi, K. and Zhu, M. Proc. SPIE 9983, 998308 (2016).Google Scholar
Guo, A. Zhu, H. Yang, Z. Tang, S. Xie, X. and Zhu, J. Acta Opt. Sin. 33, 0311001 (2013).Google Scholar
Jiang, W. Zhang, Y. Rao, C. Ling, N. Guan, C. Li, M. Yang, Z. and Shi, G. Acta Opt. Sin. 31, 0901006 (2011).CrossRefGoogle Scholar
Zhao, D. Wan, L. Lin, Z. Shao, P. and Zhu, J. High Power Laser Sci. Eng. 3, e7 (2015).CrossRefGoogle Scholar
Ouyang, X. Cui, Y. Zhu, J. Zhu, B. and Zhu, J. Appl. Opt. 55, 7538 (2016).CrossRefGoogle Scholar
Liu, C. Ji, L. Yang, L. Zhao, D. Zhang, Y. Liu, D. Zhu, B. and Lin, Z. Appl. Opt. 55, 2800 (2016).CrossRefGoogle Scholar
Tang, Q. Yang, L. Guo, Y. Ouyang, X. Tang, S. and Zhu, B. Chin. J. Lasers 40, 0905006 (2013).Google Scholar
Zeng, P. Liu, D. Peng, Z. Tang, X. Ji, T. Zhu, B. Liu, D. and Zhu, J. Chin. J. Lasers 41, 0302009 (2014).Google Scholar
Zeng, P. Tang, X. Yang, X. Ji, T. Jiang, M. Zhu, B. Zhu, J. Liu, D. and Shen, L. High Power Laser Part. Beams 24, 2595 (2012).CrossRefGoogle Scholar
Gao, Y. Cui, Y. Li, H. Gong, L. Lin, Q. Liu, D. Zhu, B. Ma, W. Zhu, J. and Lin, Z. Opt. Laser Technol. 100, 87 (2018).CrossRefGoogle Scholar
Wang, Y. Y. Gao, Y. Q. Zhu, H. D. Lu, X. H. Zhang, J. Y. Guo, Y. J. Hui, H. C. and Zhu, B. Q. Acta Phys. Sin. 62, 055201 (2013).Google Scholar
Huang, W. F. Wang, J. F. Lu, X. H. and Li, X. C. Laser Phys. 23, 035804 (2013).Google Scholar
Ren, Z. Zhu, J. Liu, Z. and Yang, X. High Power Laser Sci. Eng. 6, e1 (2018).CrossRefGoogle Scholar
Wang, B. Zhang, J. Shi, S. You, K. and Zhu, J. High Power Laser Sci. Eng. 4, e9 (2016).CrossRefGoogle Scholar
Zhang, J. Zhang, Y. Ma, W. Zhu, J. Liu, D. A. Yang, L. Zhu, J. and Lin, Z. Acta Opt. Sin. 35, 0414004 (2015).Google Scholar
Li, Y. Zhu, J. Wu, Y. Jiao, X. and Pang, X. Proc. SPIE 9621, 96210Z (2015).Google Scholar
Ren, Z. and Zhu, J. Proc. SPIE 8551, 855109 (2012).Google Scholar
Liu, F. Zhu, J. Xu, J. Shan, Q. Xiao, K. and Zhang, X. Chin. Opt. Lett. 10, 041402 (2012).Google Scholar
Jiao, Z. Shao, P. Zhao, D. Wu, R. Ji, L. Wang, L. Xia, L. Liu, D. Zhou, Y. Ju, L. Cai, Z. Ye, Q. Qiao, Z. Hua, N. Li, Q. Pan, W. Ren, L. Sun, M. Zhu, J. and Lin, Z. High Power Laser Sci. Eng. 6, e14 (2018).CrossRefGoogle Scholar
Casey, D. T. Milovich, J. L. Smalyuk, V. A. Clark, D. S. Robey, H. F. Pak, A. MacPhee, A. G. Baker, K. L. Weber, C. R. Ma, T. Park, H.-S. Döppner, T. Callahan, D. A. Haan, S. W. Patel, P. K. Peterson, J. L. Hoover, D. Nikroo, A. Yeamans, C. B. Merrill, F. E. Volegov, P. L. Fittinghoff, D. N. Grim, G. P. Edwards, M. J. Landen, O. L. Lafortune, K. N. MacGowan, B. J. Widmayer, C. C. Sayre, D. B. Hatarik, R. Bond, E. J. Nagel, S. R. Benedetti, L. R. Izumi, N. Khan, S. Bachmann, B. Spears, B. K. Cerjan, C. J. Gatu Johnson, M. and Frenje, J. A. Phys. Rev. Lett. 115, 105001 (2012).Google Scholar
Zhang, Y. Li, G. Fan, W. Wang, X. Jiang, Y. and Shi, Z. Laser Optoelectron. Prog. 53, 081405 (2016).Google Scholar
He, D. Kang, S. Zhang, L. Chen, L. Ding, Y. Yin, Q. and Hu, L. High Power Laser Sci. Eng. 5, e1 (2017).CrossRefGoogle Scholar
Zhang, G. W. Lu, X. Q. Cao, H. B. Yin, X. H. Lu, F. N. Zhang, Z. Li, J. H. Wang, R. G. Ma, W. X. and Zhu, J. Acta Phys. Sin. 61, 024201 (2012).Google Scholar
Zhang, P. Jiang, Y. Wang, J. Fan, W. Li, X. and Zhu, J. High Power Laser Sci. Eng. 5, e23 (2017).Google Scholar
Wang, C. Wei, H. Jiang, Y. Wang, J. Qiao, Z. Guo, J. Fan, W. and Li, X. Chin. Opt. Lett. 14, 121402 (2016).Google Scholar
Wang, J. F. Li, X. C. Wei, H. and Zhu, J. Q. Chin. Phys. Lett. 25, 524 (2008).CrossRefGoogle Scholar
Huang, D. Fan, W. Li, X. and Lin, Z. Proc. SPIE 8556, 855615 (2012).Google Scholar
Liu, D. Z. Zhu, J. Q. Xu, R. F. and Fan, D. Y. Opt. Eng. 43, 2066 (2004).CrossRefGoogle Scholar
Tang, S. Guo, Y. Liu, D. Yang, L. Jiang, X. Peng, Z. and Zhu, B. High Power Laser Sci. Eng. 6, e5 (2018).CrossRefGoogle Scholar
Pan, X. Veetil, S. P. Liu, C. Tao, H. Jiang, Y. Lin, Q. Li, X. and Zhu, J. Laser Phys. Lett. 13, 055001 (2016).CrossRefGoogle Scholar
Wang, H. Liu, C. He, X. Pan, X. Zhou, S. Wu, R. and Zhu, J. High Power Laser Sci. Eng. 2, e25 (2014).Google Scholar
Tao, H. Veetil, S. P. Pan, X. Liu, C. and Zhu, J. Chin. Opt. Lett. 14, 071203 (2016).Google Scholar
Zhao, D. Wu, R. Lin, Z. Wang, L. and Zhu, J. Proc. SPIE 9237, 92371V (2014).Google Scholar
Guo, Y. Tang, S. Jiang, X. Peng, Y. Zhu, B. and Lin, Z. High Power Laser Sci. Eng. 2, e21 (2014).CrossRefGoogle Scholar
Hui, H. Zhang, J. Lu, X. Zhang, J. Chen, X. Jiang, X. Zhu, B. and Lin, Z. Chin. Opt. Lett. 14, 031405 (2016).Google Scholar
Hao, Y. F. Sun, M. Y. Guo, Y. J. Shi, S. Pan, X. Pang, X. Y. and Zhu, J. Q. Opt. Express 26, 8791 (2018).CrossRefGoogle Scholar
Ren, L. Shao, P. Zhao, D. Zhou, Y. Cai, Z. Hua, N. Jiao, Z. Xia, L. Qiao, Z. Wu, R. Ji, L. Liu, D. Ju, L. Pan, W. Li, Q. Ye, Q. Sun, M. Zhu, J. and Lin, Z. High Power Laser Sci. Eng. 6, e10 (2018).Google Scholar
Zhang, D. Qian, L. Yuan, P. Zhu, H. Wen, S. and Xu, C. Opt. Lett. 33, 1969 (2008).CrossRefGoogle Scholar
Zhu, J. Xie, X. Sun, M. Kang, J. Yang, Q. Guo, A. Zhu, H. Zhu, P. Gao, Q. Liang, X. Cui, Z. Yang, S. and Lin, Z. High Power Laser Sci. Eng. 6, e29 (2018).CrossRefGoogle Scholar
Zhu, P. Xie, X. L. Kang, J. Yang, Q. W. Zhu, H. D. Guo, A. L. Sun, M. Z. Gao, Q. Cui, Z. R. Liang, X. Yang, S. H. Zhang, D. J. and Zhu, J. Q. High Power Laser Sci. Eng. 6, e8 (2018).CrossRefGoogle Scholar

Full text views

Full text views reflects PDF downloads, PDFs sent to Google Drive, Dropbox and Kindle and HTML full text views.

Total number of HTML views: 537
Total number of PDF views: 507 *
View data table for this chart

* Views captured on Cambridge Core between 16th November 2018 - 23rd April 2021. This data will be updated every 24 hours.

You have Access
Open access
