        The steady-state crystal size of deforming ice
        Available formats
        ×

        Send article to Dropbox

        To send this article to your Dropbox account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Dropbox.

        The steady-state crystal size of deforming ice
        Available formats
        ×

        Send article to Google Drive

        To send this article to your Google Drive account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Google Drive.

        The steady-state crystal size of deforming ice
        Available formats
        ×
Export citation

Abstract

Previous studies have established that, together with the development of a preferred crystal-orientation fabric in ice undergoing creep deformation to high strains, there also develops a tertiary equilibrium crystal size, i.e. the crystal size, rather than affecting the creep rate, is a result of the deformation to large strains.

Equilibrium crystal size is considered here as a “balance” between crystal growth with time as a function of temperature and crystal change as a result of temperature dependent deformation. The temperature effects in these two processes (Arrhenius relation) are similar and consideration of the activation energies for the two processes indicates that it may be appropriate to cancel them, yielding a dependence of equilibrium crystal size on stress alone. The results from laboratory experiments of steady-state crystal size plotted as a function of stress support the above proposition.

The possibility of using the relationships between steady-state crystal size and deviatoric stress as a polar ice-mass piezometer is discussed.

Background

It is well established that for polycrystalline ice under no (or very low) stress, the crystal size increases with time at a rate dependent on the temperature (Stephenson, 1967; Gow, 1969, 1970; Budd, 1972; Gow and Williamson, 1976, for Antarctic ice; Herron, 1982, for Greenland ice; Seligman, 1949, 1950; Kamb, 1964, for laboratory observations). Results from deep ice cores collected from Byrd Station, Antarctica (Gow and Williamson, 1976), Dome C, Antarctica (Duval and Lorius, 1980), Vostok, Antarctica (Korotkevich and others, 1978), Law Dome, Antarctica (Young and others, 1985) and Camp Century, Greenland (Herron, 1982) indicate that the increase in crystal size with time and depth can be disturbed by other factors. Several explanations have been offered for these observed crystal-size variations (Paterson, 1981), and Petit and others (1987) examined the possibility of using the ice-core crystal-size variation as an indicator of past climatic temperatures. Gow and Williamson (1976) proposed that increased shear deformation could have inhibited the expected crystal growth. The results from Cape Folger, Antarctica, given by Russell-Head and Budd (1979), also show a relation between ice deformation and crystal size varying through the ice-core depth. More recently, marked crystal-size variations have been noted in the new deep ice cores, e.g. at Dye 3, Greenland (Fisher and Koerner, 1986) and at DSS on Law Dome, Antarctica (Li and Jacka, 1994). These crystal-size variations have been associated with the contemporaneous preferred crystal-orientation fabric development and with zones of high shear in the ice sheets.

For laboratory ice-deformation experiments to strain sin excess of ˜15%, it has been observed that, together with the development of a crystal-orientation fabric pattern (which depends on the stress configuration), there are also systematic changes in the mean crystal size, leading to an equilibrium crystal size at high strains (Jacka and Maccagnan, 1984). Jacka (1984) found that the change in mean crystal size could involve a decrease (if the initial crystal size was larger than the equilibrium crystal size) or an increase (if the initial crystal size was smaller than the equilibrium crystal size). Gao and Jacka (1987) further studied this equilibrium crystal-size development. They found that the equilibrium crystal size seemed dependent only on the deformation-test parameters (temperature, stress, stress configuration). It was independent of (i) whether the test specimen was laboratory-prepared or cut from an ice core drilled from a natural ice mass, (ii) whether the ice was initially isotropic or initially anisotropic, although this affected the amount of strain required for the development of the equilibrium size, or (iii) the initial crystal size. Gao and Jacka concluded that, together with the attainment of a constant tertiary strain rate (for constant-stress experiments), the establishment of an unchanging preferred crystal-orientation fabric pattern and an unchanging equilibrium crystal size was indicative of steady-state ice flow.

It is interesting to note that similar results to those outlined above were found by Steinemann (1958).Crystal sizes in tertiary creep were determined as a function of stress and temperature by Steinemann for high stresses. In this paper, we use some already published results and some new results to examine further the dependence of steady-state tertiary crystal size on temperature and stress.

Some authors (see, for example, the review by Paterson (1991)) have proposed that the presence of impurities (both soluble and insoluble) may inhibit crystal growth in natural ice masses. It should be noted that this proposition is not examined in this paper

A Theoretical Approach

Observations from surface snow, firn and ice cores have shown that in the absence of non-hydrostatic stress, the crystal linear dimension D will increase with time t at a temperature θ-dependent rate estimated by the relation (Stephenson, 1967; Gow, 1969, 1970):

where D 0 is an initial crystal linear dimension, K 0=1.86 × 10-2mm2 a1 at 17°C, and the form of f(θ) is discussed later. It follows immediately that the crystal growth rate (the increase in average crystal area within across-section of a sample of polycrystalline ice) under little or no deviatoric stress can be expressed in the form:

(1)

For ice that is subject to a non-hydrostatic stress, the relationship between strain rate and deviatoric stress on individual crystals of polycrystalline ice has the same form as that for the bulk sample (Weertman, 1983) and can be written:

(2)

where τ is the deviatoric stress.

The observations indicate that, in steady-state tertiary creep, the crystal size remains constant while the sample deforms. It is therefore hypothesized that the rate of change of crystal size due to strain is balanced by change due to differential crystal growth or grain-boundary migration. Therefore, equating dD/dt from Equations (1) and (2), and designating the equilibrium linear dimension D e,

(3)

f1(θ) has the form (usually referred to as the Arrheniusrelation):

(4)

where Q′ is the activation energy for crystal growth and R is the gas constant.

Equation (2) is an expression for the crystallographic strain rate. The temperature-dependence of this flow law also obeys the Arrhenius relation (Glen, 1955), i.e.

(5)

where Q″ is the activation energy for ice creep and n is a power-law constant, usually considered equal to 3 for ice in the stress and temperature range under consideration.

From Equation (3), then

(6)

It might therefore be expected firstly that at any specified temperature,

(7)

and secondly, that if the activation energies for the two processes are similar, the term

will be near I and the temperature dependence on the equilibrium steady-state crystal size will be small.

Weertman (1973) observed that the activation energies for these two processes were similar. We now investigate this similarity in more detail with some new data, particularly at temperatures near the melting point.

The Activation Energies For Creep And For Crystal Growth

Activation energies for ice creep at an octahedral stress of 0.1 MPa have been presented by Budd and Jacka (1989)for the temperature range -0.05° to -50°C. Further ice-creep data at the same stress have been presented since then (Morgan, 1991), from which we can estimate activation energies at temperatures higher than -1°C.

While these data are at one stress of 0.1 MPa, Budd and Jacka (1989) showed in addition that the minimum strain rate versus temperature plots are parallel, therefore resulting in the same activation energies, over a large range of stress.

Table 1 shows the calculation of ice-creep activation energies from a set of data compiled from Budd and Jacka (1989) and Morgan (1991). The activation energy is calculated (e.g. Poirier, 1985) by

(8)

where 1 and 2 are steady-state creep (or crystal-growth)rates at two similar temperatures, T 1 and T 2(K), and k = 1.38 ✗ 10-23 J mole-1K-1 is Boltzmann’s constant. Usually, in order to obtain the energy per mole, k is replaced by R (the gas constant) where R = kN and N= 6.024 ✗ 1023 is Avogadro’s number. Thus, R = 8.31.1 J mole-l K-1.

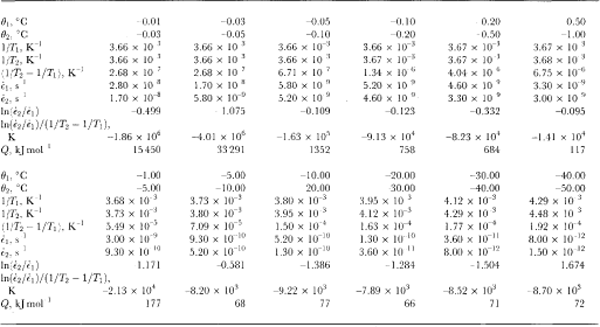

Table 1 Calculation of activation energy for ice creep at minimum strain rate

These calculations have been carried out in Table 1 for minimum isotropic creep rates. Minimum creep rates are not steady-state. It seems, however, over a wide range of temperature and stress, that the steady-state tertiary creep is related to the minimum creep rate (for a given stress configuration) by a constant enhancement factor (e.g. Budd and Jacka, 1989). Thus, the activation energies in steady-state tertiary creep will be similar to those at minimum.

Li (1994) has carried out a set of laboratory tests to examine ice-crystal growth (under no stress) over the temperature range -0.1°to -5.0°C. Li's test samples were both laboratory-prepared (Jacka and Lilc, 1984) and cut from an Antarctic ice core. Samples were placed in a plastic bag which was then immersed in a silicon oil bath with accurate temperature control. After different time intervals (ranging from days to months), samples were removed, thin sections cut, then replaced for a further time. Thin sections were measured for crystal-size and growth rates calculated for the range of temperatures. Li's calculation of activation energies for crystal growth are shown in Table 2. Also shown in Table 2 are calculations of crystal-growth activation energies for temperatures down to -60°C. These calculations are based on smooth curves through the field data (shown in Figure 1) of Li(1994) and Gow (1969).

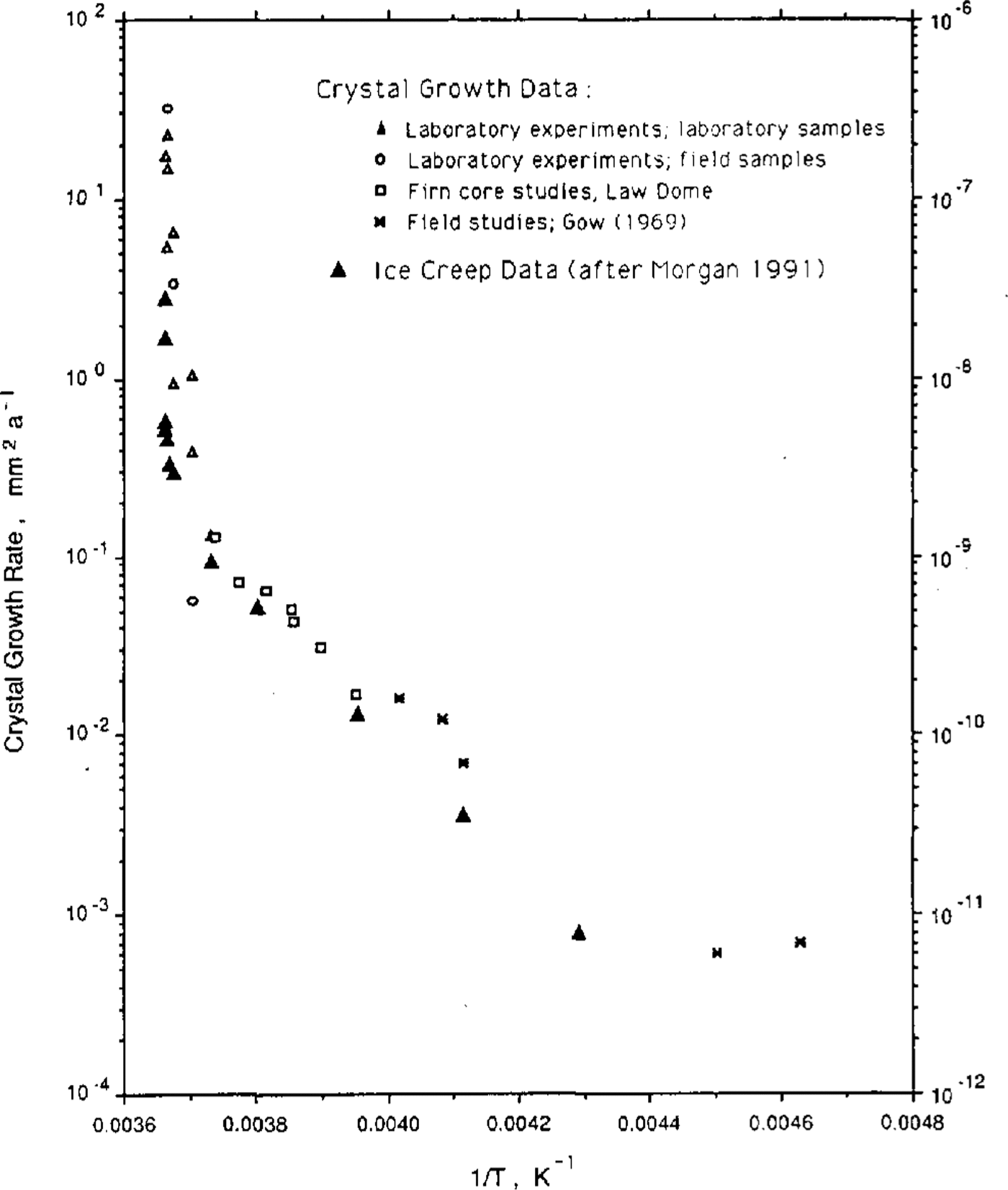

Fig.1 Ice-Crystal growth rates (after Gow (1969) and Li(1994)) and creep rates (after Morgan (1991)) as a function of the inverse of the temperature (K) for a range of laboratory and field experiments.

Li (1994) also examined some field data from Law Dome, Antarctica, and from Gow's (1969, 1970) work. The agreement between the laboratory and the field data is excellent and both are shown in Figure 1, a plot of crystal-growth rate as a function of 1/T where T is ice temperature (K). To compare the shape of the curves, minimum strain rate (after Morgan, 1991) is plotted on the same scale. The similarity of these two data sets, neither of which has been subjected to any smoothing, is remarkable.

Figure 2 is a plot of the two activation energies, also as a function of 1/T. It is seen that the activation energies for the two processes, ice-crystal growth and ice creep appear, over this temperature range, to be particularly similar. It remains now to test the hypothesis that equilibrium steady-state crystal size is a function of stress alone.

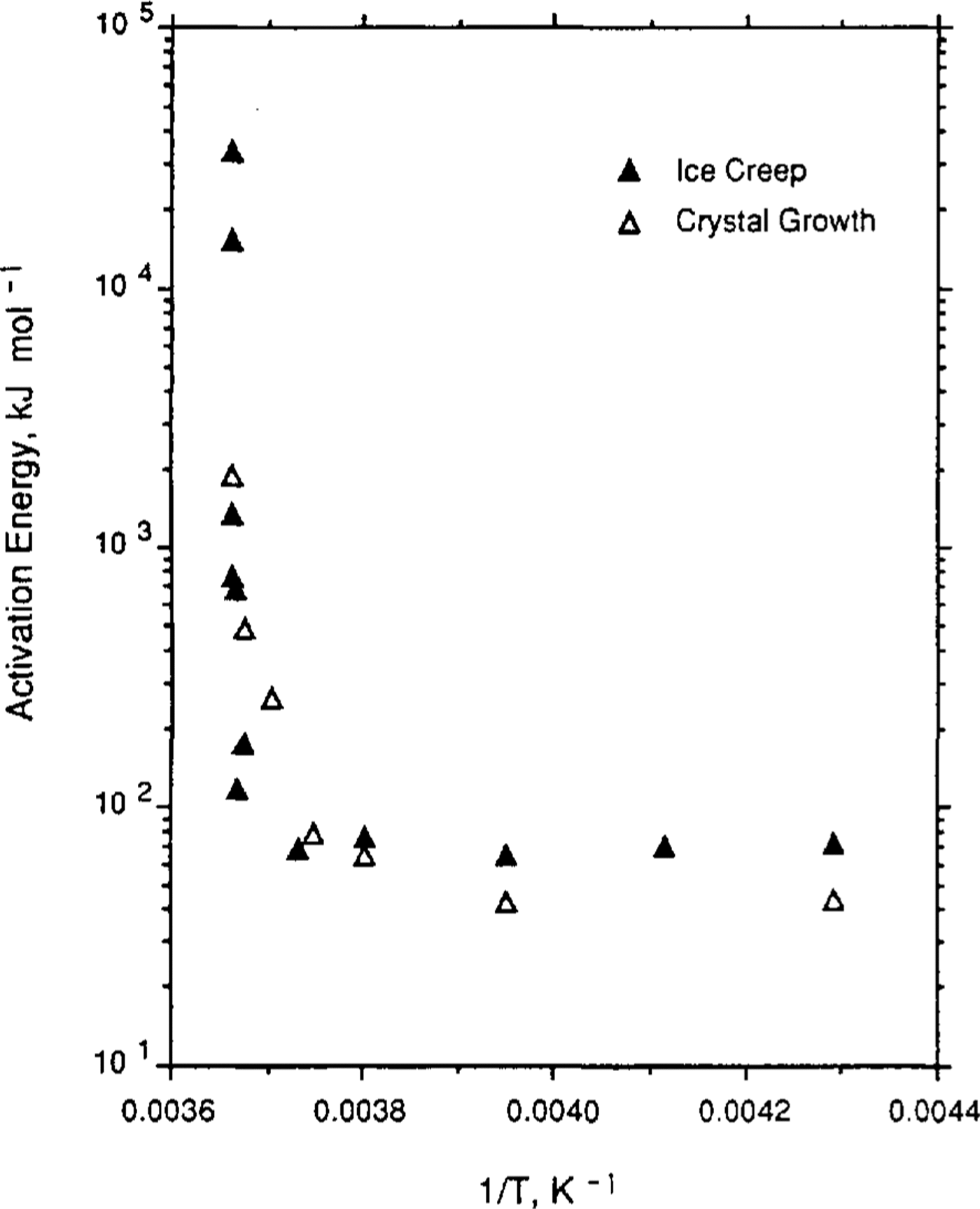

Fig.2 Activation energy for the two processes, ice-crystal growth and ice creep, as a function of the inverse of the temperature (K).

Table 2 Calculation of activation energy for ice-crystal growth

Table 3. Equilibrium stead)i-state crystal size for a range of temperatures, octahedral shear stresses, steady-statetertiary strain rates and initial crystal sizes

References:

  1. This study.

  2. Jacka and Maccagnan (1984)

  3. Gao and Jacka (1987); Law Dome ice-core samples

  4. Gao and Jacka (1987); laboratory-prepared samples

Steady-State Crystal Size As A Function Of Stress

Table 3 shows steady-state crystal sizes achieved from several ice-deformation tests carried out in uniaxial compression over a range of stresses and temperatures. For each of these (constant-stress) tests, the total strain exceeded 15% and a constant tertiary creep rate (also shown in Table 3) was achieved. A preferred crystal orientation fabric (for compression, a small-circle girdle pattern) was established for each test.

Figure 3 is a plot on log scales of the square of the equilibrium crystal diameter (from the data of Table 3) as a function of the octahedral shear stress applied for each test. The straight line of Figure 3 has been drawn with a slope of -3. From the plot, there does not appear to be any trend with temperature (over the range -0.10 to-10.0°C) which is indicated by different symbols. Although the variability in the measure of crystal size is large, the plot provides strong support for the dependence of steady-state crystal size on stress alone. Furthermore, the data provide some support for the hypothesized relationship:

Fig.3 Fig.3. The square of the equilibrium steady-state crystal diameter, De, as a function of the octahedral shear stress for a range of ice-creep tests at several different temperatures. The straight line has been drawn with a slope of -3.

However, it is clear from the plot that more data are required to test fully the above relationship. In particular, data are required for crystal sizes greater than ˜10mm2 (requiring lower stresses and therefore extremely long times to attain steady-state ice flow) and for crystal sizes less than ˜0.2 mm2 (i.e. so small that size measurement is particularly difficult). It is expected that the imminent introduction of automatic computer-controlled and microscope-based ice-crystal thin-section analysers will all eviate the problems encountered in the routine and consistent measurement of crystal size.

With the exception of some early work by Steinemann(1958), to these authors’ knowledge, a dependence of crystal size on deviatoric stress has not previously been established for ice. However, this phenomenon is not new with respect to other crystalline materials. The relationship

where D is linear crystal dimension, τ is applied stress and r is a constant, has been found for a range of materials, e.g. quartzite, olivine, dunite, pyrite, halite and nickel(Poirier, 1985), where ˜1.0 ≤ r ≤ ˜1.5. These values of r compare with r = n/2 = 1.5 found here for ice.

On the potential use of steady-state crystal size as a Piezometer

The existence of a relationship between crystal size and stress raises the possibility that crystal size might be useful as an indicator of the deviatoric stress within polar ice masses. While in-situ stress is not able to be directly measured, crystal size is measured routinely in the deep ice cores (e.g. Gow and Williamson, 1976; Herron, 1982; Li and Jacka, 1994).

Of course, it needs to be recognized that ice in the natural ice masses is not always steady-state and therefore that a relation such as that found here will not be applicable throughout the depth. In the firn layers, where the stress is near zero, the crystal-growth rate has been described by Gow (1969, 1970). This relation also holds in the deep bedrock layers of near-stagnant (i.e. low-stressor, sometimes, stress-relaxation) ice at warmer temperatures where, on occasions, extremely large crystals have been found in ice cores down to bedrock. At intermediate depths, the ice is subject to changing stress, changing stress-configuration and changing temperature as it progresses deeper into the ice sheet. This is evidenced, for example, by variations in crystal-orientation fabric through the deep ice cores. However, the rate of change of these parameters is particularly slow, occurring over hundreds of years, and it must be said therefore that the ice throughout most of the depth of the polar ice sheets is in near-steady-state creep. For most of the depth, therefore, a relationship such as that found here between steady-state crystal size and deviat oric stress may provevaluable. Further work continues on this topic and will be published elsewhere.

Conclusions

On the basis of observations from field and laboratory studies, it is known that ice-crystal size is a result of deformation to high strains. Crystal size seems to be independent of the structural (crystal size and orientation) or deformational (stress, stress-configuration and strain-rate) history. Rather, it is a product of the in-situ contemporaneous conditions.

Under no stress, the mean ice-crystal size increases at a rate dependent on temperature. If a stress is applied, the crystal growth is modified and at large strains, as the ice attains steady-state creep, an equilibrium crystal size is reached. This equilibrium steady-state mean crystal size is considered as a "balance" between the growth as a function of temperature and the deformation due to strain. This approach reveals a dependence of equilibrium crystal size on the ratio of the temperature effects, i.e. of the activation energies for the two processes – ice crystal growth and ice creep. The temperature-dependence for ice creep has been examined by several authors and is now well understood. Similarly, the temperature dependence for ice-crystal growth is well understood. Recent observations of both these processes at temperatures nearer to the melting point (-2.0° to > -0.1 °C), where crystal-growth/deformation rates are higher, have now made it possible to compare these processes in more detail. It appears from the data that the activation energies (i.e. the temperature-dependence) for the two processes are similar. Therefore, that the dependence of steady-state crystal size on temperature is small, and that crystal size is a function of deviatoric stress alone. Furthermore,

where n is the power-law constant. The value of n has also been the subject of much study and is generally accepted to have a value of 3. The experimental data of steady-state crystal size as a function of stress provides support for this relation. A dependence similar to that above, of crystal size on stress, is known for other crystalline minerals and values of r for these minerals have generally been found empirically to be in the same range as found here for ice.

The use of crystal size in natural ice masses as a piezometer may prove particularly valuable as a glaciological tool for investigations of the dynamics of the polar ice sheets. This is the subject of investigations currently in progress.

The accuracy of references in the text and in this list is the responsibility of the authors, 10 whom queries should be addressed.

References

Budd, W.F.. 1972. The development of crystal orientation fabrics inmoving ice. ʐ. Gletsrherkd. Glazialgeol. 8(1–2), 65105.
Budd, W.F. and Jacka, T.H.. 1989. A review of ice rheology for ice sheet modelling. Cold Reg. Sci. Technol., 16(2), 107114.10.1016/0165-232X(89)90014-1
Duval, P. and Lorius, C.. 1980. Crystal size and climatic record down to the last ice age from Antarctic ice. Earth Plallet. Sci. Lett., 48, 5964.10.1016/0012-821X(80)90170-3
Fisher, D.A. and Koerner, R.M.. 1986. On the special rheological properties of ancient microparticle-laden Northern Hemisphere ice as derived from bore-hole and core measurements. ⁈. Glaciol., 32(112), 501510.10.1017/S0022143000012211
Gao, X.Q. and Jacka, T. II. 1987. The approach to similar tertiary creep rates for Antarctic core ice and laboratory prepared ice. ⁈ Phys. (Paris), 48, Colloq. C1, 289296. (Supplément au 3.)
Gle, J.W.. 1955. The creep of polycrystalline ice. Proc. R. Soc. London. Ser. A. 228(1175) 519538
Gow, A.J.. 1969. On the rates of growth of grains and crystals in south polar firn. ⁈. Glaciol.. 8(53) 241252.10.1017/S0022143000031233
Gow, A.J.. 1970. Deep core studies of the crystal structure and fabrics of Antarctic glacier ice. CRREL Res. Rep. 282.
Gow, A.J. and Williamson, T.. 1976. Rheological implications of the internal structure and crystal fabrics of the West Antarctic ice sheet as revealed by deep core drilling at Byrd Station. CRREL Rep. 7635
Herron, S.L.. 1982. Physical properties of the deep ice core from Camp Century, Greenland. (Ph.D. thesis, State university of New York at Buffalo.)
Jacka, T.H.. 1984. Laboratory studies on relationships between ice crystal size and flow rate. Cold Reg. Sci. Technol. 10(1), 3142.10.1016/0165-232X(84)90031-4
Jacka, T.H. and Lile, R.C.. 1984. Sample preparation techniques and compression apparatus for ice flow studies. Cold Reg. Sci. Technol., 8(3), 235240.10.1016/0165-232X(84)90054-5
Jacka, T.H. and Maccagnan, M.. 1984. Ice crystallographic and strain rate changes with strain in compression and extension. Cold Reg. Sci. Technol., 8(3), 269286 10.1016/0165-232X(84)90058-2
Kamb, W.B.. 1964. Glacier geophysics. Science, 146(3642), 353365 10.1126/science.146.3642.353
Korotkevich Ye, S., Petrov, V.N., Barkov, N.I., Suchonosova, L.I., Dmitriev, D.N. and Portnov, V.G.. 1978. The results of Antarctic ice sheet vertical structure studies near Vostok Station. Information Bulletin of the Soviet Antarctic Expedition, 97, 135148
Jun, Li. 1994. Interrelation between flow properties and crystal structure of snow and ice. (Ph.D. thesis, University of Melbourne.)
Jun, Li and Jacka, T.H.. 1994. The crystallography of the 1,200 m DSSicc core, Law Dome. East Antarctica. Antarctic GRG Research Report.
Morgan, V.I.. 1991. High-temperature ice creep tests. Cold Reg. Sci.Technol., 19(3), 295300.10.1016/0165-232X(91)90044-H
Paterson, W.S.B.. 1981. The physics of glaciers. Second edition. Oxford, etc., Pergamon Press.
Paterson, W.S.B.. 1991. Why ice-age ice is sometimes soft. Cold Reg. Sci.Technol., 20(1), 7598.10.1016/0165-232X(91)90058-O
Petit, J.R., Duval, P. and Lorius, C.. 1987. Long-term climatic changes indicated by crystal growth in polar ice. Nature, 326(6108). 6264 10.1038/326062a0
Poirier, J.-P.. 1985. Creep of Crystal. Cambridge, Cambridge University Press 10.1017/CBO9780511564451
Russell-Head, D.S. and Budel, W.F.. 1979. Ice-sheet flow properties derived from bore-hole shear measurements combined with ice-corestudies. ⁈. Glaciol., 24(90), 117130.10.1017/S0022143000014684
Seligman, C.. 1949. The growth of the glacier crystal. J. Glaciol., 1(5), 254267.10.1017/S0022143000009886
Seligman, G.. 1950. The growth of the glacier crystal. Some further notes. ⁈. Glaciol., 1(7), 379381
Steinemann, S.. 1958. Resultats experirnentaux sur la dynamique de laglace et leurs correlations avec le mouvement et la petrographie deglaciers. International Association of Hydrological Sciences Publication 47(1UGG/lASH Symposium of Chamonix), 184198
Stephenson, P.J.. 1967. Some considerations of snow metamorphism in the Antarctic ice sheet in the light of the ice crystal studies. In Ōura, H. ed. Physics of snow and ice. Institute of Low Temperature Science, Hokkaido University, 1, 725740
Weertman, J.. 1973. Creep of ice. In Whalley, E.., Jones, S.J. and Gold, L. W., eds. Physics and chemistry of ice. Ottawa, Royal Society of Canada, 320337.
Weertman, J.. 1983. Creep deformation of ice. Ann. Rev. Earth Planet. Sci. 11, 215240 10.1146/annurev.ea.11.050183.001243
Young, N.W. Xie, Zicho and Qin, Dahe. 1985. Multilayer crystallographic structure of 11,215 240. Law Dome from ice core analysis. In Jacka, T.H. ed. Australian glaciological research, 1982 1983 ANARE Research Notes. 28, 1821
